40A50230IT - W128173108

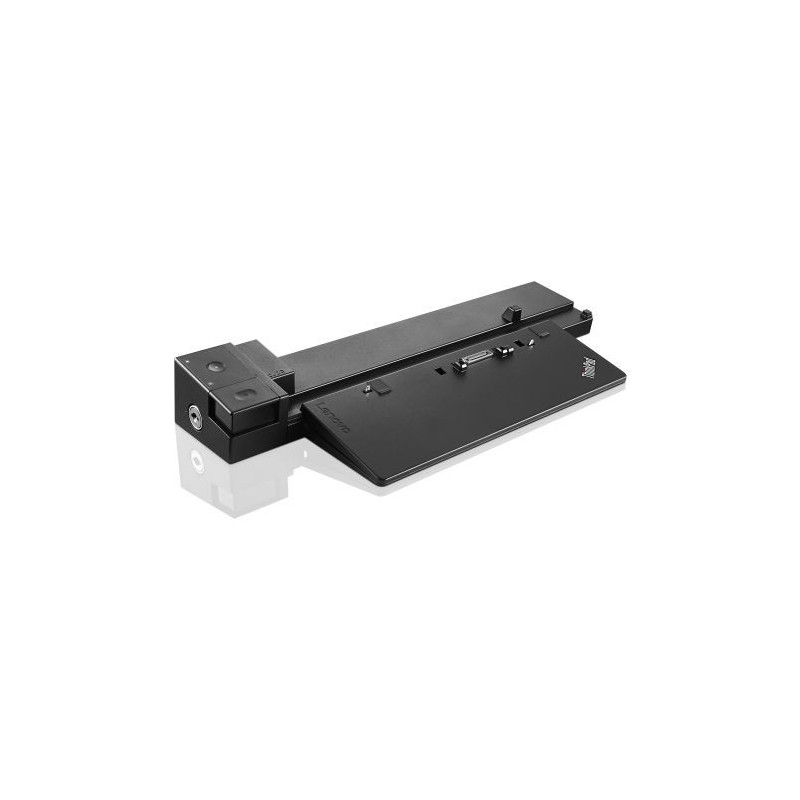

The completely redesigned and supercharged ThinkPad Workstation Dock with included ThinkPad 230W AC adapter enhances your work capability with multiple connectivity options. As the ultimate multi-port docking solution, the ThinkPad Workstation Dock includes a range of video outputs, including HDMI 1.4, and DP 1.2 to support multiple external monitors delivering outstanding driver free video quality.

With an enlarged support base, the Workstation Dock can accommodate both P50 and P70 mobile workstation notebooks. It comes with 6x USB 3.0 ports, one of which supports always-on USB charging to charge your tablet or mobile device without even needing to connect your ThinkPad notebook. The other USB 3.0 ports are ideal for connecting memory sticks, external storage devices and other productivity accessories as needed. Additional ports on the ThinkPad Workstation dock include a 10/1000 Gigabit Ethernet connection, 2x display 1.2 ports, 1x DVI-D port, 1x HDMI 1.4 port, 1x stereo/mic combo audio port and 1x VGA port. The dock comes with a 230W AC adapter to power and charge your mobile workstation notebook.

Features and Benefits:
- 6 x USB 3.0, one supports always-on USB charging
- 10/1000 Gigabit Ethernet, supports eterprise manageability
- 2 x DisplayPort 1.2
- 1 x DVI-D
- 1 x HDMI 1.4
- 1 x VGA
- 1 x Stereo/Mic Combo Audio Port
- Driver-free, perfect video quality
- Security Lock conveniently secures both your notebook and your dock to your desk with a single key
- Physical rear alignment for a perfect dock every time
- Smaller desktop footprint vs Series 3 docking stations
- Comes with ThinkPad AC adapter (230W)

Lenovo 40A50230IT. Connectivity technology: Docking. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, Certification: AS/NZS S-DOC, VCCI, BSMI, KCC, NOM, GOST, CB, CE, UkrSEPRO, EC-DoC, UL, FCC. Power source type: DC. Width: 15.8" (402.2 mm), Depth: 6.51" (165.4 mm), Height: 2.19" (55.6 mm)

Connectivity technology	Docking
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
HDMI ports quantity	1
Microphone in	No
Headphone outputs	0
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	2
DVI-D ports quantity	1
Combo headphone/mic port	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Product color	Black
Card reader integrated	No
Cable lock slot	Yes
Certification	AS/NZS S-DOC, VCCI, BSMI, KCC, NOM, GOST, CB, CE, UkrSEPRO, EC-DoC, UL, FCC
Power source type	DC
Operating temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Width	15.8" (402.2 mm)
Depth	6.51" (165.4 mm)
Height	2.19" (55.6 mm)
Weight	34.6 oz (980 g)
AC adapter included	Yes
