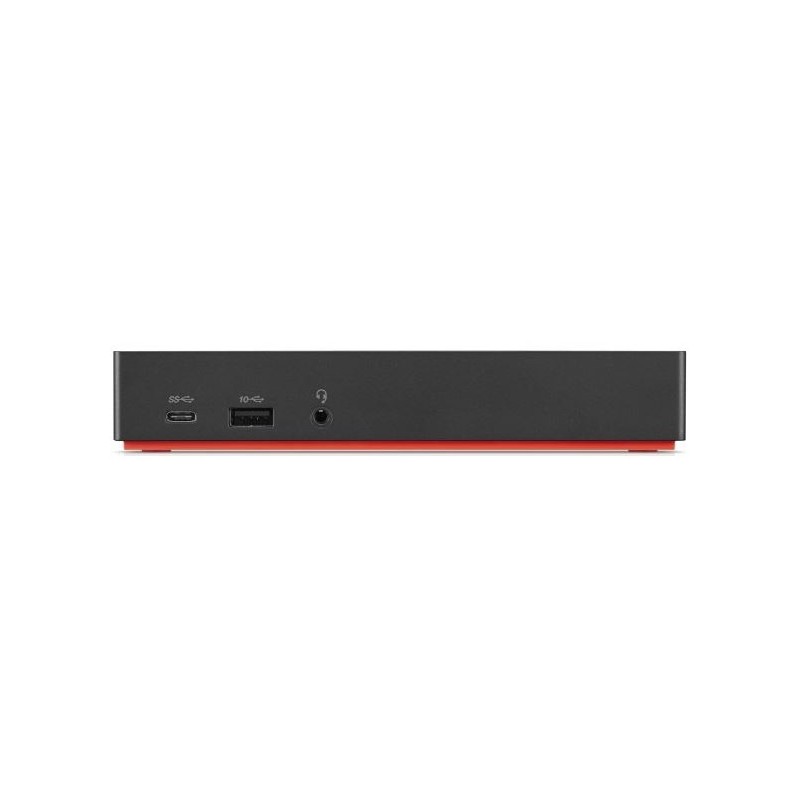

40AS0090SA - W128173011

Data sheet

Brand compatibility

Lenovo

Compatibility

ThinkPad T490 (20N2, 20N3, 20Q9, 20QH), ThinkPad T590 (20N4, 20N5), ThinkPad X280 (20KE,20KF), ThinkPad T480 (20L5,20L6), ThinkPad X1 Carbon 6th (20KH, 20KG), ThinkPad X270 (20HM, 20HN, 20K5, 20K6), ThinkPad T480s (20L7,20L8)

Product color

Black

Windows operating systems supported

Windows 10, Windows 7

Quantity per pack

1 pc(s)

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI ports quantity

1

Microphone in

No

Headphone outputs

0

DisplayPorts quantity

2

Combo headphone/mic port

Yes

Headphone connectivity

3.5 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Card reader integrated

No

Cable lock slot

Yes

Weight

11.5 oz (325 g)

HD type

4K Ultra HD

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

AC input frequency

50 - 60 Hz

Plug and Play

Yes

Width

6.73" (171 mm)

Height

1.21" (30.8 mm)

Power source type

DC

Data transfer rate

10 Gbit/s

AC input voltage

100 - 240 V

Certification

FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM

Depth

3.15" (80 mm)

Package weight

33.9 oz (960 g)

Package width

8.27" (210 mm)

Package depth

6.22" (158 mm)

Package height

2.95" (75 mm)

HDMI version

2.0

Maximum digital resolution

3840 x 2160 pixels

Power supply

90 W

Operating temperature (T-T)

0 - 35 °C

Operating relative humidity (H-H)

20 - 95%

AC adapter included

Yes

Wake-on-LAN ready

Yes

Cables included

AC, USB Type-C

Number of displays supported

3

Manual

Yes

Specific References

UPC

193124916477

EAN13

0193124916477

MPN

40AS0090SA
