40A40090EU - 607493

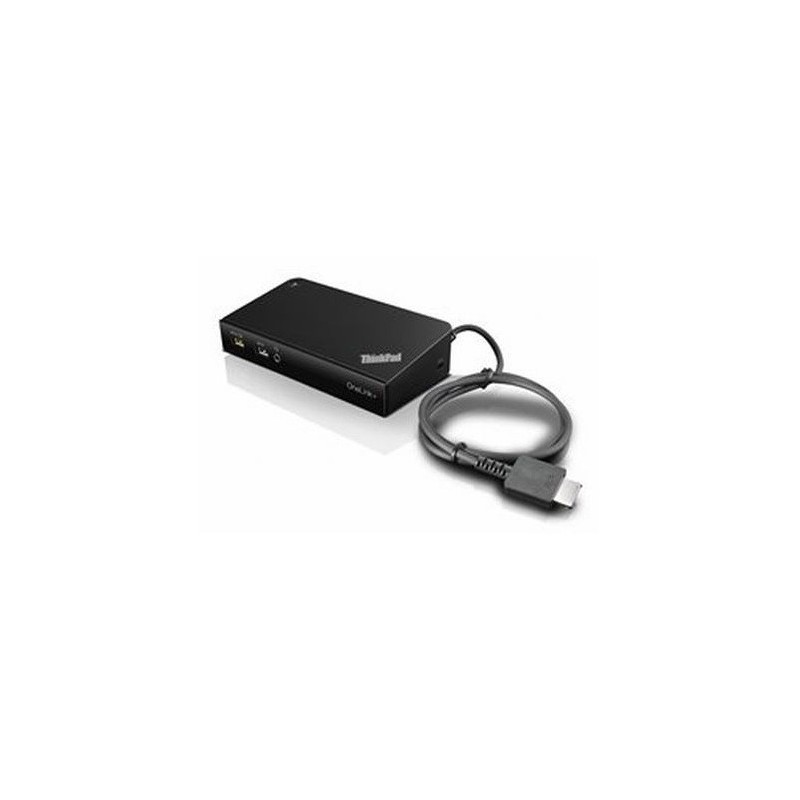

The ThinkPad OneLink+ Dock, powered by Lenovo’s revolutionary OneLink+ technology, transforms your new ThinkPad into a full-featured machine for the office or at home. Not only does the new convenient OneLink+ connector deliver super-fast data transfers with USB 3.0 and up to Ultra High Definition (UHD) video, but it also charges your notebook, mobile phone and tablet while you work or play!

Unlike USB docks, the OneLink+ Dock delivers video with no compression, no drivers and no impact on image quality and notebook performance. Simply connect your notebook with the ThinkPad OneLink+ Dock to connect to power, the Internet and workplace accessories through a convenient single connector. Expect nothing short of outstanding value with connections for two external displays, a keyboard, mouse and printer. It also comes with a ThinkPad 90 W slim-tip AC adapter.

The docking station is equipped with a stereo/microphone combination audio port and two USB 3.0 ports on the front panel, with one of these being an "always (power) on" port for mobile device charging. In addition, the rear panel has two USB 2.0 ports and two USB 3.0 ports, enabling maximum device connectivity. The OneLink+ Dock also comes with a 10/1000 Gigabit Ethernet port, one VGA port and two DisplayPort 1.2 ports for up to three video outputs* with a maximum resolution of 4K2K**. For security, the dock can be secured via a cable lock.

With all these great features, the ThinkPad OneLink+ Dock actually takes up less desk space than other typical docking stations!

Features and Benefits:
- A single OneLink+ cable enables all docking functions while delivering continuous power, allowing you to boost your productivity in no time
- Up to 4k video output allows you to enjoy a vivid video experience with your brand new ThinkPad Ultrabook
- Power button on the dock mirrors the system power button
- Gigabit Ethernet (10/100/1000) with Boot over LAN support on selected systems***

Compatible Systems:
ThinkPad Yoga 260

Lenovo 40A40090EU. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, Maximum digital resolution: 3840 x 2160 pixels, Brand compatibility: Lenovo. Power source type: DC

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	0
Microphone in	No
Headphone outputs	0
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	2
Combo headphone/mic port	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Product color	Black
Card reader integrated	No
Maximum digital resolution	3840 x 2160 pixels
Cable lock slot	Yes
Brand compatibility	Lenovo
Compatibility	ThinkPad Yoga 260
Power source type	DC
AC adapter included	Yes
