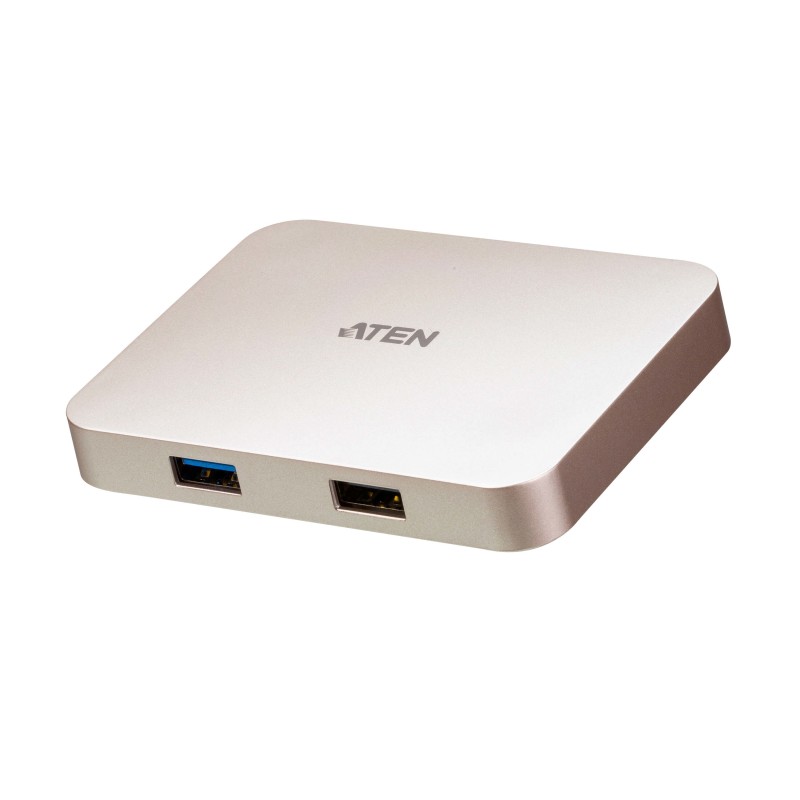

UH3235-AT - UH3235-AT

The UH3235 is a 4-in-1 multifunctional USB-C mini dock that features a USB 2.0 Type-A, USB 3.1 Gen 1 Type-A, HDMI and a USB-C DC-in port. With its wide range of compatibility, the UH3235 can support different operation systems such as PC, Mac, iPad Pro, Android Smartphone, and USB-C game console.

The HDMI supports up to 4K (3840 x 2160 @ 30 Hz) crystal clear video output that will bring users a higher level of enjoyment from watching videos, playing video games, or working from home. The UH3235 also supports USB-C Power Delivery Pass-Through up to 60W, which means it can provide power to your device via a USB-C PD power adapter with the PD profile specifications of 5V, 9V, 15V, 20V.

In addition, the integrated USB 3.1 Gen 1 Type-A port supports data transfer rate up to 5Gbps, giving seamless access to USB flash drive. The USB 2.0 Type-A port is for keyboard/mouse connection and can also avoid signal interference.

With highly portable and lightweight design, users can bring UH3235 anywhere and maintain necessary connection capability with just one cable. This is a perfect solution to maximize the functionality for your smart device.

ATEN UH3235. Host interface: USB 2.0 Type-C, USB Power Delivery up to: 60 W. Product color: Rose Gold, Hub interfaces: HDMI, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Housing material: Plastic. Weight: 2.89 oz (82 g). Package width: 1.38" (35 mm), Package depth: 4.92" (125 mm), Package height: 7.09" (180 mm). Quantity per master (outer) case: 20 pc(s), Master (outer) case width: 10.3" (262 mm), Master (outer) case length: 14.8" (375 mm)

Host interface	USB 2.0 Type-C
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery	Yes
USB Power Delivery revision	2.0
USB Power Delivery up to	60 W
Product color	Rose Gold
Hub interfaces	HDMI, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Housing material	Plastic
Certification	RoHS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight	2.89 oz (82 g)
Package width	1.38" (35 mm)
Package depth	4.92" (125 mm)
Package height	7.09" (180 mm)
Package weight	5.47 oz (155 g)
Quantity per master (outer) case	20 pc(s)
Master (outer) case width	10.3" (262 mm)
Master (outer) case length	14.8" (375 mm)
Master (outer) case height	7.99" (203 mm)
Master (outer) case weight	7.98 lbs (3.62 kg)
Master (outer) case net weight	3.62 lbs (1.64 kg)
Harmonized System (HS) code	84719000
Cable length	19.7" (0.5 m)
