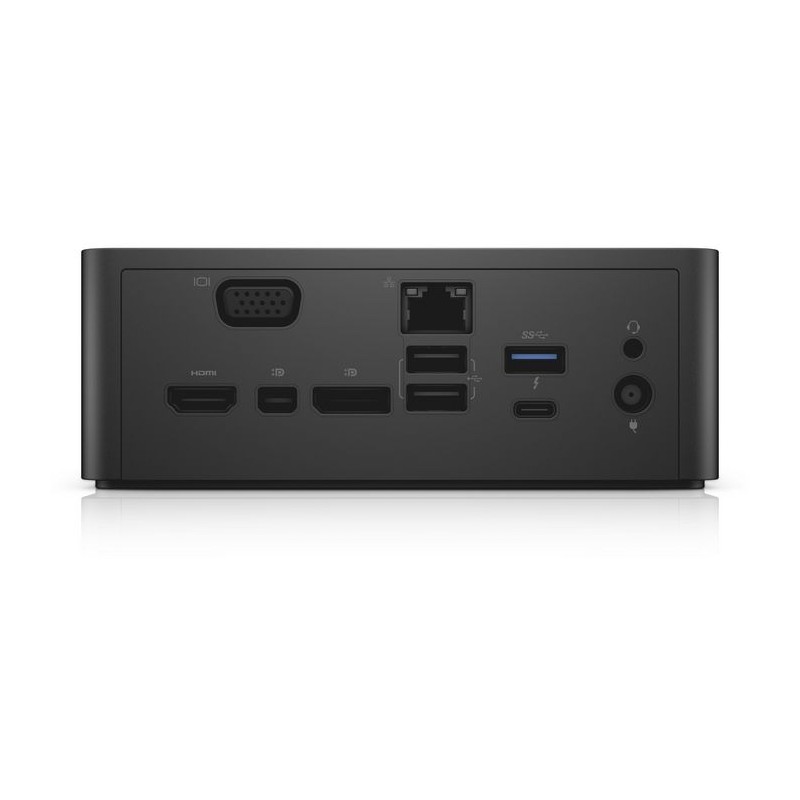

TBDOCK-180W - 0TBDOCK-180W

One dock. One cable. Ultimate Performance.
The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.

Small footprint and big flexibility
The Dell Thunderbolt™ Dock TB16 -180W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.

One source for power
The Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power.

Connections and Features:
- Supports 3 displays
- Two USB 2.0 ports;
- Three USB 3.0 ports;
- Thunderbolt 3 (USB-C) port;
- Speaker output (rear);
- Combo audio (front);
- Gigabit Ethernet;
- Kensington Lock Slot;
- 7.4 mm DC-IN Power Input.

Overview
The Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace.

DELL TB16. Connectivity technology: Wired, Host interface: Thunderbolt 3, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, Cable lock slot type: Kensington, Brand compatibility: Dell. Power source type: AC, Power consumption (max): 180 W. Width: 5.71" (145 mm), Depth: 5.71" (145 mm), Height: 2.01" (51 mm)

Connectivity technology	Wired
Host interface	Thunderbolt 3
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	1
Microphone in	No
Headphone outputs	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	1
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
Line-out	Yes
USB connector type	USB Type-A, USB Type-C
DC-in jack	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Product color	Black
Card reader integrated	No
Cable lock slot	Yes
Cable lock slot type	Kensington
LED indicators	Yes
Brand compatibility	Dell
Compatibility	XPS 13 (9350) XPS 15 (9550) XPS 12 (9250) Precision 15 7000 Series (7510) Precision 17 7000 Series (7710) Precision 15 3000 Series (3510) Precision 15 5000 Series (5510) XPS 13 (9360) XPS 9560 Precision 5520 Precision 3520
Power source type	AC
Power consumption (max)	180 W
Windows operating systems supported	Yes
Width	5.71" (145 mm)
Depth	5.71" (145 mm)
Height	2.01" (51 mm)
Weight	25.4 oz (720 g)
Cables included	Thunderbolt
AC adapter included	Yes
Manual	Yes
Harmonized System (HS) code	84733020
