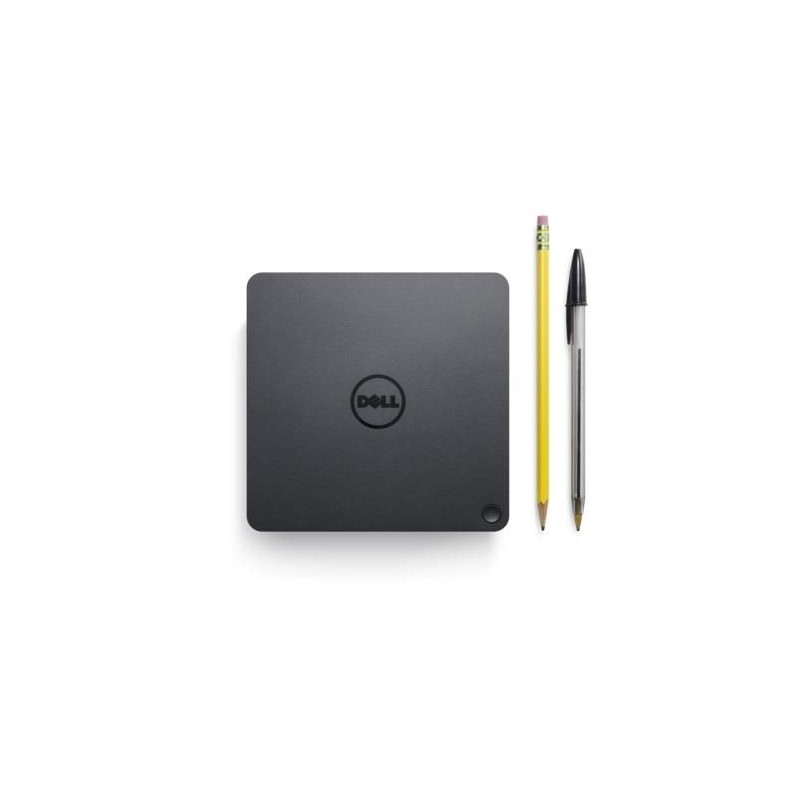

452-BCOY - TBDOCK-180W GP17G, 0452-BCOY
180 W, 2 x USB 2.0, 3 x USB 3.0, Gigabit Ethernet, 1 x Thunderbolt 3 (USB-C)
Description
One dock. One cable. Ultimate Performance.
The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.
Small footprint and big flexibility
The Dell Thunderbolt™ Dock TB16 -180W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.
One source for power
The Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power.
Connections and Features:
- Supports 3 displays
- Two USB 2.0 ports;
- Three USB 3.0 ports;
- Thunderbolt 3 (USB-C) port;
- Speaker output (rear);
- Combo audio (front);
- Gigabit Ethernet;
- Kensington Lock Slot;
- 7.4 mm DC-IN Power Input.
Overview
The Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace.
The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.
Small footprint and big flexibility
The Dell Thunderbolt™ Dock TB16 -180W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.
One source for power
The Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power.
Connections and Features:
- Supports 3 displays
- Two USB 2.0 ports;
- Three USB 3.0 ports;
- Thunderbolt 3 (USB-C) port;
- Speaker output (rear);
- Combo audio (front);
- Gigabit Ethernet;
- Kensington Lock Slot;
- 7.4 mm DC-IN Power Input.
Overview
The Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace.
Specifications
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
Packaging content
| AC adapter included | Yes |
| Cables included | USB Type-C |
| Manual | Yes |
Performance
| Brand compatibility | Dell |
| Card reader integrated | No |
| Compatibility | Precision 15 3000 Series (3510)/Precision 15 5000 Series (5510)/Precision 15 7000 Series (7510)/Precision 17 7000 Series (7710)/Precision 3520/Precision 5520/XPS 12 (9250)/XPS 13 (9350)/XPS 13 (9360)/XPS 15 (9550)/XPS 9560 |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Combo headphone/mic port | Yes |
| Connectivity technology | Wired |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Host interface | Thunderbolt 3 |
| Line-out | Yes |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB connector type | USB Type-A/USB Type-C |
| VGA (D-Sub) ports quantity | 1 |
Power
| Power consumption (max) | 180 W |
| Power source type | AC |
Software
| Windows operating systems supported | Yes |
Vendor information
| Brand Name | Dell |
| Warranty | 1 |
Product Details
TBDOCK-180W GP17G, 0452-BCOY
1 Item
New
Data sheet
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Anzahl der HDMI-Anschlüsse
- 1
- Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-A Anschlüsse
- 3
- Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-C Anschlüsse
- 1
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- DisplayPorts Menge
- 1
- Inklusive Netzteil
- Yes
- Anzahl der USB 2.0-Anschlüsse
- 2
- Output
- Yes
- LED-Anzeigen
- Yes
- Handbuch
- Yes
- Kabel enthalten
- USB Type-C
- Ethernet-LAN
- Yes
- Konnektivitätstechnologie
- Wired
- Stromquellentyp
- AC
- Kartenleser integriert
- No
- Kombinierter Kopfhörer-/Mikrofonanschluss
- Yes
- Kopfhöreranschluss
- 3.5 mm
- Stromverbrauch (max.)
- 180 W
- Kopfhörerausgänge
- 1
- USB-Anschlusstyp
- USB Type-A/USB Type-C
- Anzahl der VGA (D-Sub) Anschlüsse
- 1
- Brand Name
- Dell
- Warranty
- 1
- Unterstützte Windows-Betriebssysteme
- Yes
- Kompatibilität
- Precision 15 3000 Series (3510)/Precision 15 5000 Series (5510)/Precision 15 7000 Series (7510)/Precision 17 7000 Series (7710)/Precision 3520/Precision 5520/XPS 12 (9250)/XPS 13 (9350)/XPS 13 (9360)/XPS 15 (9550)/XPS 9560
- Markenkompatibilität
- Dell
- Host-Schnittstelle
- Thunderbolt 3
- Produktfarbe
- Black
- Thunderbolt 3 Ports Menge
- 1
- Mini DisplayPorts Menge
- 1
Specific References
- EAN13
- 4058154161791
- MPN
- 452-BCOY
