K35234EU

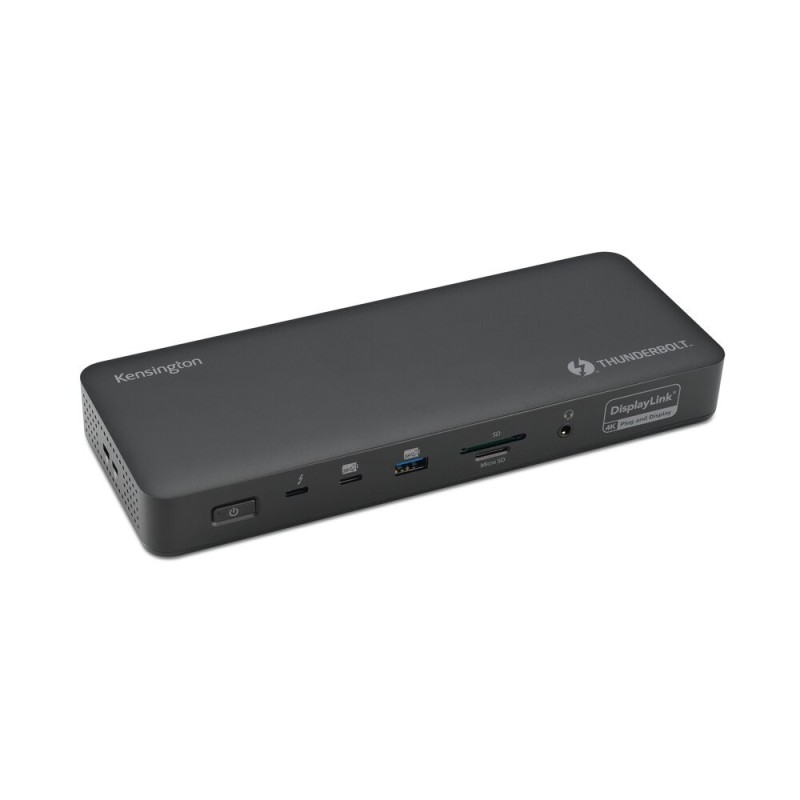

IT professionals working in mixed technology environments often require versatile docking solutions to optimise productivity. For users who need to manage multiple tasks simultaneously such as software developers, graphic designers or data analysts, having the capability to connect up to four external displays is essential. The SD5920T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is designed to meet these needs, providing a seamless connection for both Thunderbolt™ and USB-C® devices. This high-speed dock supports stunning Quad 4K video output across Windows, macOS and ChromeOS and enhances workflow efficiency by allowing users to multitask effortlessly.

Quad 4K Video Output
Supports up to Quad 4K @ 60Hz for Thunderbolt™ 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink®. Provides flexible video connections (HDMI®, DP and TB4) without the need for cumbersome adapters. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.

Universal Compatibility
A quick and powerful solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).

Recycled Materials
The SD5920T is composed of 100% post-consumer recycled (PCR) aluminium* and is delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.

Thunderbolt™ 4 Hybrid Technology
Transfers up to 40Gbps of data, video , and audio. Provides daisy chain support for SSDs, monitors , and other Thunderbolt™ devices. Blocks peripheral devices from unauthorised access to system memory using Intel VT-d DMA protection.

Up to 100W Charging (96W certified)
Charges any Thunderbolt™ 4, Thunderbolt™ 3, USB4® or USB-C® laptop, while also providing power to any connected USB-C® or USB4® accessories, including phones, tablets and watches. Includes KonstantCharge™, enabling connected devices to charge even when your host device is undocked.

Productive 16-in-1 Design
16 ports deliver expanded connectivity options. Includes 1 x Thunderbolt™ host port and 2 x Thunderbolt™ 4 downstream ports capable of data, video and audio, 1 x USB-C® 3.2 Gen2 10Gbps, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x HDMI®/DP, 1 x DP, 1 x 3.5mm combo audio jack, 1 x SD Card reader, 1 x Micro SD Card reader and 1 x 2.5Gbps Ethernet.

Security Cable Lock Slots
Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.

Kensington SD5920T EQ. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product color: Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 40 Gbit/s. Power source type: DC, AC input voltage: 100 - 240 V, Input current: 2.5 A. Windows operating systems supported: Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro,..., Mac operating systems supported: Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Other operating systems supported: ChromeOS

Connectivity technology	Wired
Host interface	Thunderbolt 4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	2
Headphone outputs	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery	Yes
USB Power Delivery up to	96 W
DisplayPorts quantity	3
Thunderbolt 4 ports quantity	2
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
DC-in jack	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Product color	Black
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	40 Gbit/s
HD type	8K Ultra HD
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	4
Cable lock slot	Yes
Cable lock slot type	Kensington, Nano
On/off switch	Yes
LED indicators	Yes
Plug and Play	Yes
Housing material	Aluminum, Plastic
Country of origin	Vietnam
Power source type	DC
AC input voltage	100 - 240 V
Input current	2.5 A
Output voltage	21 V
Output current	7.1 A
Windows operating systems supported	Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Other operating systems supported	ChromeOS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-18 - 60 °C
Operating relative humidity (H-H)	0 - 55%
Width	88.6" (2250 mm)
Depth	3.35" (85 mm)
Height	0.866" (22 mm)
Weight	21.2 oz (600 g)
Quantity per pack	1 pc(s)
Package width	9.53" (242 mm)
Package depth	4.25" (108 mm)
Package height	3.94" (100 mm)
Package weight	2.62 lbs (1.19 kg)
Cables included	AC, Thunderbolt
AC adapter included	Yes
Quick start guide	Yes
Compliance certificates	CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA
Quantity per shipping (inner) case	6 pc(s)
