WL40-550BL18 - 1039504
Neomounts WL40-550BL18, 7.87 x 3.94" (200 x 100 mm), 31.5 x 15.7" (800 x 400 mm), -3 - 15°, 0 - 54°, Steel, Black
Description

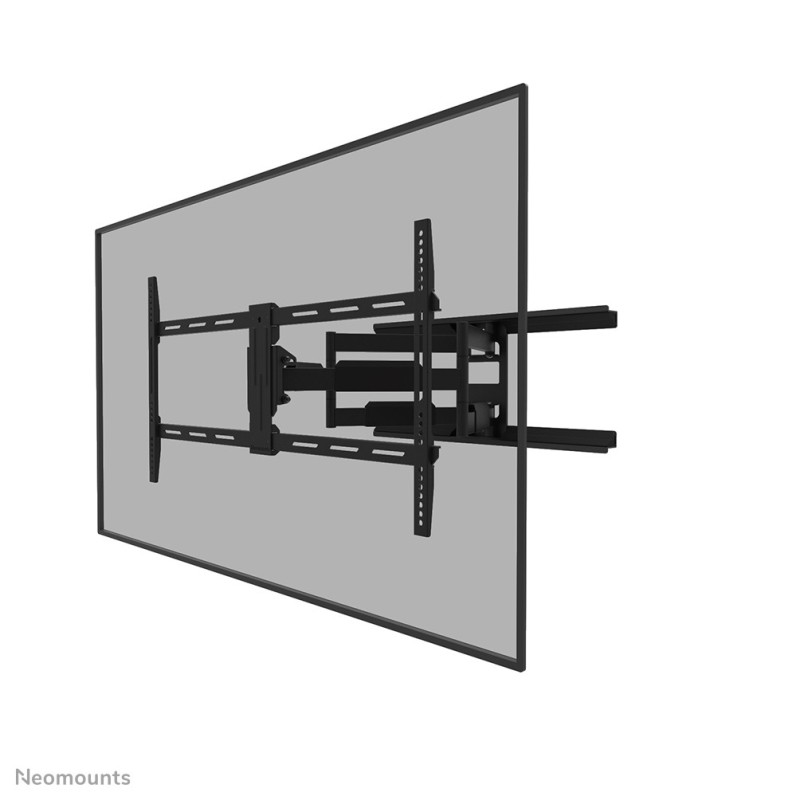

The Neomounts WL40-550BL18 LEVEL is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.
The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Neomounts WL40-550BL18. Maximum weight capacity: 99.2 lbs (45 kg), Minimum screen size: 43", Maximum screen size: 75", Minimum VESA mount: 7.87 x 3.94" (200 x 100 mm), Maximum VESA mount: 31.5 x 15.7" (800 x 400 mm). Tilt angle range: -3 - 15°, Swivel angle range: 0 - 54°, Angle of rotation: 6°, Distance to the wall (min): 2.17" (5.5 cm), Distance to the wall (max): 28" (71 cm). Product color: Black
The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.
The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Neomounts WL40-550BL18. Maximum weight capacity: 99.2 lbs (45 kg), Minimum screen size: 43", Maximum screen size: 75", Minimum VESA mount: 7.87 x 3.94" (200 x 100 mm), Maximum VESA mount: 31.5 x 15.7" (800 x 400 mm). Tilt angle range: -3 - 15°, Swivel angle range: 0 - 54°, Angle of rotation: 6°, Distance to the wall (min): 2.17" (5.5 cm), Distance to the wall (max): 28" (71 cm). Product color: Black
| Number of displays supported | 1 |
| Maximum screen size | 75" |
| Mounting type | Wall |
| Maximum weight capacity | 99.2 lbs (45 kg) |
| Minimum VESA mount | 7.87 x 3.94" (200 x 100 mm) |
| Maximum VESA mount | 31.5 x 15.7" (800 x 400 mm) |
| Minimum screen size | 43" |
| Panel mounting interface | 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400,300 x 200,400 x 300,200 x 100,350 x 350,400 x 200,200 x 150 |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -3 - 15° |
| Swiveling | Yes |
| Swivel angle | 54° |
| Swivel angle range | 0 - 54° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Cable management | Yes |
| Type | Full motion |
| Distance to the wall (max) | 28" (71 cm) |
| Distance to the wall (min) | 2.17" (5.5 cm) |
| Product color | Black |
| Housing material | Steel |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Width | 33.5" (850 mm) |
| Depth | 2.17" (55 mm) |
| Height | 17.2" (436 mm) |
| Weight | 21.8 lbs (9.9 kg) |
| Package width | 34.7" (882 mm) |
| Package depth | 13.4" (340 mm) |
| Package height | 2.56" (65 mm) |
| Package weight | 25.8 lbs (11.7 kg) |
| Master (outer) case width | 35.5" (902 mm) |
| Master (outer) case length | 5.71" (145 mm) |
| Master (outer) case height | 14.2" (360 mm) |
| Master (outer) case weight | 52.9 lbs (24 kg) |
| Master (outer) case net weight | 48.7 lbs (22.1 kg) |
| Quantity per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Quantity per EUR-pallet | 40 pc(s) |
| Package net weight | 25.8 lbs (11.7 kg) |
| Lockable | Not lockable |
Product Details
1039504
22 Items
New
Data sheet
- Type
- Full motion
- Product color
- Black
- Quantity per pack
- 1 pc(s)
- Weight
- 21.8 lbs (9.9 kg)
- Harmonized System (HS) code
- 7326909890
- Width
- 33.5" (850 mm)
- Height
- 17.2" (436 mm)
- Country of origin
- China
- Depth
- 2.17" (55 mm)
- Package weight
- 25.8 lbs (11.7 kg)
- Maximum weight capacity
- 99.2 lbs (45 kg)
- Height adjustment
- No
- Master (outer) case width
- 35.5" (902 mm)
- Master (outer) case length
- 5.71" (145 mm)
- Master (outer) case height
- 14.2" (360 mm)
- Master (outer) case weight
- 52.9 lbs (24 kg)
- Quantity per master (outer) case
- 2 pc(s)
- Package width
- 34.7" (882 mm)
- Package depth
- 13.4" (340 mm)
- Package height
- 2.56" (65 mm)
- Number of displays supported
- 1
- Housing material
- Steel
- Mounting kit
- Yes
- Maximum screen size
- 75"
- Quantity per EUR-pallet
- 40 pc(s)
- Mounting type
- Wall
- Tilt angle range
- -3 - 15°
- Tilt adjustment
- Yes
- Minimum screen size
- 43"
- Cable management
- Yes
- Minimum VESA mount
- 7.87 x 3.94" (200 x 100 mm)
- Maximum VESA mount
- 31.5 x 15.7" (800 x 400 mm)
- Panel mounting interface
- 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400,300 x 200,400 x 300,200 x 100,350 x 350,400 x 200,200 x 150
- Swivel angle
- 54°
- Angle of rotation
- 6°
- Swiveling
- Yes
- Swivel angle range
- 0 - 54°
- Master (outer) case net weight
- 48.7 lbs (22.1 kg)
- Rotating
- Yes
- Package net weight
- 25.8 lbs (11.7 kg)
- Distance to the wall (max)
- 28" (71 cm)
- Distance to the wall (min)
- 2.17" (5.5 cm)
- Lockable
- Not lockable
Specific References
- EAN13
- 8717371448769
- MPN
- WL40-550BL18
