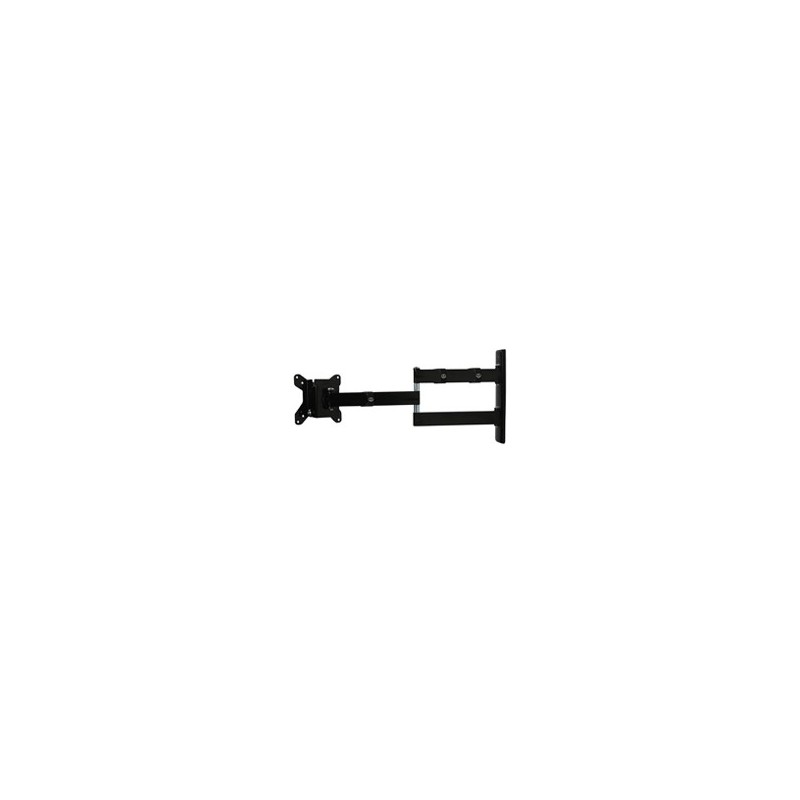

BT7513/PB

Double Arm Flat Screen Wall Mount with Tilt and Swivel

- Designed for small flat screens up to 23” (58cm) / 15kg (33lbs)
- Fits screens with VESA mounting patterns:
- 75mm x 75mm and 100mm x 100mm
- Easy tilt adjustment +17°/ -10°
- Features 3 swivel points: 180° at wall, 360° at central pivot point, 240° at interface
- CLIPLOGIC® cable management included
- 360° rotation for easy screen levelling and to allow screen to be mounted in landscape or portrait style
- Security locking screws & Allen key provided for secure installation
- Features ‘OWLS’™ On Wall Levelling System
- Simple ‘hook-on’ installation with all mounting hardware included

B-Tech BT7513. Maximum weight capacity: 33.1 lbs (15 kg), Maximum screen size: 23", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Tilt angle range: -10 - 17°, Distance to the wall (min): 3.74" (9.5 cm), Distance to the wall (max): 18.4" (46.7 cm). Product color: Black

Number of displays supported	1
Maximum screen size	23"
Mounting type	Wall
Maximum weight capacity	33.1 lbs (15 kg)
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Height adjustment	No
Tilt angle range	-10 - 17°
Swivel angle	360°
Distance to the wall (max)	18.4" (46.7 cm)
Distance to the wall (min)	3.74" (9.5 cm)
Product color	Black
Harmonized System (HS) code	83024200
