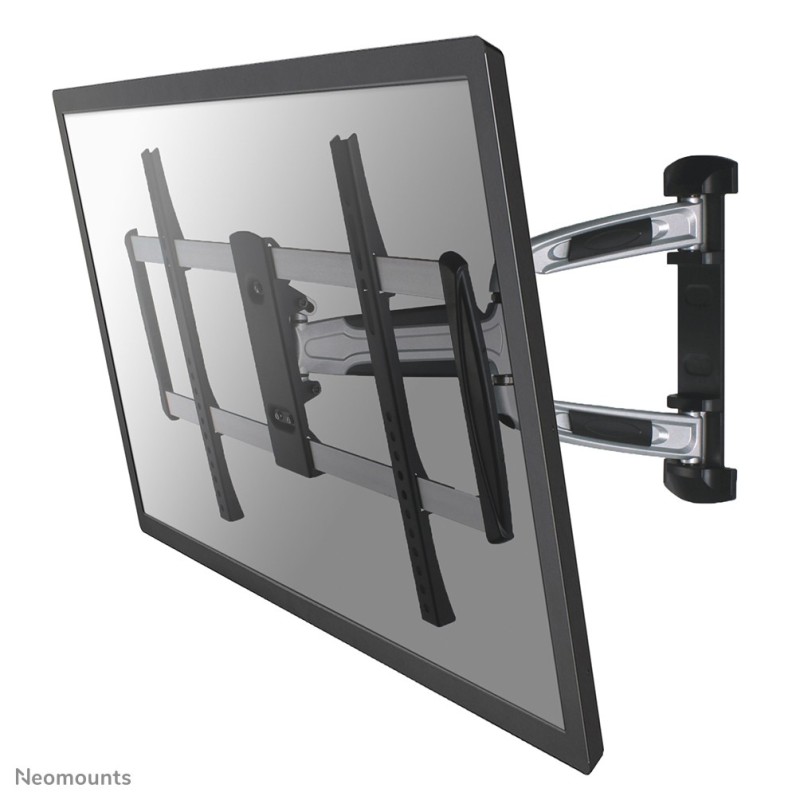

The Neomounts wall mount, model LED-W700SILVER is a full swing tilt- and swivel wall mount for flat screens up to 60" (152 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
Neomounts' tilt (17°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 5 to 52 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
Neomounts LED-W700SILVER has three pivot points and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 35 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
Neomounts LED-W700SILVER. Maximum weight capacity: 77.2 lbs (35 kg), Minimum screen size: 32", Maximum screen size: 60", Minimum VESA mount: 7.87 x 7.87" (200 x 200 mm), Maximum VESA mount: 23.6 x 15.7" (600 x 400 mm). Tilt angle range: 0 - 17°, Swivel angle range: 0 - 180°, Distance to the wall (min): 1.97" (5 cm), Distance to the wall (max): 20.5" (52 cm). Product color: Silver
Number of displays supported
1
Maximum screen size
60"
Mounting type
Wall
Maximum weight capacity
77.2 lbs (35 kg)
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount
23.6 x 15.7" (600 x 400 mm)
Minimum screen size
32"
Panel mounting interface
200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400
Tilt adjustment
Yes
Tilt angle range
0 - 17°
Swiveling
Yes
Swivel angle
180°
Swivel angle range
0 - 180°
Rotating
Yes
Type
Full motion
Distance to the wall (max)
20.5" (52 cm)
Distance to the wall (min)
1.97" (5 cm)
Product color
Silver
Housing material
Steel
Country of origin
China
Weight
11 lbs (4.98 kg)
Package width
19.5" (495 mm)
Package depth
3.27" (83 mm)
Package height
31.9" (810 mm)
Package weight
13 lbs (5.9 kg)
Master (outer) case width
32.9" (835 mm)
Master (outer) case length
20.5" (520 mm)
Master (outer) case height
10.6" (270 mm)
Master (outer) case weight
47.4 lbs (21.5 kg)
Master (outer) case net weight
38.8 lbs (17.6 kg)
Quantity per master (outer) case
3 pc(s)
Harmonized System (HS) code
7326909890
Quantity per EUR-pallet
30 pc(s)
Package net weight
12.9 lbs (5.86 kg)
Product Details
819247
2025-12-25
New
Data sheet
Type
Full motion
Product color
Silver
Weight
11 lbs (4.98 kg)
Harmonized System (HS) code
7326909890
Country of origin
China
Package weight
13 lbs (5.9 kg)
Maximum weight capacity
77.2 lbs (35 kg)
Master (outer) case width
32.9" (835 mm)
Master (outer) case length
20.5" (520 mm)
Master (outer) case height
10.6" (270 mm)
Master (outer) case weight
47.4 lbs (21.5 kg)
Quantity per master (outer) case
3 pc(s)
Package width
19.5" (495 mm)
Package depth
3.27" (83 mm)
Package height
31.9" (810 mm)
Number of displays supported
1
Housing material
Steel
Maximum screen size
60"
Quantity per EUR-pallet
30 pc(s)
Mounting type
Wall
Tilt angle range
0 - 17°
Tilt adjustment
Yes
Minimum screen size
32"
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount
23.6 x 15.7" (600 x 400 mm)
Panel mounting interface
200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400
