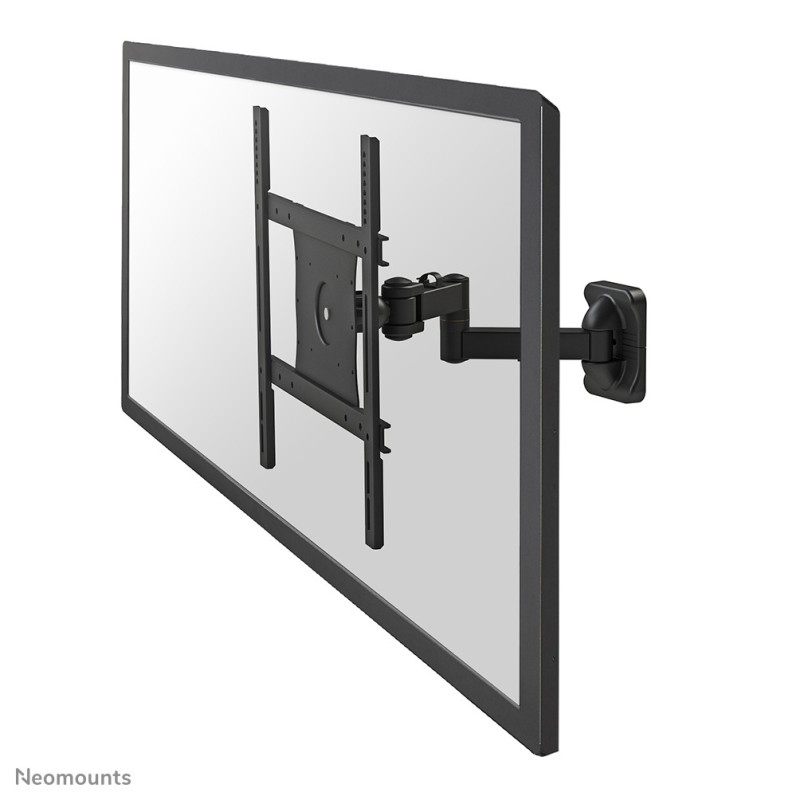

The Neomounts wall mount, model FPMA-W960 is a tilt-, swivel and rotatable wall mount for flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
Neomounts' tilt (15°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 12 to 43 centimetres. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
Neomounts FPMA-W960 has three pivot points and is suitable for screens up to 52" (132 cm). The weight capacity of this product is 25 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
Neomounts FPMA-W960. Maximum weight capacity: 55.1 lbs (25 kg), Minimum screen size: 23", Maximum screen size: 52", Minimum VESA mount: 3.94 x 3.94" (100 x 100 mm), Maximum VESA mount: 15.7 x 15.7" (400 x 400 mm). Tilt angle range: 0 - 15°, Swivel angle range: 0 - 180°, Angle of rotation: 360°, Distance to the wall (min): 4.72" (12 cm), Distance to the wall (max): 16.9" (43 cm). Product color: Black
Number of displays supported
1
Maximum screen size
52"
Mounting type
Wall
Maximum weight capacity
55.1 lbs (25 kg)
Minimum VESA mount
3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount
15.7 x 15.7" (400 x 400 mm)
Minimum screen size
23"
Panel mounting interface
100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400
Tilt adjustment
Yes
Tilt angle range
0 - 15°
Swiveling
Yes
Swivel angle
180°
Swivel angle range
0 - 180°
Rotating
Yes
Angle of rotation
360°
Type
Full motion
Distance to the wall (max)
16.9" (43 cm)
Distance to the wall (min)
4.72" (12 cm)
Product color
Black
Housing material
Steel
Country of origin
Taiwan
Weight
11.2 lbs (5.06 kg)
Package width
18.9" (479 mm)
Package depth
9.76" (248 mm)
Package height
5.98" (152 mm)
Package weight
12.3 lbs (5.6 kg)
Master (outer) case width
19.7" (500 mm)
Master (outer) case length
10.8" (275 mm)
Master (outer) case height
13.8" (350 mm)
Master (outer) case weight
29.3 lbs (13.3 kg)
Master (outer) case net weight
27.1 lbs (12.3 kg)
Quantity per master (outer) case
2 pc(s)
Harmonized System (HS) code
7326909890
Quantity per EUR-pallet
48 pc(s)
Package net weight
12.3 lbs (5.6 kg)
Product Details
VLMW2355A, 819227
2025-12-24
New
Data sheet
Type
Full motion
Product color
Black
Weight
11.2 lbs (5.06 kg)
Harmonized System (HS) code
7326909890
Country of origin
Taiwan
Package weight
12.3 lbs (5.6 kg)
Maximum weight capacity
55.1 lbs (25 kg)
Master (outer) case width
19.7" (500 mm)
Master (outer) case length
10.8" (275 mm)
Master (outer) case height
13.8" (350 mm)
Master (outer) case weight
29.3 lbs (13.3 kg)
Quantity per master (outer) case
2 pc(s)
Package width
18.9" (479 mm)
Package depth
9.76" (248 mm)
Package height
5.98" (152 mm)
Number of displays supported
1
Housing material
Steel
Maximum screen size
52"
Quantity per EUR-pallet
48 pc(s)
Mounting type
Wall
Tilt angle range
0 - 15°
Tilt adjustment
Yes
Minimum screen size
23"
Minimum VESA mount
3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount
15.7 x 15.7" (400 x 400 mm)
Panel mounting interface
100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400
