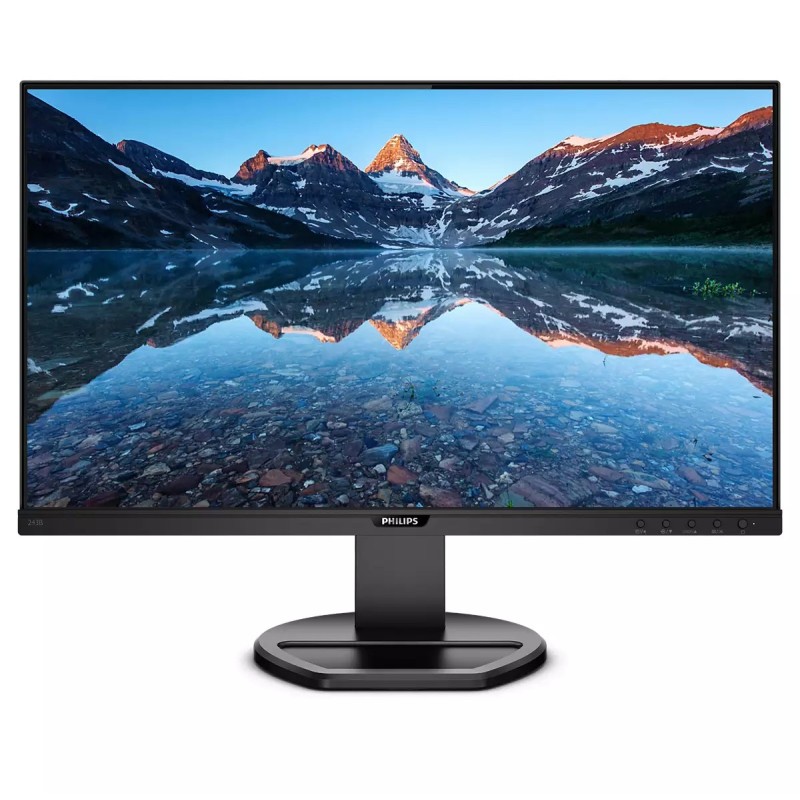

243B9/00 - W125943011

Data sheet

Product color

Black

Windows operating systems supported

Package type

Box

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

DisplayPorts quantity

1

Cable lock slot

Yes

Harmonized System (HS) code

85285210

Display diagonal

23.8"

Display resolution

1920 x 1080 pixels

HD type

Full HD

AC input frequency

50 - 60 Hz

Plug and Play

Yes

AC input voltage

100 - 240 V

Certification

CE Mark, FCC Class B, SEMKO, CU-EAC, TUV Ergo, TUV/GS, EPA, ICES-003, UKRAINIAN, CB

Package weight

15.2 lbs (6.89 kg)

Touchscreen

No

Height adjustment

Yes

Package width

23.6" (600 mm)

Package depth

7.8" (198 mm)

Package height

18.7" (475 mm)

Mac operating systems supported

Yes

LED indicators

Operation, Stand-by

HDMI version

1.4

DisplayPort version

1.2

VESA mounting

Yes

On/off switch

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Panel type

IPS

Built-in speaker(s)

Yes

Cables included

3D

No

Power consumption (standby)

0.3 W

Sustainability certificates

ENERGY STAR

Bundled software

SmartControl

Manual

Yes

Power consumption (typical)

17.1 W

Compliance certificates

RoHS

TV tuner integrated

No

HDCP

Yes

Cable lock slot type

Kensington

Mean time between failures (MTBF)

70000 h

Backlight type

W-LED

USB Power Delivery

Yes

USB Power Delivery up to

65 W

USB Type-C DisplayPort Alternate Mode

Yes

Maximum refresh rate

75 Hz

Tilt angle range

-5 - 30°

Native aspect ratio

16:9

Display technology

LED

Response time

4 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

16.78 million colors

Display brightness (typical)

250 cd/m²

Display surface

Matt

Supported graphics resolutions

1920 x 1080 (HD 1080)

Contrast ratio (dynamic)

50000000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.0108 x 0.0108" (0.275 x 0.275 mm)

Pixel density

93 ppi

Horizontal scan range

30 - 85 kHz

Vertical scan range

48 - 75 Hz

Viewable size, horizontal

20.7" (52.7 cm)

Viewable size, vertical

11.7" (29.6 cm)

Colour gamut standard

sRGB

Color gamut

90%

sRGB coverage (typical)

104%

Flicker-free technology

Yes

Low Blue Light technology

Yes

Built-in camera

No

Number of speakers

2

RMS rated power

2 W

Feet color

Black

Built-in USB hub

Yes

HDMI

Yes

Headphone out

Yes

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

D

Energy consumption (SDR) per 1000 hours

15 kWh

Energy efficiency scale

A to G

Width (with stand)

21.3" (541 mm)

Depth (with stand)

8.5" (216 mm)

Height (with stand)

20.6" (522 mm)

Weight (with stand)

11.4 lbs (5.19 kg)

Width (without stand)

21.3" (541 mm)

Depth (without stand)

2.48" (63 mm)

Height (without stand)

13.1" (332 mm)

Stand included

Yes

European Product Registry for Energy Labelling (EPREL) code

337895

Post-consumer recycled plastic

85%

Supported video modes

1080p

Panel mounting interface

100 x 100 mm

Angle of rotation

90 - 90°

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-C

Number of upstream ports

1

USB Type-A downstream ports quantity

4

DVI port

No

AC (power) in

Yes

Adjustable height (max)

5.91" (15 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-175 - 175°

Power consumption (PowerSave)

12.8 W

Operating altitude

0 - 144015.7" (0 - 3658 m)

Non-operating altitude

0 - 480000" (0 - 12192 m)

Weight (without stand)

7.87 lbs (3.57 kg)

USB Power Delivery revision

3.0

Digital horizontal frequency

30 - 85 kHz

Dynamic contrast ratio marketing name

SmartContrast

NTSC coverage (typical)

90%

External power adapter

No

PC Audio in

Yes

Front bezel color

Black

Number of USB Type-C upstream ports quantity

1

DDC/CI

Yes

Component video sync

Recyclable packaging material

100%

Heavy metals free

Hg (mercury), Pb (lead)

EasyRead mode

Yes

Specific References

EAN13

8712581761981

MPN

243B9/00
