Description

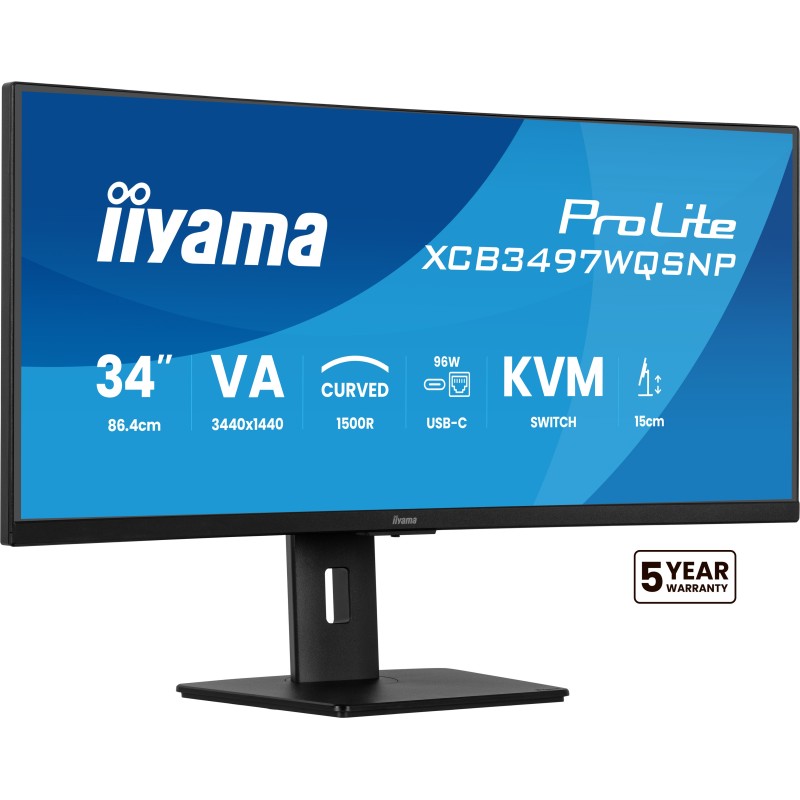

The XCB3497WQSNP is a 34-inch curved monitor that incorporates a KVM switch and a USB-C dock to simplify your workspace. The KVM switch enhances multitasking by allowing you to control multiple computers from a single monitor, keyboard, and mouse. The USB-C dock reduces cable clutter and simplifies connectivity even further, allowing a single cable to carry video, data, and power to charge your notebook. Additionally, when the monitor is connected to a LAN network, your notebook automatically gains network access. The VA panel technology delivers high contrast and deep black levels and wide viewing angles for consistent image quality regardless of your position for a richer and more vivid viewing experience. For optimal comfort, the 15cm height-adjustable stand allows you to customize the screen position, while the Flicker-Free panel and Blue Light reduction function help minimize eye strain.
iiyama ProLite XCB3497WQSNP-B1. Display diagonal: 34", Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LED, Display surface: Matt, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product color: Black
Display diagonal 34" Display resolution 3440 x 1440 pixels Native aspect ratio 21:9 Display technology LED Touchscreen No HD type UltraWide Quad HD Panel type VA Screen shape Curved Contrast ratio (typical) 3000:1 Maximum refresh rate 120 Hz Display number of colors 16.7 million colors Display brightness (typical) 350 cd/m² Response time (MPRT) 0.4 ms Display surface Matt Screen curvature rating 1500R Contrast ratio (dynamic) 80000000:1 Viewing angle, horizontal 178° Viewing angle, vertical 178° Pixel pitch 0.00913 x 0.00913" (0.232 x 0.232 mm) Horizontal scan range 30 - 180 kHz Viewable size, horizontal 31.4" (79.7 cm) Viewable size, vertical 13.1" (33.4 cm) Display diagonal (metric) 34.1" (86.7 cm) Colour gamut standard NTSC, sRGB sRGB coverage (typical) 99% NTSC coverage (typical) 93% AMD FreeSync Yes AMD FreeSync type FreeSync Premium VESA Adaptive Sync support Yes Flicker-free technology Yes Low Blue Light technology Yes Built-in speaker(s) Yes Number of speakers 2 RMS rated power 10 W Product color Black Built-in USB hub Yes HDMI Yes Headphone out Yes USB hub version 3.2 Gen 1 (3.1 Gen 1) USB upstream port type USB Type-C Number of USB Type-C upstream ports quantity 1 USB Type-A downstream ports quantity 2 USB Type-C DisplayPort Alternate Mode Yes USB Power Delivery Yes USB Power Delivery up to 95 W HDMI ports quantity 2 HDMI version 1.4/2.0 DisplayPorts quantity 1 DisplayPort out version 1.4 Built-in KVM switch Yes HDCP Yes Ethernet LAN Yes VESA mounting Yes Cable lock slot Yes Height adjustment Yes Panel mounting interface 100 x 100 mm Wall mountable Yes Cable management Yes Cable lock slot type Kensington Adjustable height (max) 5.91" (15 cm) Swiveling Yes Swivel angle range -45 - 45° Tilt adjustment Yes Tilt angle range 5 - 23° On Screen Display (OSD) Yes On Screen Display (OSD) languages Czech, German, Dutch, English, French, Italian, Japanese, Polish, Russian Energy efficiency class (SDR) F Energy efficiency class (HDR) Not available Energy consumption (SDR) per 1000 hours 32 kWh Power consumption (typical) 32 W Power consumption (standby) 0.5 W Power consumption (off) 0.3 W AC input voltage 100 - 240 V AC input frequency 50/60 Hz Power supply type Internal Energy efficiency scale A to G Width (with stand) 31.8" (807 mm) Depth (with stand) 9.67" (245.5 mm) Height (with stand) 22.7" (576 mm) Weight (with stand) 21.4 lbs (9.7 kg) Width (without stand) 31.8" (807 mm) Depth (without stand) 9.67" (245.5 mm) Height (without stand) 16.8" (426 mm) Package width 36.5" (928 mm) Package depth 36.5" (928 mm) Package height 18.9" (480 mm) Package weight 31.1 lbs (14.1 kg) Package type Box Ethernet LAN (RJ-45) ports 1
Product Details
Reference
W129047112
Availability date:
2026-04-13
Condition
New
Data sheet
Product color
Black
Package type
Box
HDMI ports quantity
2
DisplayPorts quantity
1
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Cable lock slot
Yes
Power supply type
Internal
Display diagonal
34"
Display resolution
3440 x 1440 pixels
HD type
UltraWide Quad HD
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Package weight
31.1 lbs (14.1 kg)
Touchscreen
No
Height adjustment
Yes
Package width
36.5" (928 mm)
Package depth
36.5" (928 mm)
Package height
18.9" (480 mm)
HDMI version
1.4/2.0
VESA mounting
Yes
Panel type
VA
Built-in speaker(s)
Yes
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Power consumption (typical)
32 W
HDCP
Yes
Cable lock slot type
Kensington
USB Power Delivery
Yes
USB Power Delivery up to
95 W
USB Type-C DisplayPort Alternate Mode
Yes
Maximum refresh rate
120 Hz
Tilt angle range
5 - 23°
Native aspect ratio
21:9
Display technology
LED
Screen shape
Curved
Contrast ratio (typical)
3000:1
Display number of colors
16.7 million colors
Display brightness (typical)
350 cd/m²
Display surface
Matt
Contrast ratio (dynamic)
80000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.00913 x 0.00913" (0.232 x 0.232 mm)
Horizontal scan range
30 - 180 kHz
Viewable size, horizontal
31.4" (79.7 cm)
Viewable size, vertical
13.1" (33.4 cm)
Display diagonal (metric)
34.1" (86.7 cm)
Colour gamut standard
NTSC, sRGB
sRGB coverage (typical)
99%
AMD FreeSync
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes
Number of speakers
2
RMS rated power
10 W
Built-in USB hub
Yes
HDMI
Yes
Headphone out
Yes
Tilt adjustment
Yes
On Screen Display (OSD)
Yes
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
32 kWh
Energy efficiency scale
A to G
Width (with stand)
31.8" (807 mm)
Depth (with stand)
9.67" (245.5 mm)
Height (with stand)
22.7" (576 mm)
Weight (with stand)
21.4 lbs (9.7 kg)
Width (without stand)
31.8" (807 mm)
Depth (without stand)
9.67" (245.5 mm)
Height (without stand)
16.8" (426 mm)
Cable management
Yes
Panel mounting interface
100 x 100 mm
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-C
USB Type-A downstream ports quantity
2
Adjustable height (max)
5.91" (15 cm)
Swiveling
Yes
Swivel angle range
-45 - 45°
Wall mountable
Yes
AMD FreeSync type
FreeSync Premium
VESA Adaptive Sync support
Yes
On Screen Display (OSD) languages
Czech, German, Dutch, English, French, Italian, Japanese, Polish, Russian
NTSC coverage (typical)
93%
Built-in KVM switch
Yes
Screen curvature rating
1500R
Number of USB Type-C upstream ports quantity
1
Response time (MPRT)
0.4 ms
DisplayPort out version
1.4
Specific References
EAN13
4948570125142
MPN
XCB3497WQSNP-B1
