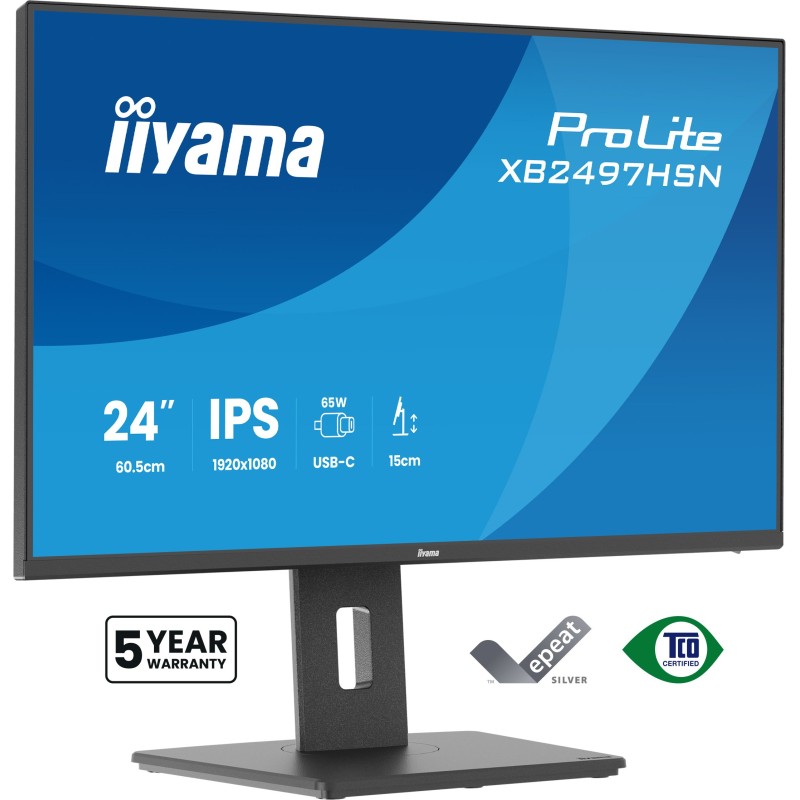

iiyama ProLite XB2497HSN-B1, 23.8", 1920 x 1080 pixels, Full HD, LED, 1 ms, Black
| Display diagonal | 23.8" |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Response time | 1 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1500:1 |
| Maximum refresh rate | 100 Hz |
| Display number of colors | 16.7 million colors |
| Display brightness (typical) | 350 cd/m² |
| Response time (MPRT) | 1 ms |
| Display surface | Matt |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.0108 x 0.0108" (0.275 x 0.275 mm) |
| Horizontal scan range | 30 - 115 kHz |
| Viewable size, horizontal | 20.7" (52.7 cm) |
| Viewable size, vertical | 11.7" (29.6 cm) |
| Display diagonal (metric) | 23.8" (60.5 cm) |
| AMD FreeSync | Yes |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Market positioning | Business |
| Product color | Black |
| Built-in USB hub | Yes |
| HDMI | Yes |
| Headphone out | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of downstream ports | 4 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 65 W |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort out quantity | 1 |
| DisplayPort version | 1.2 |
| HDCP | Yes |
| Ethernet LAN | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Height adjustment | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot type | Kensington |
| Adjustable height (max) | 5.91" (15 cm) |
| Pivot | Yes |
| Swiveling | Yes |
| Swivel angle range | -60 - 60° |
| Tilt adjustment | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Power consumption (typical) | 15 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Width (with stand) | 21.2" (538.5 mm) |
| Depth (with stand) | 8.25" (209.5 mm) |
| Height (with stand) | 19.5" (496.5 mm) |
| Weight (with stand) | 11.2 lbs (5.1 kg) |
| Height (without stand) | 14.7" (373.5 mm) |
| Package width | 27" (685 mm) |
| Package depth | 4.96" (126 mm) |
| Package height | 15.9" (405 mm) |
| Package weight | 15.2 lbs (6.9 kg) |
| USB cable length | 39.4" (1 m) |
| Cables included | AC, HDMI, USB Type-C |
| HDMI cable length | 59.1" (1.5 m) |
| Power cable length | 59.1" (1.5 m) |
| Sustainability certificates | ErP, TCO |
| Packaging content | quick start guide, safety guide |
| Weight | 11.2 lbs (5.1 kg) |
| Width | 21.2" (538.5 mm) |
| Depth | 8.25" (209.5 mm) |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Manufacturer warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
| Ethernet LAN (RJ-45) ports | 1 |
| User controls | picture adjust (brightness, contrast, ECO, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed, MST DP-out), extra 2 (shortcut key, Mac address, FW version), input select, audio settings (volume, mute), reset (reset all?) |
| Control panel | Joystick: (Centre) Power/Menu, Up/Signal Select, Down, Left/Shortcut, Right/Volume |
