Description

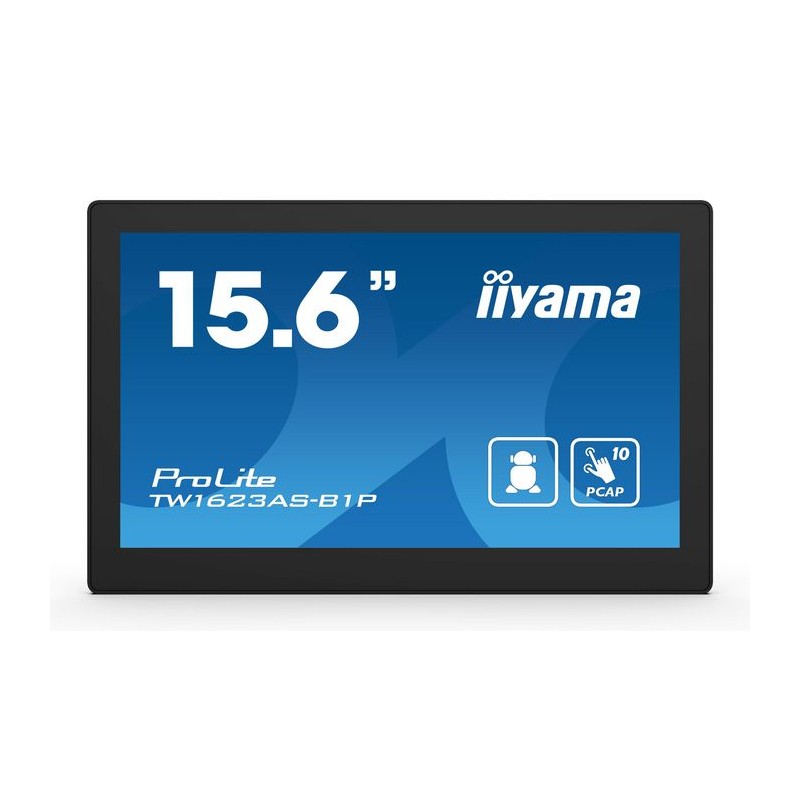

15,6" Panel-PC with Android 13, SOC RK3568 4GB, Storage 32GB, PCAP 10-Points Touch, 1920x1080, IPS panel, Speakers, Microphone, POE, WIFI, BT5.2, Micro-SD slot, HDMI-Out, 3x USB, 385cd/m², Cable cover
Specifications
Audio
| Number of built-in speakers | 2 |
Computer system
| Computer system | Yes |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Processor family | ARM Rockchip |
| Processor manufacturer | Rockchip |
Design
| Fingerprint resistant | Yes |
| Front bezel colour | Black |
| Glass thickness | 1.8 mm |
| Orientation | Horizontal/Vertical |
| Panel mounting interface | 100 x 100 mm |
| Product colour | Black |
| Product design | Interactive flat panel |
| VESA mounting | Yes |
Display
| Colour depth | 8 bit |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 450 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Display diagonal | 15.6 " |
| Display diagonal (metric) | 39.5 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1080 pixels |
| HD type | Double Full HD |
| Native aspect ratio | 16:9 |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Pixel pitch | 0.17925 x 0.17925 mm |
| Response time | 30 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Surface hardness | 6H |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Viewing angle, horizontal | 170 ° |
| Viewing angle, vertical | 170 ° |
Logistics data
| Pallet net height | 120 cm |
| Pallet net length | 176 cm |
| Pallet net width | 100 cm |
| Products per pallet | 150 pc(s) |
Multimedia
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
Other features
| Active display area (W x H) | 344.2 x 193.6 mm |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Built-in microphone | Yes |
| Built-in processor | Yes |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Ethernet LAN (RJ-45) ports | 1 |
| Multi-touch | Yes |
| Package volume | 2400 cm³ |
| Placement supported | Indoor |
| Power supply type | External |
| Viewable size, horizontal | 34.42 cm |
| Viewable size, vertical | 19.36 cm |
Packaging content
| Power adapter included | Yes |
| Quick start guide | Yes |
Performance
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| Operating system installed | Android |
| Operating system version | 13 |
| Purpose | Commercial |
Ports & interfaces
| Audio input | Mini Jack |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| USB port | Yes |
| USB ports quantity | 3 |
| USB Touch port | Yes |
| USB version | 2.0 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
Power
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 24 W |
Thin Client
| Processor architecture | ARM Cortex-A55 |
| Processor cores | 4 |
| Processor frequency | 2 GHz |
| Processor model | RK3568 |
Vendor information
| Brand Name | iiyama |
| Warranty | 3 |
Weight & dimensions
| Depth (with stand) | 3.05 cm |
| Display depth | 3.05 cm |
| Display height | 24.4 cm |
| Display weight | 1500 g |
| Display width | 38.7 cm |
| Height (with stand) | 24.4 cm |
| Weight (with stand) | 1500 g |
| Width (with stand) | 38.7 cm |
Product Details
1 Item
New
Data sheet
- Panel type
- IPS
- Internal storage capacity
- 32 GB
- Power consumption (off)
- 0.3 W
- Native aspect ratio
- 16:9
- Response time
- 30 ms
- Surface hardness
- 6H
- Color depth
- 8 bit
- Product design
- Interactive flat panel
- Computer system
- Yes
- Multi-touch
- Yes
- Glass thickness
- 1.8 mm
- USB Touch port
- Yes
- Bildschirmhelligkeit
- 450 cd/m²
- Pixelabstand
- 0.17925 x 0.17925 mm
- Anzahl der eingebauten Lautsprecher
- 2
- RMS-Nennleistung
- 4 W
- Betriebssystem installiert
- Android
- Prozessorarchitektur
- ARM Cortex-A55
- Prozessormodell
- RK3568
- Orientierung
- Horizontal/Vertical
- Schnittstelle für Schalttafeleinbau
- 100 x 100 mm
- VESA-Montage
- Yes
- Aktiver Anzeigebereich (B x H)
- 344.2 x 193.6 mm
- Anzahl der Farben anzeigen
- 16.7 million colours
- Anzahl gleichzeitiger Touchpoints
- 10
- Anzeigediagonale (metrisch)
- 39.5 cm
- Betrachtungswinkel horizontal
- 170 °
- Betrachtungswinkel, vertikal
- 170 °
- Kontrastverhältnis (typisch)
- 1000:1
- Touchscreen-Technologie
- Projected capacitive system
- Paketvolumen
- 2400 cm³
- Betriebsstunden (Stunden/Tage)
- 24/7
- Bildschirmanzeige (OSD)
- Yes
- Anzahl der HDMI-Anschlüsse
- 1
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- Breite (mit Ständer)
- 38.7 cm
- Gewicht (mit Ständer)
- 1500 g
- Höhe (mit Ständer)
- 24.4 cm
- Tiefe (mit Ständer)
- 3.05 cm
- Prozessorfrequenz
- 2 GHz
- Inklusive Netzteil
- Yes
- Schnellstartanleitung
- Yes
- Processor cores
- 4
- Bluetooth
- Yes
- Wi-Fi
- Yes
- USB-Anschluss
- Yes
- Eingebautes Mikrophon
- Yes
- Ethernet-LAN
- Yes
- Wi-Fi-Standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
- Bluetooth-Version
- 5.2
- Platzierung unterstützt
- Indoor
- Zertifizierung
- CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
- Stromverbrauch (typisch)
- 24 W
- Kartenleser integriert
- Yes
- Kompatible Speicherkarten
- SD
- Mikrofon rein
- Yes
- Prozessorfamilie
- ARM Rockchip
- Prozessorhersteller
- Rockchip
- Eingebauter Prozessor
- Yes
- Produkte pro Palette
- 150 Stück(e)
- USB-Version
- 2.0
- Fingerabdruck resistent
- Yes
- Stromverbrauch (Standby)
- 0.5 W
- Anzahl der USB-Anschlüsse
- 3
- Berührungssensitiver Bildschirm
- Yes
- Bildschirmauflösung
- 1920 x 1080 Pixel
- Diagonale anzeigen
- 15.6 "
- HD-Typ
- Double Full HD
- Brand Name
- iiyama
- Warranty
- 3
- Stromversorgungstyp
- External
- Zweck
- Commercial
- Interner Speicher
- 4 GB
- Produktfarbe
- Black
- Eingebaute(r) Lautsprecher
- Yes
- Audioeingang
- Mini Jack
- Displayhelligkeit (typisch)
- 450 cd/m²
- Sichtbare Größe, horizontal
- 34.42 cm
- Sichtbare Größe, vertikal
- 19.36 cm
- Ausgangsspannung des Netzteils
- 12 V
- Betriebssystemversion
- 13
- Farbe der Frontblende
- Black
- Response time measurement type
- GTG (Gray to Gray)
- Anzahl der Sprecher
- 2
- Nettolänge der Palette
- 176 cm
- Anzeigebreite
- 38.7 cm
- Gewicht anzeigen
- 1500 g
- Höhe anzeigen
- 24.4 cm
- Tiefe anzeigen
- 3.05 cm
- Pallet net height
- 120 cm
- Pallet net width
- 100 cm
Specific References
- EAN13
- 4948570124534
- MPN
- TW1623AS-B1P
