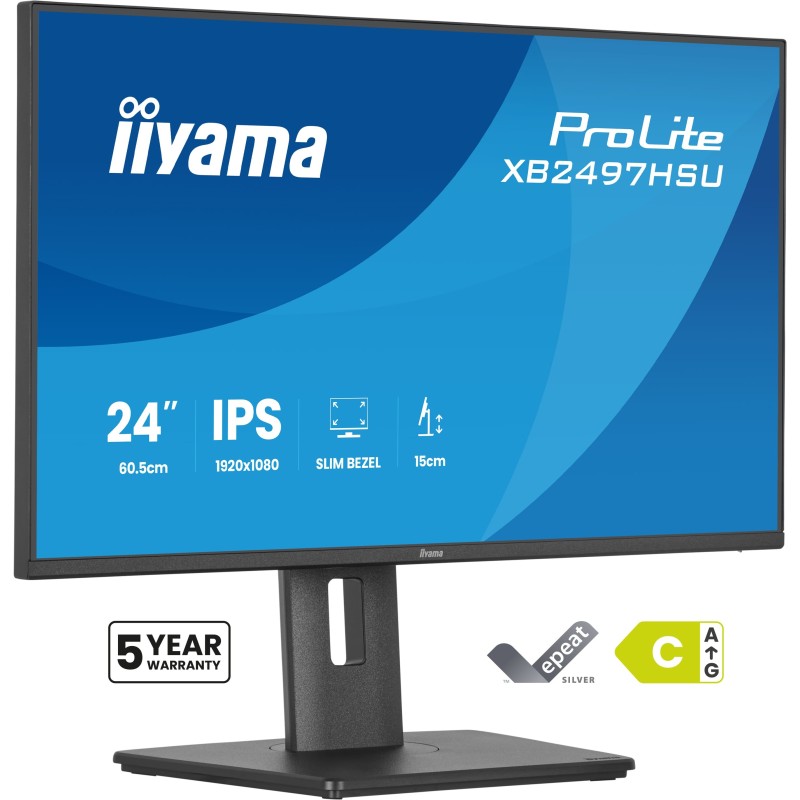

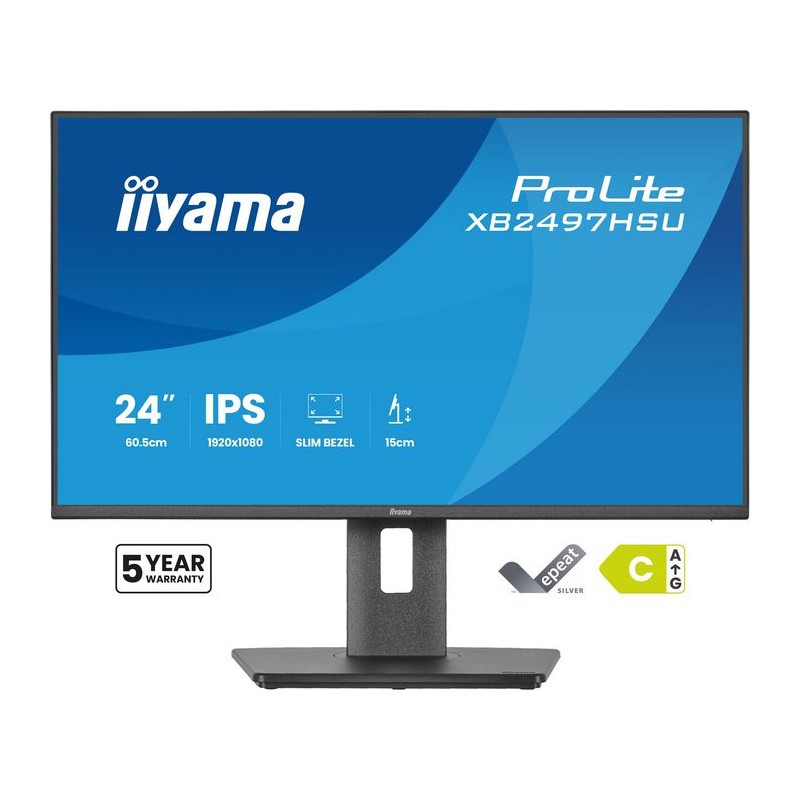

XB2497HSU-B1

Data sheet

Product color

Black

HDMI ports quantity

1

Headphone outputs

1

DisplayPorts quantity

1

Headphone connectivity

3.5 mm

Cable lock slot

Yes

Power supply type

Internal

Display diagonal

23.8"

Display resolution

1920 x 1080 pixels

HD type

Full HD

LED backlight

Yes

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Package weight

14.8 lbs (6.7 kg)

Touchscreen

No

Height adjustment

Yes

Warranty period

5 year(s)

Package width

27" (685 mm)

Package depth

27" (685 mm)

Package height

15.9" (405 mm)

HDMI version

1.4

DisplayPort version

1.2

VESA mounting

Yes

Power cable length

70.9" (1.8 m)

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

10 - 90%

Panel type

IPS

Built-in speaker(s)

Yes

Cables included

DisplayPort, AC, HDMI, USB

Quick start guide

Yes

Market positioning

Consumer

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

Sustainability certificates

TCO10, EPEAT, ErP

Power consumption (typical)

12 W

Compliance certificates

EAC, TÜV mark, UKCA, PSE, VCCI, REACH, RoHS, CE

Cable lock slot type

Kensington

Maximum refresh rate

120 Hz

Tilt angle range

-5 - 23°

Native aspect ratio

16:9

Display technology

LED

Response time

4 ms

Screen shape

Flat

Contrast ratio (typical)

1500:1

Display number of colors

16.7 million colors

Display brightness (typical)

350 cd/m²

Display surface

Matt

Contrast ratio (dynamic)

80000000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.0108 x 0.0108" (0.275 x 0.275 mm)

Horizontal scan range

30 - 140 kHz

Vertical scan range

48 - 120 Hz

Viewable size, horizontal

20.7" (52.7 cm)

Viewable size, vertical

11.7" (29.6 cm)

Display diagonal (metric)

23.8" (60.5 cm)

Colour gamut standard

sRGB, NTSC

sRGB coverage (typical)

99%

Flicker-free technology

Yes

Low Blue Light technology

Yes

Built-in camera

No

Number of speakers

2

RMS rated power

4 W

Built-in USB hub

Yes

HDMI

Yes

Headphone out

Yes

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

C

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

12 kWh

Energy efficiency scale

A to G

Width (with stand)

21.2" (539 mm)

Depth (with stand)

8.25" (209.5 mm)

Height (with stand)

19.5" (495 mm)

Weight (with stand)

10.4 lbs (4.7 kg)

Height (without stand)

14.6" (372 mm)

Cable management

Yes

Panel mounting interface

100 x 100 mm

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-B

USB Type-A downstream ports quantity

2

Adjustable height (max)

5.91" (15 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-45 - 45°

Response time measurement type

GTG (Gray to Gray)

VESA Adaptive Sync support

Yes

USB Type-C downstream ports quantity

2

On Screen Display (OSD) languages

Czech, German, Dutch, English, Spanish, Italian, Polish, Japanese, Russian, French

Number of OSD languages

10

NTSC coverage (typical)

72%

Frameless design

Yes

Number of USB Type-B upstream ports quantity

1

DDC/CI

Yes

HDMI cable length

59.1" (1.5 m)

DisplayPort cable length

70.9" (1.8 m)

Pivot angle

-90 - 90°

Specific References

MPN

XB2497HSU-B1
