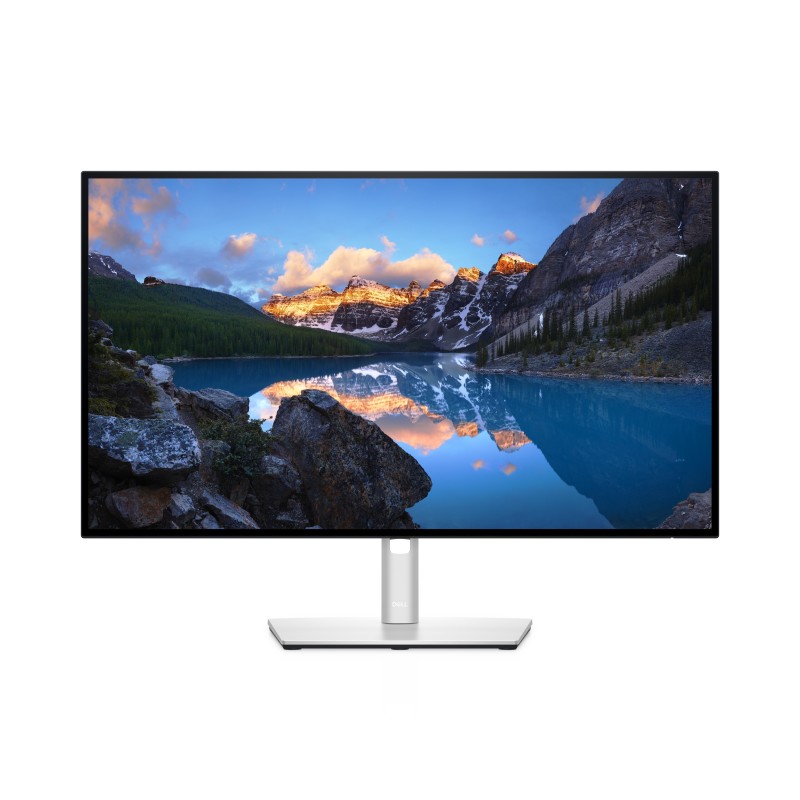

DELL-U2722DE - 0DELL-U2722DE, 834830

Data sheet

Product color

Silver

HDMI ports quantity

1

VGA (D-Sub) ports quantity

0

DisplayPorts quantity

2

Headphone connectivity

3.5 mm

Ethernet LAN (RJ-45) ports

1

Cable lock slot

Yes

Harmonized System (HS) code

85285210

Power supply type

Internal

Display diagonal

27"

Display resolution

2560 x 1440 pixels

HD type

Quad HD

Wi-Fi

No

AC input frequency

50 - 60 Hz

Plug and Play

Yes

AC input voltage

100 - 240 V

Package weight

22 lbs (10 kg)

Touchscreen

No

Height adjustment

Yes

HDMI version

1.4

DisplayPort version

1.4

VESA mounting

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 90%

Panel type

IPS

Built-in speaker(s)

No

Cables included

AC, DisplayPort, HDMI, USB Type-C

Market positioning

Office

Power consumption (standby)

0.3 W

Power consumption (off)

0.3 W

Power consumption (typical)

20.4 W

Power consumption (max)

197 W

Backlight type

LED

USB Power Delivery up to

90 W

USB Type-C DisplayPort Alternate Mode

Yes

Maximum refresh rate

60 Hz

Tilt angle range

-5 - 21°

Native aspect ratio

16:9

Display technology

LCD

Response time

8 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

1.07 billion colors

Display brightness (typical)

350 cd/m²

Anti-glare screen

Yes

Supported graphics resolutions

2560 x 1440

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.00918 x 0.00918" (0.233 x 0.233 mm)

Pixel density

108.78 ppi

Horizontal scan range

30 - 90 kHz

Vertical scan range

49 - 76 Hz

Viewable size, horizontal

23.5" (59.7 cm)

Viewable size, vertical

13.2" (33.6 cm)

Colour gamut standard

sRGB

Color gamut

100%

Built-in camera

No

Detachable stand

Yes

Feet color

Silver

Built-in USB hub

Yes

HDMI

Yes

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

E

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

20 kWh

Energy efficiency scale

A to G

Width (with stand)

24.1" (611.3 mm)

Depth (with stand)

7.28" (185 mm)

Height (with stand)

21.1" (535.1 mm)

Weight (with stand)

14.5 lbs (6.59 kg)

Width (without stand)

24.1" (611.3 mm)

Depth (without stand)

1.95" (49.5 mm)

Height (without stand)

13.9" (352 mm)

European Product Registry for Energy Labelling (EPREL) code

414156

Supported video modes

480i, 480p, 576p, 720p, 1080i, 1080p

Panel mounting interface

100 x 100 mm

Viewable size diagonal

27" (68.5 cm)

USB hub version

3.2 Gen 2 (3.1 Gen 2)

USB upstream port type

USB Type-C

Number of upstream ports

2

USB Type-A downstream ports quantity

4

DVI port

No

Adjustable height (max)

5.91" (15 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-45 - 45°

Power consumption (PowerSave)

20.32 W

Operating altitude

0 - 196850.4" (0 - 5000 m)

Non-operating altitude

0 - 480000" (0 - 12192 m)

Weight (without stand)

10.5 lbs (4.78 kg)

High Dynamic Range (HDR) supported

No

USB Type-C downstream ports quantity

1

Audio output

Yes

Bezel width (bottom)

0.356" (9.05 mm)

Bezel width (side)

0.287" (7.3 mm)

Bezel width (top)

0.287" (7.3 mm)

Power consumption (average)

20.4 W

Front bezel color

Black

Response time (fast)

5 ms

Number of USB Type-C upstream ports quantity

2

HDMI cable length

70.9" (1.8 m)

Total carbon footprint (kg of CO2e)

643

Heavy metals free

Hg (mercury)

DisplayPort cable length

70.9" (1.8 m)

Total carbon emissions, standard deviation (kg of CO2e)

107

Carbon emissions, manufacturing (kg of CO2e)

377.82

Carbon emissions, logistics (kg of CO2e)

50.8

Carbon emissions, energy usage (kg of CO2e)

210

Carbon emissions, end-of-life (kg of CO2e)

3.2

PAIA version

1.2.13, 2021

Pivot angle

-90 - 90°

Specific References

UPC

884116390787

EAN13

5397184505014

MPN

DELL-U2722DE
