Description

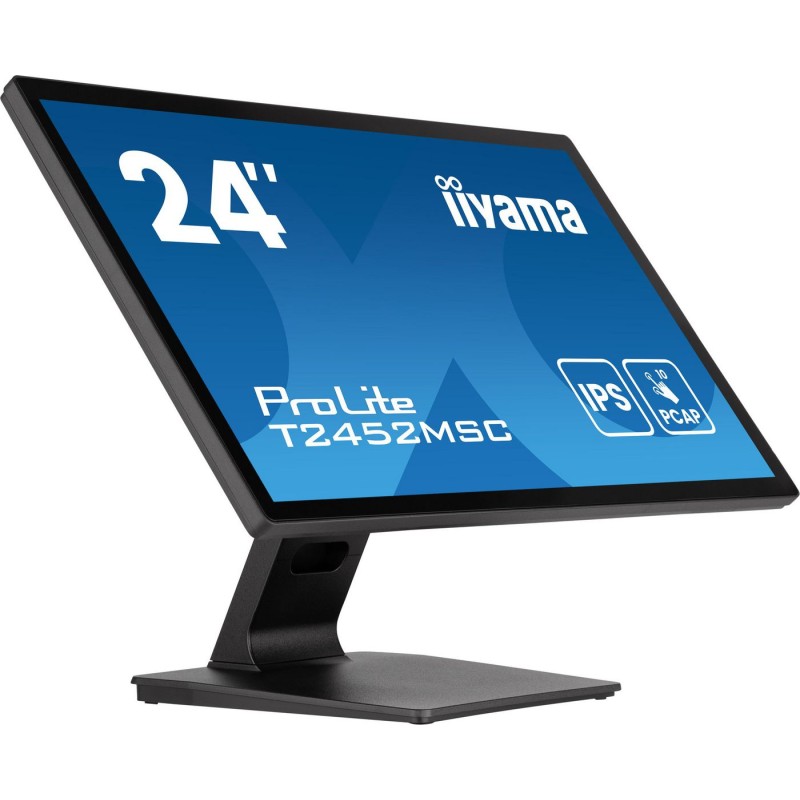

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2452MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The ProLite T2452MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
iiyama ProLite T2452MSC-B1AG. Display diagonal: 23.8", Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product color: Black
Display diagonal 23.8" Display resolution 1920 x 1080 pixels Native aspect ratio 16:9 Display technology LED Touchscreen Yes HD type Full HD Panel type IPS Response time 5 ms Screen shape Flat Contrast ratio (typical) 1000:1 Maximum refresh rate 100 Hz Display number of colors 16.7 million colors Touchscreen technology Projected capacitive system Number of simultaneous touchpoints 10 Display brightness (typical) 400 cd/m² Response time measurement type GTG (Gray to Gray) Anti-glare screen Yes Pixel pitch 0.0108 x 0.0108" (0.274 x 0.274 mm) Horizontal scan range 30 - 83 kHz Viewable size, horizontal 20.7" (52.7 cm) Viewable size, vertical 11.7" (29.6 cm) Display diagonal (metric) 23.8" (60.5 cm) Surface hardness 7H Color depth 8 bit Color gamut 86% Flicker-free technology Yes Low Blue Light technology Yes Built-in speaker(s) Yes Number of speakers 2 RMS rated power 2 W Market positioning Business Product color Black Front bezel color Black Built-in USB hub Yes HDMI Yes USB hub version 3.2 Gen 1 (3.1 Gen 1) USB Touch port Yes HDMI ports quantity 1 DisplayPorts quantity 1 Audio output Yes VESA mounting Yes Cable lock slot Yes Height adjustment No Panel mounting interface 100 x 100 mm Wall mountable Yes Cable lock slot type Kensington Tilt adjustment Yes Tilt angle range 5 - 90° On Screen Display (OSD) Yes On Screen Display (OSD) languages German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian Plug and Play Yes Energy efficiency class (SDR) E Energy efficiency class (HDR) Not available Energy consumption (SDR) per 1000 hours 16 kWh Power consumption (typical) 16 W Power consumption (standby) 0.7 W Power consumption (off) 0.3 W AC input voltage 100 - 240 V Power supply type Internal Energy efficiency scale A to G Width (with stand) 22.3" (567 mm) Depth (with stand) 9.98" (253.5 mm) Height (with stand) 15.2" (385 mm) Weight (with stand) 12.3 lbs (5.6 kg) Package width 25" (635 mm) Package depth 25" (635 mm) Package height 15.9" (405 mm) Package weight 15.9 lbs (7.2 kg) Package type Box Quick start guide Yes Positional accuracy 0.0787" (2 mm) Mean time between failures (MTBF) 50000 h
Product Details
Availability date:
2026-03-13
Condition
New
Data sheet
Product color
Black
Package type
Box
HDMI ports quantity
1
DisplayPorts quantity
1
Cable lock slot
Yes
Power supply type
Internal
Display diagonal
23.8"
Display resolution
1920 x 1080 pixels
HD type
Full HD
Plug and Play
Yes
AC input voltage
100 - 240 V
Package weight
15.9 lbs (7.2 kg)
Touchscreen
Yes
Height adjustment
No
Package width
25" (635 mm)
Package depth
25" (635 mm)
Package height
15.9" (405 mm)
VESA mounting
Yes
Panel type
IPS
Built-in speaker(s)
Yes
Quick start guide
Yes
Market positioning
Business
Power consumption (standby)
0.7 W
Power consumption (off)
0.3 W
Power consumption (typical)
16 W
Cable lock slot type
Kensington
Mean time between failures (MTBF)
50000 h
Maximum refresh rate
100 Hz
Tilt angle range
5 - 90°
Native aspect ratio
16:9
Display technology
LED
Response time
5 ms
Screen shape
Flat
Contrast ratio (typical)
1000:1
Display number of colors
16.7 million colors
Display brightness (typical)
400 cd/m²
Anti-glare screen
Yes
Pixel pitch
0.0108 x 0.0108" (0.274 x 0.274 mm)
Horizontal scan range
30 - 83 kHz
Viewable size, horizontal
20.7" (52.7 cm)
Viewable size, vertical
11.7" (29.6 cm)
Display diagonal (metric)
23.8" (60.5 cm)
Surface hardness
7H
Color depth
8 bit
Color gamut
86%
Flicker-free technology
Yes
Low Blue Light technology
Yes
Number of speakers
2
RMS rated power
2 W
Built-in USB hub
Yes
HDMI
Yes
Tilt adjustment
Yes
On Screen Display (OSD)
Yes
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
16 kWh
Energy efficiency scale
A to G
Width (with stand)
22.3" (567 mm)
Depth (with stand)
9.98" (253.5 mm)
Height (with stand)
15.2" (385 mm)
Weight (with stand)
12.3 lbs (5.6 kg)
Panel mounting interface
100 x 100 mm
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Wall mountable
Yes
Response time measurement type
GTG (Gray to Gray)
On Screen Display (OSD) languages
German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Audio output
Yes
Number of simultaneous touchpoints
10
Front bezel color
Black
Touchscreen technology
Projected capacitive system
USB Touch port
Yes
Positional accuracy
0.0787" (2 mm)
Specific References
EAN13
4948570125197
MPN
T2452MSC-B1AG
