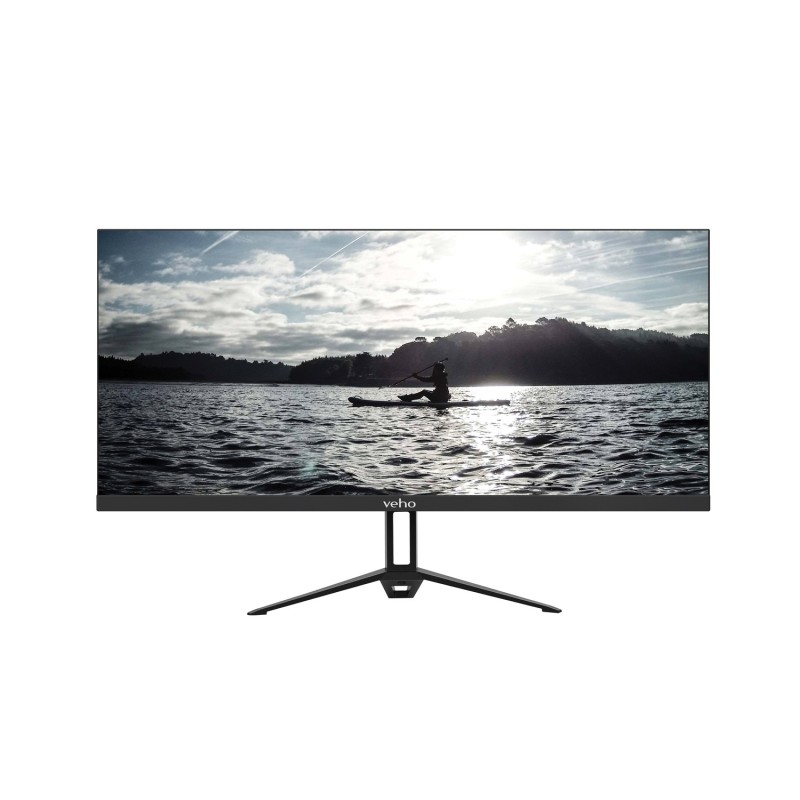

VHM-001-29UW

Data sheet

Product color

Black

Package type

Box

HDMI ports quantity

2

Headphone outputs

1

DisplayPorts quantity

1

Display diagonal

29"

Display resolution

2560 x 1080 pixels

HD type

UltraWide Full HD

Country of origin

China

Package weight

11.7 lbs (5.3 kg)

Touchscreen

No

Master (outer) case width

31.5" (800 mm)

Master (outer) case length

4.57" (116 mm)

Master (outer) case height

17.1" (435 mm)

Master (outer) case weight

11.7 lbs (5.3 kg)

Quantity per master (outer) case

1 pc(s)

Package width

31.5" (800 mm)

Package depth

17" (432 mm)

Package height

4.49" (114 mm)

VESA mounting

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

AC adapter included

Yes

Panel type

ADS

Built-in speaker(s)

No

Input current

4 A

Market positioning

Office

Power consumption (standby)

0.5 W

Manual

Yes

Maximum refresh rate

75 Hz

Native aspect ratio

21:9

Display technology

LED

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

16.7 million colors

Pixel pitch

0.0103 x 0.0103" (0.263 x 0.263 mm)

Built-in camera

No

Built-in USB hub

No

HDMI

Yes

Headphone out

Yes

Energy efficiency class (SDR)

F

Energy efficiency class (HDR)

F

Energy consumption (SDR) per 1000 hours

25 kWh

Energy efficiency scale

A to G

Width (with stand)

27" (686.4 mm)

Depth (with stand)

6.7" (170.1 mm)

Height (with stand)

16.8" (425.7 mm)

Weight (with stand)

8.16 lbs (3.7 kg)

Width (without stand)

27" (686.4 mm)

Depth (without stand)

1.43" (36.4 mm)

Height (without stand)

12.2" (310.9 mm)

Panel mounting interface

75 x 75 mm

Energy consumption (HDR) per 1000 hours

32 kWh

Master (outer) case net weight

8.16 lbs (3.7 kg)

Color temperature

9300 K

AC adapter output voltage

12 V

Display brightness (peak)

300 cd/m²

Specific References

EAN13

5060594761201

MPN

VHM-001-29UW
