Description

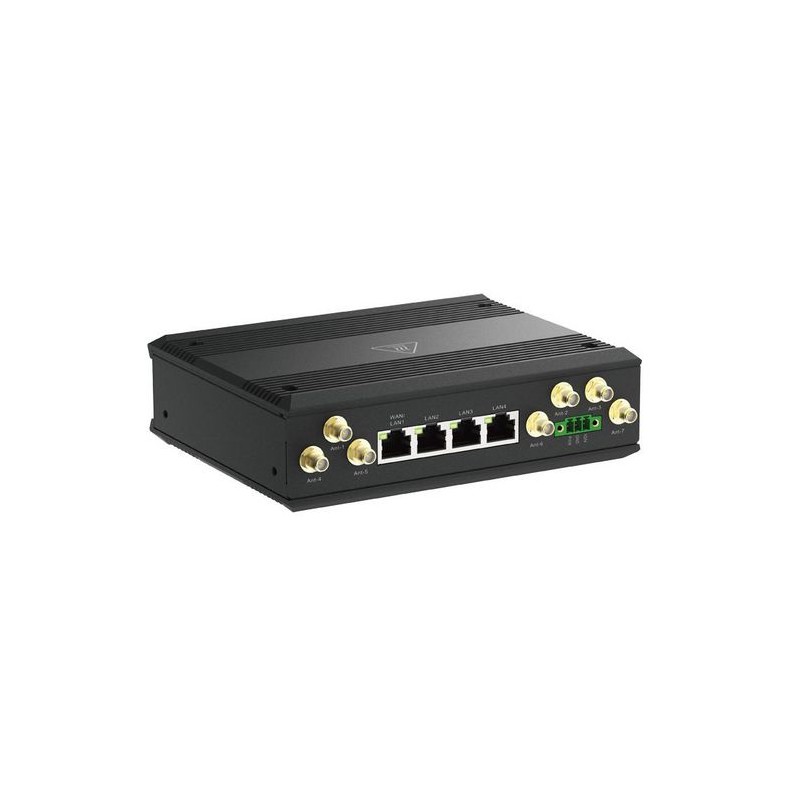

5G Transit Gateway
Device Interface
• Cellular Module: 5G/4G 3GPP Rel. 16
• Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18)
• SIM Slot: 2*SIM(Nano SIM)
• Ethernet: 1*WAN/LAN GE, 3*LAN GE
• WiFi: WiFi6 AX1800(2.4G/5GHz)
• GNSS: GPS/GLONASS
• Ignition Sense: 1*IGN (Ignition Sense)
• Power Input: DC 12-36V TB
• Antenna Connector: 4*SMA(F)-Cellular, 2*SMA(RP-F)-WiFi, 1*SMA(F)-GPS
Performance1
• Maximum Cellular Data Throughput:
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
WAN
• Multi-WAN: Cellular, Ether-WAN, Failover, Load Balance
• Cellular: NAT, Bridge
• Ether-WAN: Dynamic IP, Static IP, PPPoE
• Network Monitor: ICMP Check/DNS Query
Network
• LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
• Port Forward: NAT Loopback, Special AP&ALG, DMZ, Virtual Server & Computer,
VPN Pass-through
• Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
• DDNS: DynDNS, No-IP, Dynamic DO
• QoS: Rule for Service (DSCP, TOS, Well-known Service)
• IGMP, IPv4/v6
Wi-Fi
• Standard: IEEE 802.11 ax/ac/n/g/b/a/h
• Modes: AP Router
• Function: Multi SSID, Auto Channel Selection, Station Isolation
• Security: WPA2-PSK (AES), WPA2, WPA-PSK/WPA2-PSK(AES,TKIP/AES), WPA/WPA2,
WPA3-SAE(AES), WPA2-PSK/WPA3-SAE(AES), WPA3-Enterprise, 802.1x
• Advanced Function: WIDS, Wi-Fi 5G Band Steering
• 2.4GHz Data Rate: 574 Mbps
• 5GHz Data Rate: 1201 Mbps
Service
• Cellular Toolkit: Data usage, SMS, SIM PIN, Network Scan
• Event Handling: Event Management, Notifying Events
• Device Location: GPS or GPS+ GLONASS
• Power Control: Ignition Sense
VPN
• VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE, WireGuard
• IPsec Scenario: Site/Host to Site/host; Dynamic VPN
Security
• Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
• Access Control: Packet Filter, URL Blocking, MAC Control
Administration
• Configuration: Web UI, CLI, Command Script
• Management: SNMPv1/2/3, D-Link D-ECS2 , RESTful API
• System: FW Upgrade, Backup & Restore Config, Reboot & Reset, System Log, NTP
Service
• FTP: FTP, SFTP
• Diagnostic: Diagnostic Tools, Ethernet Port Setup
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: WAN & LAN Interface Network Status, Cellular Modem Status
• Security: VPN Status, Firewall Status
• Statistics&Reports: Connection Session, Login Statistics, Cellular Usage, Cellular Signal
• 5G NR:
n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78
• 4G LTE:
FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71
TDD: B38/B40/B41/B42/B43
Device Interface
• Cellular Module: 5G/4G 3GPP Rel. 16
• Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18)
• SIM Slot: 2*SIM(Nano SIM)
• Ethernet: 1*WAN/LAN GE, 3*LAN GE
• WiFi: WiFi6 AX1800(2.4G/5GHz)
• GNSS: GPS/GLONASS
• Ignition Sense: 1*IGN (Ignition Sense)
• Power Input: DC 12-36V TB
• Antenna Connector: 4*SMA(F)-Cellular, 2*SMA(RP-F)-WiFi, 1*SMA(F)-GPS
Performance1
• Maximum Cellular Data Throughput:
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
WAN
• Multi-WAN: Cellular, Ether-WAN, Failover, Load Balance
• Cellular: NAT, Bridge
• Ether-WAN: Dynamic IP, Static IP, PPPoE
• Network Monitor: ICMP Check/DNS Query
Network
• LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
• Port Forward: NAT Loopback, Special AP&ALG, DMZ, Virtual Server & Computer,
VPN Pass-through
• Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
• DDNS: DynDNS, No-IP, Dynamic DO
• QoS: Rule for Service (DSCP, TOS, Well-known Service)
• IGMP, IPv4/v6
Wi-Fi
• Standard: IEEE 802.11 ax/ac/n/g/b/a/h
• Modes: AP Router
• Function: Multi SSID, Auto Channel Selection, Station Isolation
• Security: WPA2-PSK (AES), WPA2, WPA-PSK/WPA2-PSK(AES,TKIP/AES), WPA/WPA2,
WPA3-SAE(AES), WPA2-PSK/WPA3-SAE(AES), WPA3-Enterprise, 802.1x
• Advanced Function: WIDS, Wi-Fi 5G Band Steering
• 2.4GHz Data Rate: 574 Mbps
• 5GHz Data Rate: 1201 Mbps
Service
• Cellular Toolkit: Data usage, SMS, SIM PIN, Network Scan
• Event Handling: Event Management, Notifying Events
• Device Location: GPS or GPS+ GLONASS
• Power Control: Ignition Sense
VPN
• VPN Tunnel: IPSec, OpenVPN, PPTP,L2TP,GRE, WireGuard
• IPsec Scenario: Site/Host to Site/host; Dynamic VPN
Security
• Firewall: SPI Firewall with Stealth Mode, IPS, Block WAN Ping
• Access Control: Packet Filter, URL Blocking, MAC Control
Administration
• Configuration: Web UI, CLI, Command Script
• Management: SNMPv1/2/3, D-Link D-ECS2 , RESTful API
• System: FW Upgrade, Backup & Restore Config, Reboot & Reset, System Log, NTP
Service
• FTP: FTP, SFTP
• Diagnostic: Diagnostic Tools, Ethernet Port Setup
Status
• Network Status: Connection information, Cellular Signal Quality
• Cellular Mobile: WAN & LAN Interface Network Status, Cellular Modem Status
• Security: VPN Status, Firewall Status
• Statistics&Reports: Connection Session, Login Statistics, Cellular Usage, Cellular Signal
• 5G NR:
n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78
• 4G LTE:
FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71
TDD: B38/B40/B41/B42/B43
- 5G SA & NSA with dual SIM slots for cellular WAN failover redundancy
- 4 x Gigabit Ethernet ports
- Wi-Fi 6 AX1800 to connect multiple on-board devices
- 1 x IGN (Ignition Sense) for power control function
- GNSS for GPS/GLONASS
- -30 to 70°C operating temperature to resist harsh environments
- Wide voltage range input: DC 12-36V
- Mounting bracket allows for optimal device placement
Specifications
Design
| Device type | Cellular network gateway |
| LED indicators | Yes |
| Product colour | Black |
| Reset button | Yes |
Ethernet LAN features
| DHCP server | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
Mobile network
| 4G standard | LTE |
| 5G standard | Sub6 NSA/Sub6 SA |
| Data network | 4G/5G |
| Number of SIM cards | 2 |
Operational conditions
| Operating relative humidity (H-H) | 10 - 95 % |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Performance
| Antenna connector type | SMA |
| Antenna type | External |
| Antennas quantity | 7 |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
Power
| Input voltage | 12 - 36 V |
| Power source type | DC |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Network address translation (NAT) | Yes |
| Port forwarding | Yes |
| Security algorithms | AES/WPA/WPA-PSK/WPA2/WPA2-PSK/WPA3-Enterprise/WPA3-SAE |
Vendor information
| Brand Name | D-Link |
| Warranty | 3 Month(s) |
Wireless LAN features
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 1201/574 Mbit/s |
Product Details
2026-03-20
New
Data sheet
- Reset button
- Yes
- DHCP server
- Yes
- Firewall security
- Yes
- DMZ support
- Yes
- Data network
- 4G/5G
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Netzwerkstandards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
- Ethernet-LAN-Anschlüsse (RJ-45)
- 4
- Antennen Menge
- 7
- Netzwerkadressübersetzung (NAT)
- Yes
- Port-Weiterleitung
- Yes
- Eingangsspannung
- 12 - 36 V
- Antenna type
- External
- Wi-Fi
- Yes
- LED-Anzeigen
- Yes
- Ethernet-LAN
- Yes
- Wi-Fi-Standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
- Stromquellentyp
- DC
- Sicherheitsalgorithmen
- AES/WPA/WPA-PSK/WPA2/WPA2-PSK/WPA3-Enterprise/WPA3-SAE
- Gerätetyp
- Cellular network gateway
- Brand Name
- D-Link
- Warranty
- 3 Month(s)
- Betriebstemperatur (TT)
- -30 - 70 °C
- Lagertemperatur (TT)
- -40 - 85 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 95 %
- Produktfarbe
- Black
- 4G-Standard
- LTE
- 5G standard
- Sub6 NSA/Sub6 SA
- Ethernet-LAN-Schnittstellentyp
- Gigabit Ethernet
- Unterstützte WLAN-Datenübertragungsraten
- 1201/574 Mbit/s
- Anzahl der SIM-Karten
- 2
- Antenna connector type
- SMA
Specific References
- UPC
- 790069480706
- EAN13
- 0790069480706
- MPN
- DTM-550-G
