VM6404HB-AT-G

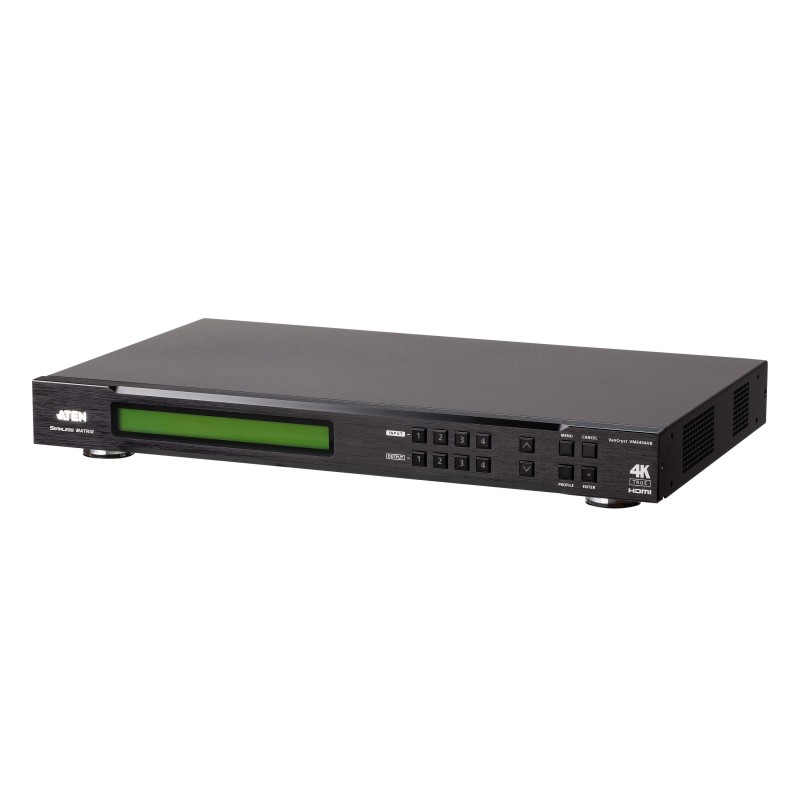

ATEN VM6404HB-AT-G, Scaling matrix switcher, 18 Gbit/s, 600 MHz, 4096 x 2160 pixels, 4096 x 2160. 3840 x 2160, Black
Description
True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN's VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays.
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x KC06-0012-B07G Mounting Kit
1x User Instructions
ATEN VM6404HB-AT-G. Product type: Scaling matrix switcher, Data transfer rate: 18 Gbit/s, Maximum pixel clock: 600 MHz. Housing color: Black, Housing material: Metal, Rack capacity: 1U. Power consumption (typical): 43.7 W, AC input voltage: 100-240 V, AC input frequency: 50-60 Hz. Quantity per master (outer) case: 1 pc(s), Master (outer) case weight: 11.5 lbs (5.2 kg), Master (outer) case length: 20.3" (515 mm). Width: 17" (432.4 mm), Depth: 10.3" (262.3 mm), Height: 1.73" (44 mm)
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x KC06-0012-B07G Mounting Kit
1x User Instructions
ATEN VM6404HB-AT-G. Product type: Scaling matrix switcher, Data transfer rate: 18 Gbit/s, Maximum pixel clock: 600 MHz. Housing color: Black, Housing material: Metal, Rack capacity: 1U. Power consumption (typical): 43.7 W, AC input voltage: 100-240 V, AC input frequency: 50-60 Hz. Quantity per master (outer) case: 1 pc(s), Master (outer) case weight: 11.5 lbs (5.2 kg), Master (outer) case length: 20.3" (515 mm). Width: 17" (432.4 mm), Depth: 10.3" (262.3 mm), Height: 1.73" (44 mm)
| Product type | Scaling matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| Extended display identification data (EDID) | Yes |
| Supported resolutions | 4096 x 2160. 3840 x 2160 |
| Housing color | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Control type | Buttons |
| On/off switch | Yes |
| LED indicators | Yes |
| Handheld remote control | Yes |
| Built-in display | Yes |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| Power consumption (typical) | 43.7 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 1 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Heat dissipation | 202 BTU/h |
| Heat dissipation (max) | 205 BTU/h |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case weight | 11.5 lbs (5.2 kg) |
| Master (outer) case length | 20.3" (515 mm) |
| Master (outer) case width | 13.3" (338 mm) |
| Master (outer) case height | 6.1" (155 mm) |
| Master (outer) case net weight | 8.42 lbs (3.82 kg) |
| Harmonized System (HS) code | 85299097 |
| Width | 17" (432.4 mm) |
| Depth | 10.3" (262.3 mm) |
| Height | 1.73" (44 mm) |
| Weight | 8.42 lbs (3.82 kg) |
| Package width | 13.3" (338 mm) |
| Package depth | 20.3" (515 mm) |
| Package height | 6.1" (155 mm) |
| Package weight | 11.5 lbs (5.2 kg) |
| Cables included | AC |
| Rack mount kit | Yes |
| Manual | Yes |
| IR receiver included | Yes |
Product Details
2026-04-28
New
Data sheet
- Ethernet LAN (RJ-45) ports
- 1
- Weight
- 8.42 lbs (3.82 kg)
- Harmonized System (HS) code
- 85299097
- AC input frequency
- 50-60 Hz
- Maximum resolution
- 4096 x 2160 pixels
- Width
- 17" (432.4 mm)
- Height
- 1.73" (44 mm)
- Data transfer rate
- 18 Gbit/s
- AC input voltage
- 100-240 V
- Depth
- 10.3" (262.3 mm)
- Package weight
- 11.5 lbs (5.2 kg)
- Master (outer) case width
- 13.3" (338 mm)
- Master (outer) case length
- 20.3" (515 mm)
- Master (outer) case height
- 6.1" (155 mm)
- Master (outer) case weight
- 11.5 lbs (5.2 kg)
- Quantity per master (outer) case
- 1 pc(s)
- Package width
- 13.3" (338 mm)
- Package depth
- 20.3" (515 mm)
- Package height
- 6.1" (155 mm)
- Product type
- Scaling matrix switcher
- Built-in display
- Yes
- LED indicators
- Yes
- On/off switch
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
- Cables included
- AC
- 3D
- Yes
- Control type
- Buttons
- Input current
- 1 A
- Rack capacity
- 1U
- Manual
- Yes
- Housing material
- Metal
- Handheld remote control
- Yes
- Power consumption (typical)
- 43.7 W
- HDCP
- Yes
- Master (outer) case net weight
- 8.42 lbs (3.82 kg)
- Housing color
- Black
- HDCP version
- 2.2
- Extended display identification data (EDID)
- Yes
- HDMI input ports quantity
- 4
- HDMI output ports quantity
- 4
- Rack mounting
- Yes
- Heat dissipation
- 202 BTU/h
- Rack mount kit
- Yes
- Supported resolutions
- 4096 x 2160. 3840 x 2160
- RS-232 ports
- 1
- Maximum pixel clock
- 600 MHz
- IR receiver included
- Yes
- Remote (IR) input
- 1
- Heat dissipation (max)
- 205 BTU/h
Specific References
- EAN13
- 4719264649608
- MPN
- VM6404HB-AT-G
