VE801-AT-G - 784440

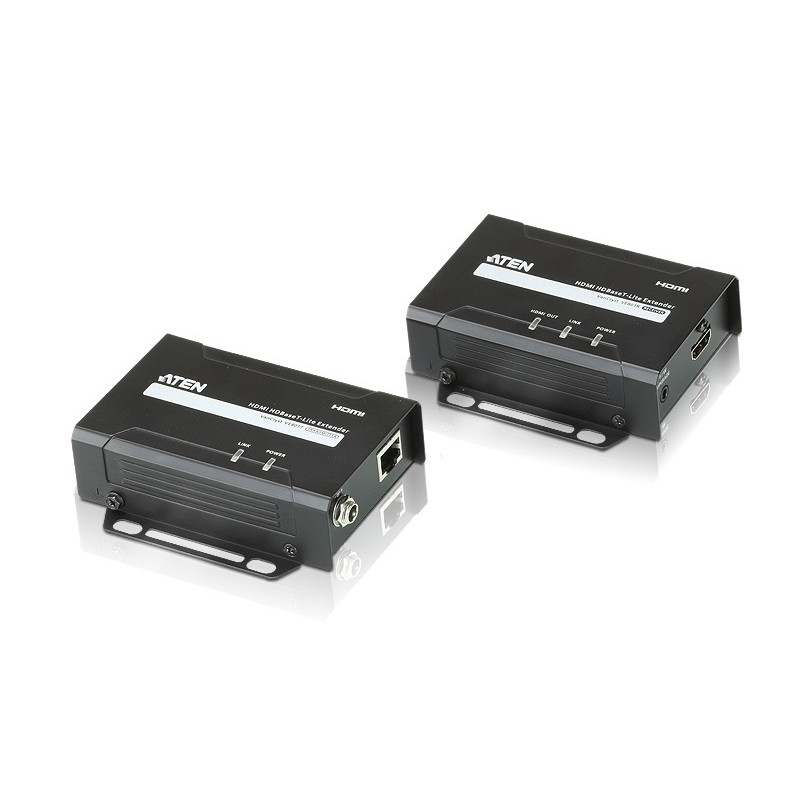

ATEN VE801-AT-G, 3840 x 2160 pixels, AV transmitter & receiver, 2755.9" (70 m), Wired, Black, HDCP
Description
The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
1x VE801T/R HDMI HDBaseT-Lite Extender
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions
ATEN VE801-AT-G. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5, Cat6, Cat6a. Connectivity technology: Wired. Weight: 27.5 oz (780 g), Receiver dimensions (WxDxH): 1.35 x 3.88 x 1.18" (34.3 x 98.6 x 30 mm), Receiver weight: 8.82 oz (250 g). Package width: 2.32" (59 mm), Package depth: 9.41" (239 mm), Package height: 6.3" (160 mm). Master (outer) case width: 9.84" (250 mm), Master (outer) case length: 12.8" (325 mm), Master (outer) case height: 6.89" (175 mm)
1x VE801T/R HDMI HDBaseT-Lite Extender
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions
ATEN VE801-AT-G. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5, Cat6, Cat6a. Connectivity technology: Wired. Weight: 27.5 oz (780 g), Receiver dimensions (WxDxH): 1.35 x 3.88 x 1.18" (34.3 x 98.6 x 30 mm), Receiver weight: 8.82 oz (250 g). Package width: 2.32" (59 mm), Package depth: 9.41" (239 mm), Package height: 6.3" (160 mm). Master (outer) case width: 9.84" (250 mm), Master (outer) case length: 12.8" (325 mm), Master (outer) case height: 6.89" (175 mm)
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat6, Cat6a |
| Maximum transfer distance | 2755.9" (70 m) |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| Product color | Black |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight | 27.5 oz (780 g) |
| Receiver dimensions (WxDxH) | 1.35 x 3.88 x 1.18" (34.3 x 98.6 x 30 mm) |
| Receiver weight | 8.82 oz (250 g) |
| Transmitter dimensions (WxDxH) | 1.35 x 3.88 x 1.18" (34.3 x 98.6 x 30 mm) |
| Transmitter weight | 8.47 oz (240 g) |
| Package width | 2.32" (59 mm) |
| Package depth | 9.41" (239 mm) |
| Package height | 6.3" (160 mm) |
| Package weight | 29.7 oz (841 g) |
| AC adapter included | Yes |
| Compliance certificates | RoHS |
| Master (outer) case width | 9.84" (250 mm) |
| Master (outer) case length | 12.8" (325 mm) |
| Master (outer) case height | 6.89" (175 mm) |
| Master (outer) case weight | 10.1 lbs (4.6 kg) |
| Master (outer) case net weight | 8.6 lbs (3.9 kg) |
| Quantity per master (outer) case | 5 pc(s) |
Product Details
784440
12 Items
New
Data sheet
- Type
- AV transmitter & receiver
- Product color
- Black
- Connectivity technology
- Wired
- Weight
- 27.5 oz (780 g)
- Maximum resolution
- 3840 x 2160 pixels
- Package weight
- 29.7 oz (841 g)
- Material
- Metal
- Master (outer) case width
- 9.84" (250 mm)
- Master (outer) case length
- 12.8" (325 mm)
- Master (outer) case height
- 6.89" (175 mm)
- Master (outer) case weight
- 10.1 lbs (4.6 kg)
- Quantity per master (outer) case
- 5 pc(s)
- Package width
- 2.32" (59 mm)
- Package depth
- 9.41" (239 mm)
- Package height
- 6.3" (160 mm)
- LED indicators
- Yes
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Receiver dimensions (WxDxH)
- 1.35 x 3.88 x 1.18" (34.3 x 98.6 x 30 mm)
- Receiver weight
- 8.82 oz (250 g)
- Compliance certificates
- RoHS
- HDCP
- Yes
- Supported video modes
- 1080p
- Maximum transfer distance
- 2755.9" (70 m)
- Master (outer) case net weight
- 8.6 lbs (3.9 kg)
- Cable types supported
- Cat5, Cat6, Cat6a
- Bandwidth
- 340 MHz
- Transmitter weight
- 8.47 oz (240 g)
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- Transmitter dimensions (WxDxH)
- 1.35 x 3.88 x 1.18" (34.3 x 98.6 x 30 mm)
- Number of HDMI outputs
- 1
- HDMI in
- 1
Specific References
- EAN13
- 4719264642715
- MPN
- VE801-AT-G
