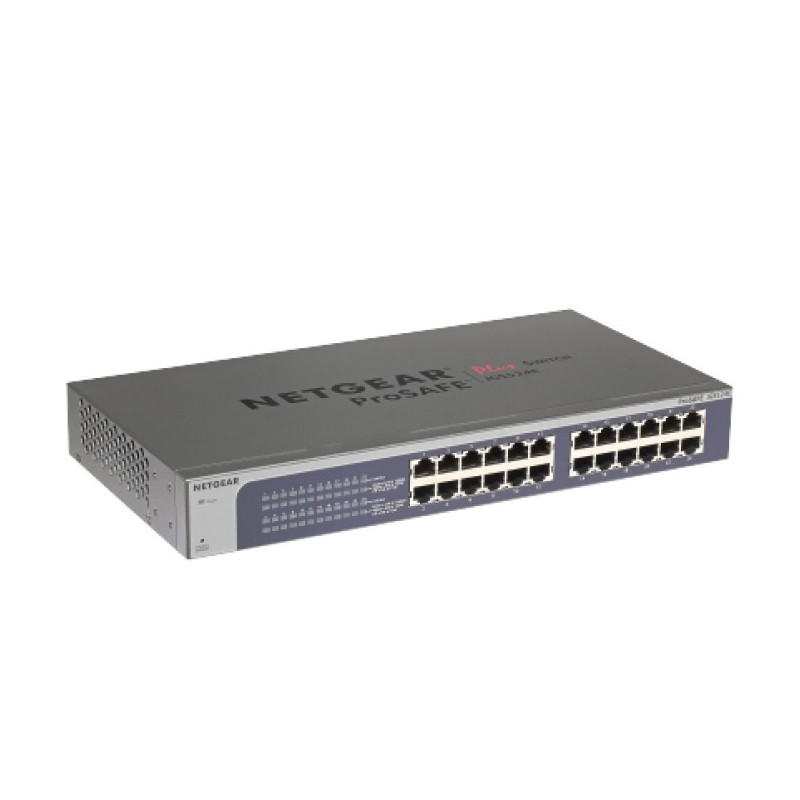

JGS524E-200EUS

More Capabilities beyond Plug-and-play Connectivity
Today's growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSafe Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate connection problems via cable diagnostic test. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSafe Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSafe Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user.

Features
- ProSafe Plus Switch delivers network monitoring, traffic prioritization and VLAN
- 24 ports deliver up to 2000 Mbps of dedicated, non-blocking bandwidth per port
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Gigabit speed with QoS, VLAN and network monitoring
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention and broadcast storm controls
- IGMP snooping v1, v2 and v3 support for multicast optimization
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support

NETGEAR Green
- Up to 60% lower power consumption than the non-Green version
- Auto power-down and cable-length detection for energy savings
- Packaging manufactured with at least 80% recycled materials

NETGEAR JGS524E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Rack mounting

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support	No
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	100
MAC address table	16000 entries
Switching capacity	48 Gbit/s
Store-and-forward	Yes
Number of trunks	16
Jumbo frames support	Yes
Jumbo frames	9000
DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes
Multicast support	Yes
Rack mounting	Yes
Product color	Gray
LED indicators	Activity, Link, PoE, Power, Speed, Status
Safety	UL/cUL 60950, CB, CCC
Compatible operating systems	Windows 7, XP, Vista
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.9 A
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Width	12.9" (328 mm)
Depth	6.69" (170 mm)
Height	1.69" (43 mm)
Weight	3.09 lbs (1.4 kg)
Cables included	LAN (RJ-45)
User guide	Yes
Manual	Yes
Harmonized System (HS) code	85176990
