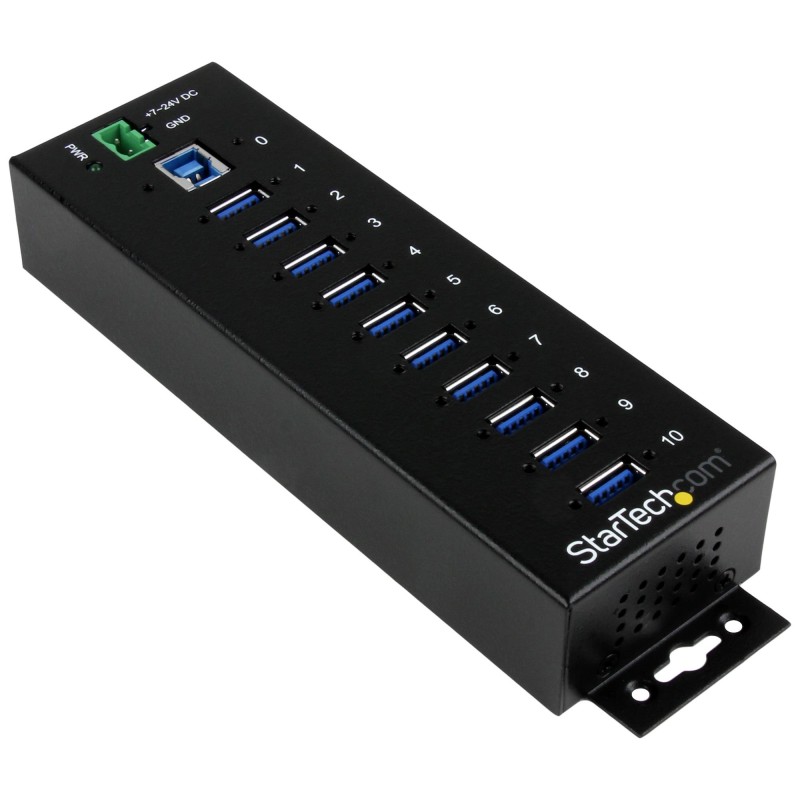

ST1030USBM

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps

This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers ten connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need it Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works With Your Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy USB 3.2 Gen 1 and 1.x peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com ST1030USBM. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product color: Black, Housing material: Steel. Input voltage: 7 - 24 V. Width: 2.2" (56 mm), Depth: 7.8" (198 mm), Height: 1.22" (31 mm). Package width: 6.65" (169 mm), Package depth: 9.69" (246 mm), Package height: 2.24" (57 mm)

Ports quantity	10
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	10
Terminal block port	Yes
Data transfer rate	5000 Mbit/s
Product color	Black
Housing material	Steel
Surge protection	Yes
LED indicators	Power
Cable length	80" (2.03 m)
Certification	RoHS, CE, FCC, TAA, REACH
Input voltage	7 - 24 V
Width	2.2" (56 mm)
Depth	7.8" (198 mm)
Height	1.22" (31 mm)
Weight	12.6 oz (357 g)
Package width	6.65" (169 mm)
Package depth	9.69" (246 mm)
Package height	2.24" (57 mm)
Package weight	21.2 oz (600 g)
Cables included	USB
Manual	Yes
Terminal block included	Yes
DIN rail kit included	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Mean time between failures (MTBF)	119388 h
Master (outer) case width	17.5" (444 mm)
Master (outer) case length	20.7" (526 mm)
Master (outer) case height	13.3" (338 mm)
Quantity per master (outer) case	25 pc(s)
Harmonized System (HS) code	84719000
Chipset	Genesys Logic - GL3520
