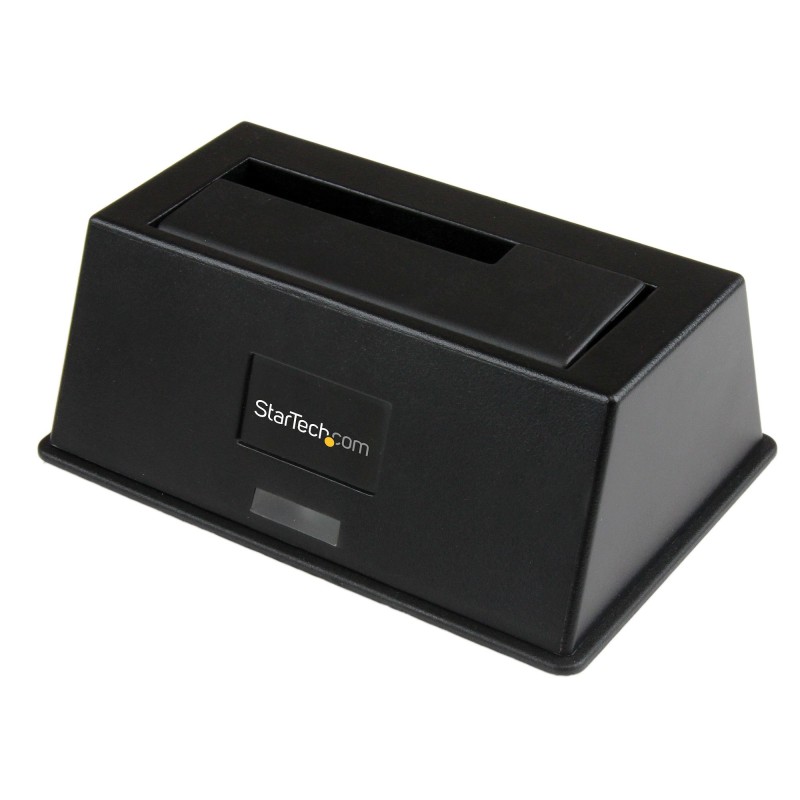

SDOCKU33BV - SDOCKU33BV

SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock

The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage


StarTech.com SDOCKU33BV. Storage media type: HDD, SSD, Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B. Maximum data transfer rate: 6 Gbit/s, LED indicators: Activity, Power. AC input voltage: 100-240 V, Output voltage: 12 V. Weight: 11.2 oz (318 g)

Storage media type	HDD, SSD
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
DC-in jack	Yes
Maximum data transfer rate	6 Gbit/s
Plug and Play	Yes
LED indicators	Activity, Power
On/off switch	Yes
UASP support	Yes
Built-in fan	No
AC input voltage	100-240 V
Output voltage	12 V
Weight	11.2 oz (318 g)
Package dimensions (WxDxH)	3.62 x 6.3 x 6.69" (92 x 160 x 170 mm)
Package width	6.34" (161 mm)
Package depth	6.69" (170 mm)
Package height	3.7" (94 mm)
Package weight	24.8 oz (704 g)
AC adapter included	Yes
Cables included	USB
Manual	Yes
Included power plug types	EU, NA, UK
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1)
Chipset	ASMedia - ASM1053 - 6G
Compliance certificates	CE, RoHS
Harmonized System (HS) code	84733080
Master (outer) case width	7.36" (187 mm)
Master (outer) case length	18.7" (476 mm)
Master (outer) case height	15.2" (387 mm)
Quantity per master (outer) case	10 pc(s)
Sustainability compliance	Yes
