HO165PTB - W128254409

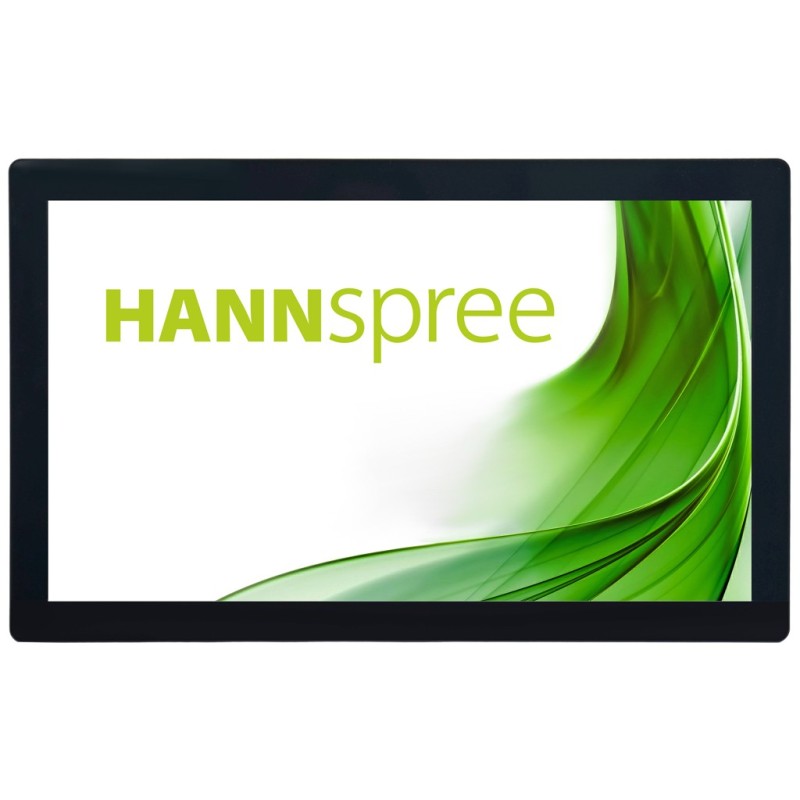

The HANNspree HO165PTB 15.6’’ 16:9 Open-Frame monitor delivers a high performance display solution.

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration.

The HANNspree HO165PTB is an ideal display for integration in kiosk, totem and a perfect solution for interactive digital signage, In-store Retail, Gaming and many other sectors.

THE OPEN FRAME – THE INDUSTRIAL DISPLAY SOLUTION

The HANNspree HO165PTB 15.6’’ 16:9 Open-Frame monitor delivers a high performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The HANNspree HO165PTB is an ideal display for integration in kiosk, totem and a perfect solution for interactive digital signage, Instore Retail, Gaming and many other sectors.

Possible Applications:

Gaming/Casino, Entertainment Slot Machines, Video lottery Machines, Totem Kiosks, Medicine and ticketing, Education, Self-service terminals, Industrial control…

TOUCH-THROUGH GLASS

We are pleased to share the latest product update to our HO Series – Open Frame PCAP touch displays: support for “touch-through glass” capability.

Touch-through glass enables touch interactivity directly through an additional glass cover (no air gap and glass up to 6mm thick). Ideal for new emerging applications, including interactive display storefront windows, real estate office displays and in-store and restaurant POS and essential when applications demand environmentally sealed & secured enclosures.

The touch-through glass capability is implemented by a firmware upgrade, no hardware alterations are involved. For more details contact your local HSP office / representative or send us a request via the product inquiry form.

This new feature applies to the following models: HO101HTB, HO161HTB, HO165PTB, HO225DTB, HO225HTB, HO320HTB, HO430HTB.

PROJECTED CAPACITIVE (PCAP) TOUCH TECHNOLOGY

Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touch points, the HANNSpree HO165PTB Monitor allows everyone to play and collaborate at the same time.

The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — allowing you to work smarter and more efficiently.

There’s no need for additional controllers – all they have to do is just reach out and touch the screen. It is certified for Windows 10 and designed to offer superior performance as well as intuitive control, so you can be more productive and do everything you want to do smoothly and quickly.

With Projected Capacitive Touch, users can enjoy a smoother and more accurate touch display experience with increased interactivity. Thanks to the glass overlay this technology is highly durable, the Touch performance is unaffected by everyday use and mishaps such as dirt, dust, condensation, liquid spills or cleaning solutions.

This technology delivers super fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today’s touch-enabled applications.

MOUNTING OPTIONS

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The display supports rear VESA and external mounting brackets for multiple mounting options. The brackets provide the benefits of easy installation, and flexibility for different applications.

- Supports Multiple Mounting Options
- Slim profile with narrow edges

SCRATCH RESISTANT – MULTI-TOUCH SCREEN WITH 6H SURFACE HARDNESS

6H scratch resistant surface hardness ensures durability, as well as a consistent high quality touch experience.

Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions.

Our toughened Hard Glass fronted LED Monitors (6H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long life solution.

It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

CONNECTIVITY

The HANNspree HO165PTB features a host of connectivity options that include VGA, HDMI and DP.

The HO165PTB Open Frame Touch Monitor ensure that your monitor is more compatible and ready to handle all of your content.

Enabling touch is easy! Simply connect the USB cable from your PC to the monitor’s USB upstream port, and connect one of the video inputs to project images onscreen.

Hannspree Open Frame HO165PTB. Display diagonal: 15.6", Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Operating hours (hours/days): 24/7. Product color: Black

Display diagonal	15.6"
Display technology	LED
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
HD type	Full HD
Touchscreen	Yes
Number of simultaneous touchpoints	10
Multi-touch	Yes
Native aspect ratio	16:9
Response time	25 ms
Contrast ratio (typical)	700:1
Contrast ratio (dynamic)	10000000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colors	262144 colors
Pixel pitch	0.00706 x 0.00706" (0.179 x 0.179 mm)
Active display area (W x H)	13.6 x 7.66" (345.2 x 194.5 mm)
Display diagonal (metric)	15.6" (39.6 cm)
Panel life	15000 h
Horizontal scan range	31.5 - 80 kHz
Vertical scan range	60 - 75 Hz
Hardness	6H
Transparency	85%
HDMI ports quantity	1
DVI port	No
DisplayPorts quantity	1
USB port	Yes
Ethernet LAN	No
Wi-Fi	No
VGA (D-Sub) input ports	1
DC-in jack	Yes
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	3 W
Product color	Black
Placement supported	Indoor
VESA mounting	Yes
Orientation	Horizontal/Vertical
Panel mounting interface	100 x 100 mm
Purpose	Universal
On Screen Display (OSD)	Yes
Number of OSD languages	8
Operating hours (hours/days)	24/7
Smart modes	Game, Movie, Standard
International Protection (IP) code	IP65
Power consumption (typical)	15 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	C
Energy consumption (SDR) per 1000 hours	7 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	Yes
Energy efficiency scale	A to G
Computer system	No
Built-in processor	No
Display width	15.2" (387.3 mm)
Display depth	1.57" (40 mm)
Display height	9.31" (236.4 mm)
Display weight	5.42 lbs (2.46 kg)
Cables included	AC, HDMI, USB
Certification	CE, EU
Harmonized System (HS) code	85285210
Compliance certificates	RoHS
Input current	2.5 A
Glass protection	Yes
Voltage	12 V
