ARMPIVOTB - ARMPIVOTB

VESA Monitor Mount | Desk/Grommet Mount | Height Adjustable | For up to 17.7lb Monitors

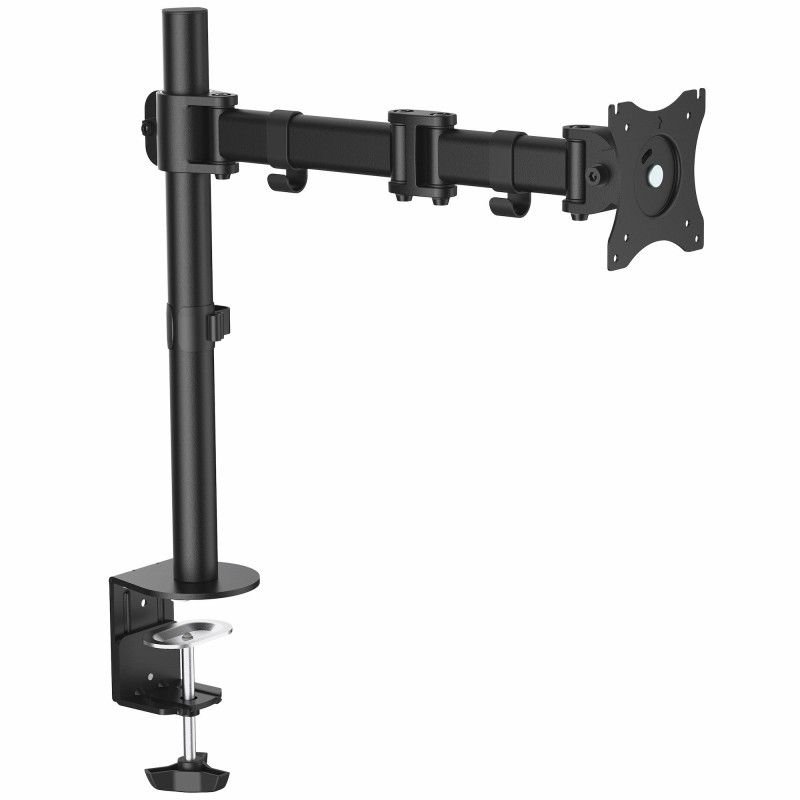

Save desk space and position your monitor for comfortable viewing with this desk-mount monitor arm, made of heavy-duty steel. It features an articulating arm that enables you to tilt, swivel and rotate your screen, to create a more ergonomic workspace and enhance productivity.

Mount your Monitor to Save Valuable Space

The single monitor mount lets you free up space by suspending your display off of your desk. The VESA mount (75x75, 100x100) monitor arm supports a flat-panel display 13" to 34" in size and up to 17.7 lb. (8 kg) in weight.

Rugged Steel Design

With its robust steel construction, the heavy duty monitor arm provides long-lasting performance.

Adjust the Position of your Monitor with Ease

The articulating monitor arm gives you maximum workspace flexibility. You can extend the arm up to 17” (428 mm), swivel 180 degrees and tilt up to 90 degrees to find the perfect viewing angle. The arm offers smooth 360-degree screen rotation, so it’s easy to switch from landscape to portrait position. You can also adjust the height of your monitor along the pole to your desired viewing position, to a maximum height of 17.7" (450 mm).

Easy Installation

The desk clamp monitor mount makes it easy to mount your VESA mount display above your desk, using the included C-clamp or grommet mount. For easier mounting, the VESA mount features notches that let you pre-set the mounting screw, then slide the monitor in place and tighten the screw. To help keep your work area free of clutter, the monitor arm also features cable management clips that keep your cables neatly out of sight.

The ARMPIVOTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com ARMPIVOTB. Mounting: Clamp, Maximum weight capacity: 17.6 lbs (8 kg), Minimum screen size: 13", Maximum screen size: 27", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Tilt angle range: -45 - 45°. Product color: Black

Number of displays supported	1
Maximum screen size	27"
Mounting type	Desk
Maximum weight capacity	17.6 lbs (8 kg)
Minimum screen size	13"
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Mounting	Clamp
Height adjustment	Yes
Tilt angle range	-45 - 45°
Swivel angle	180°
Angle of rotation	360°
Cable management	Yes
Product color	Black
Housing material	Steel
Width	6.3" (160 mm)
Depth	18.2" (462 mm)
Height	4.25" (108 mm)
Weight	6.61 lbs (3 kg)
Length	4.25" (108 mm)
Package width	6.57" (167 mm)
Package depth	19.1" (484 mm)
Package height	4.41" (112 mm)
Package weight	8.38 lbs (3.8 kg)
Wrench included	Yes
Wrench type	Hexagonal wrench
Clamp included	Yes
Number of cable clips	1
Number of rubber pads included	5 pc(s)
Screws included	Yes
Number of screws	9
Number of washers included	4
Grommet base plate included	Yes
Grommet plate included	Yes
Manual	Yes
Compliance certificates	RoHS
Certification	CE, REACH
Master (outer) case width	13.7" (348 mm)
Master (outer) case length	19.5" (496 mm)
Master (outer) case height	9.65" (245 mm)
Quantity per master (outer) case	4 pc(s)
Harmonized System (HS) code	85299097
