EBF-26-6080-G-BAAA - W128899983

Name: Equip EBF-26-6080-G-BAAA
Brand: Equip
SKU: W128899983
Price: 587.8 CHF
Availability: InStock

Reference W128899983

Brand Equip

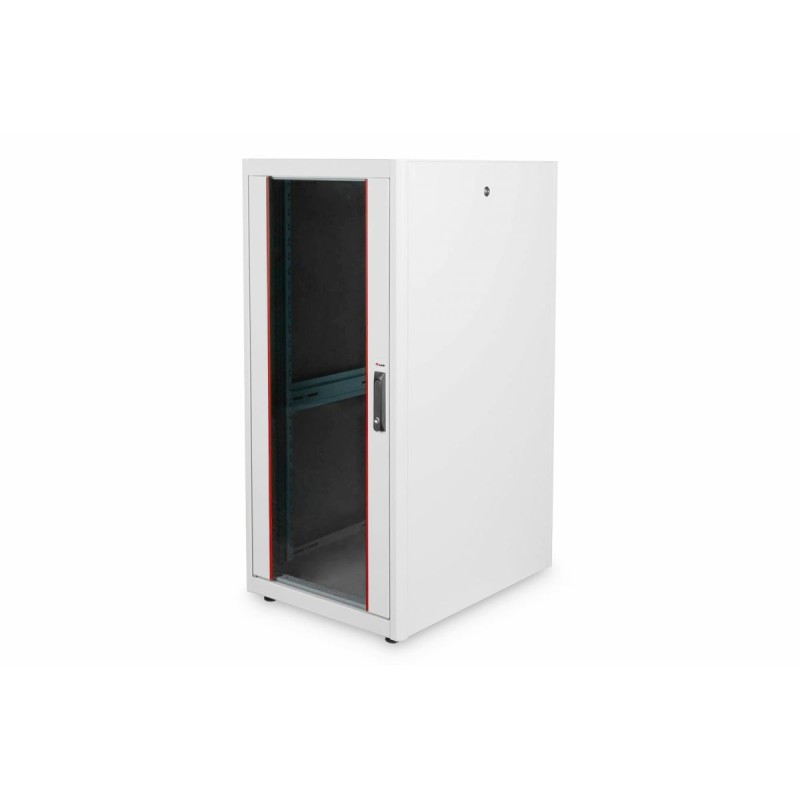

Equip EBF-26-6080-G-BAAA, Freestanding rack, 26U, 1322.8 lbs (600 kg), Key lock, Rack rails, Adjustable feet

CHF587.8

Tax included

CHF543.8 Tax excluded

Delivery in 4-5 days

Quantity

Last items in stock

In stock: 1 Item

Description
Product Details

Description

These cabinets, of the Basic Flex Line, are engineered for the efficient and user-friendly installation of both active and passive network components, prioritizing streamlined cable management. Crafted from steel sheets up to 1.5 mm thick, every cabinet guarantees excellent stability, attributed to a unique plate curving technique, forming a sturdy steel framework. They are finished with a powder coating in shades of grey (RAL 7035) and black (RAL 9005). For challenging set-up locations that are less accessible, the cabinet is designed to be disassembled. The doors are easily detachable, and their stops can be switched between right and left orientations. Additionally, the roof is prepped for the integration of an air ventilation unit. Inside, each cabinet houses two sets (4 pieces) of 483 mm (19”) profile rails. These rails, galvanized and marked with height units readable from both directions, are adjustable in depth. To facilitate extensive equipment installations, they're paired with supplementary depth support bars. Cable management is central to the design. The cabinet base features a punched-out cable entry shielded with a metal plate. For the broader 800 mm width cabinets, there are added punched-out cable entries covered with plastic on both sides. These entries are replicated on the roof, with a single one for 600 mm width cabinets and three for the 800 mm width ones. To cater to diverse operational needs, a wide assortment of accessories, including cable management tools and shelves, is readily available.

Equip EBF-26-6080-G-BAAA. Type: Freestanding rack, Rack capacity: 26U, Maximum weight capacity: 1322.8 lbs (600 kg), Key lock, Adjustable feet, Rack rails. Weight: 130.1 lbs (59 kg). Product color: Light grey

Rack capacity	26U
Type	Freestanding rack
Maximum weight capacity	1322.8 lbs (600 kg)
Maximum weight capacity (rolling)	1322.8 lbs (600 kg)
Product color	Light grey
Material	Steel
Frame type	Closed
Product design	4-post
Back door construction	Steel
Front door construction	Tempered glass
Side panel construction	Steel
Removable back door	Yes
Removable front door	Yes
Removable side panels	Yes
Side panels included	Yes
Key lock	Yes
Back door key lock	Yes
Front door key lock	Yes
Side panel key lock	Yes
Rack rails	Yes
Rack rail thickness	0.0591" (1.5 mm)
Adjustable stand	No
Adjustable depth	No
Adjustable feet	Yes
Feet adjustment	1.18" (3 cm)
Cooling type	Passive
Soundproof	No
Main PDU	No
Monitoring	No
Cable management	No
Stabilizing foot screw	Yes
Number of stabilizing foot screws	4 pc(s)
Castor wheels	No
Door opening angle	120°
Assembly required	No
Preassembled	Yes
Built-in UPS	No
Size (imperial)	22.4"
Width	23.6" (600 mm)
Depth	31.5" (800 mm)
Height	51.2" (1300 mm)
Inner width	23.4" (59.5 cm)
Inner depth	31.3" (79.5 cm)
Inner height	45.5" (115.5 cm)
Weight	130.1 lbs (59 kg)
Mounting depth (min)	16.9" (43 cm)
Mounting depth (max)	29.5" (75 cm)
Screws included	No
Plinth panel	No
Temperature sensor	No
Wall mounting kit	No
Mounting kit	No
Grounding kit	Yes
Quick installation guide	No
Manual	Yes
Package width	26.8" (680 mm)
Package depth	34.6" (880 mm)
Package height	56.7" (1440 mm)
Pallet net height	5.91" (15 cm)
Pallet net length	34.6" (88 cm)
Pallet net width	26.8" (68 cm)
Pallet net weight	17.6 lbs (8 kg)
Total carbon footprint (kg of CO2e)	10.089
Country of origin	Turkey
Harmonized System (HS) code	853710980019
Quantity per master (outer) case	1 pc(s)
