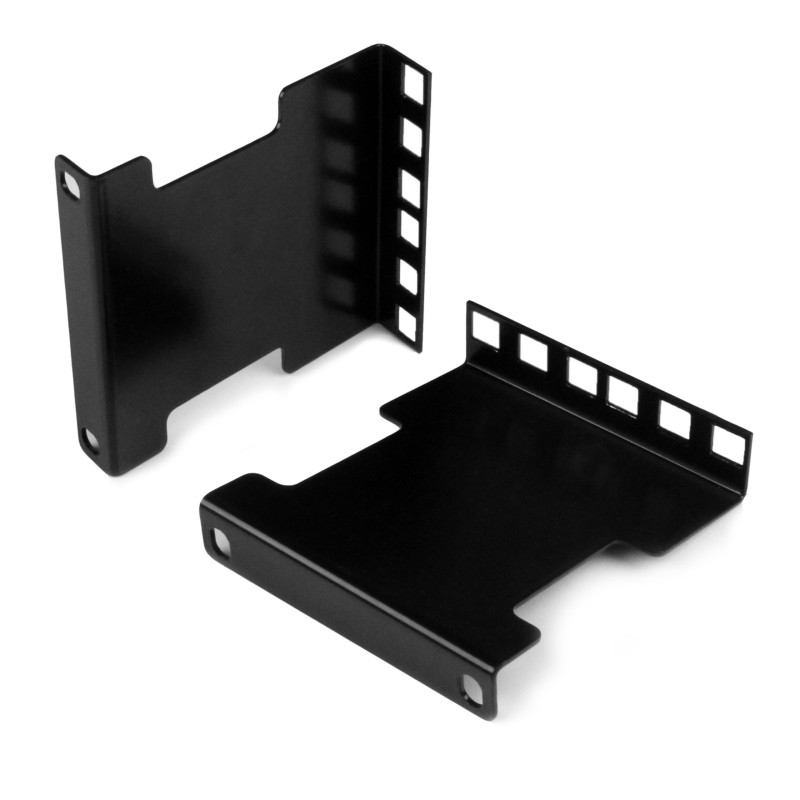

RDA2U - RDA2U

Rail Depth Adapter Kit | Recess or Extend | Universal | TAA Compliant

This server rack depth extender adapter kit extends or reduces the mounting depth of two units (2U) in your server rack by up to four inches. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Accommodate Varying Equipment Sizes

Mount equipment in your server rack up to four inches longer or shorter than the rack's mounting depth and increase your rack’s storage capabilities. If using the 2U rack extender in a two-post installation, they can support a total weight load of 20 lb. (9 kg) and in a four-post installation, they can support a total weight load of 130 lb. (59 kg).

Save Money

With this rail depth adapter kit, you can customize your server rack to support different mounting depths and consolidate your equipment into a single rack, eliminating the need to purchase different sized racks.

Easily Manage Cables

The network rack extender kit can also help manage your cables. You can mount equipment four inches from the rails, to prevent cables from protruding from the rack. You can also mount equipment with high-density cabling to minimize the effects of cable strain and provide easier access to the cables.

We offer a wide selection of products that help you to optimize your server rack storage space, to improve space efficiency, accessibility and convenience. This product is backed by a 2-year warranty and free lifetime North American based technical support.

The StarTech.com Advantage


StarTech.com RDA2U. Type: Depth adapter, Product color: Black. Quantity per pack: 2 pc(s). Weight: 8.71 oz (246.8 g)

Type	Depth adapter
Product color	Black
Maximum weight capacity	130.1 lbs (59 kg)
Rack capacity	2U
Certification	CE, TAA, REACH
Width	3.54" (90 mm)
Depth	4.45" (113 mm)
Height	0.984" (25 mm)
Weight	8.71 oz (246.8 g)
Quantity per pack	2 pc(s)
Package width	4.72" (120 mm)
Package depth	8.27" (210 mm)
Package height	0.984" (25 mm)
Package weight	10.2 oz (289.4 g)
Quick installation guide	Yes
Screws included	Yes
Screw type	10-32 x 5/8
Number of screws	4
Nuts included	Yes
Number of nuts	4
Compliance certificates	RoHS
Master (outer) case width	9.37" (238 mm)
Master (outer) case length	11.8" (300 mm)
Master (outer) case height	9.45" (240 mm)
Quantity per master (outer) case	35 pc(s)
Harmonized System (HS) code	85389099
