745130 - W129159724

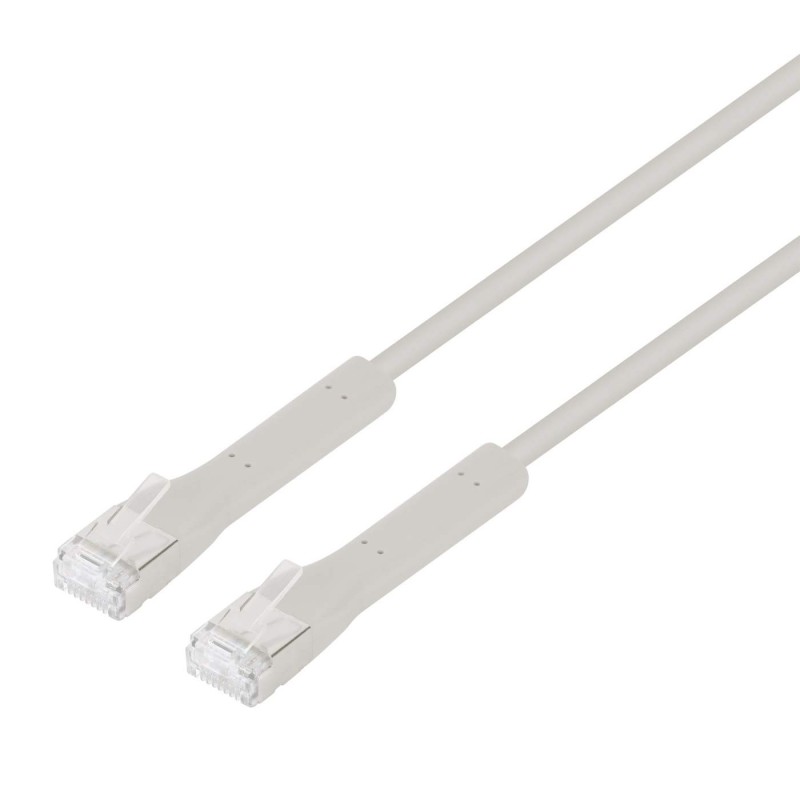

Cat6a Ethernet Cable - F/FTP, 10G, 500 MHz LAN patch cord, ultra-thin and with highly flexible boot, great for tight-space installations
Establish your high-performance network connections with this Cat6a Network Patch Cable from Intellinet Network Solutions. It supports up to 10 Gbps data transmissions with frequencies up to 500 MHz and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE.

Strong, yet slim, space-saving design
This stranded cable offers all the benefits of a standard Cat6a network cable, but with a diameter that's considerably smaller. In dense cable installations, the cable creates a tidier and more-organized look, and its thinner size helps promote better air circulation to equipment in a network cabinet.

Excellent shielding for best signal quality and low noise
This stranded cable is ideal for high-performance network applications up to 10GBase-T. Its multi-layer F/FTP design features an overall aluminum foil shield around the entire set of pairs, with each individual pair also wrapped in foil. This results in superior data transfer by preventing interference, such as near-end crosstalk (NEXT), when cables run parallel to each other.

Pure copper cable with gold-plated contacts for perfect conductivity
As opposed to other cables that are manufactured with copper-clad aluminum (CCA) or even copper-clad steel (CCS), this cable contains 100% pure bare copper for perfect conductivity, making it ideal for use in PoE applications. Gold plating on the contacts makes them corrosion-resistant in every environment.

Low Smoke Zero Halogen (LSZH/LS0H) jacket
The cable jacket does not contain any halogen, which significantly reduces the release of toxic gases and vapors, should combustion ever occur. LSZH is frequently part of health and safety regulations applying to poorly aired spaces where it protects people and equipment from corrosive gasses.

Ultra-Flexible Boot Design
The cable plugs are equipped with an extra-long boot that is extremely flexible and bendable for the best strain relief in cable runs around corners and in tight spaces.

Intellinet 745130. Cable length: 39.4" (1 m), Cable standard: Cat6a, Cable shielding: F/FTP (FFTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product color: Gray

Cable length	39.4" (1 m)
Cable standard	Cat6a
Cable shielding	F/FTP (FFTP)
Connector 1	RJ-45
Connector 2	RJ-45
Product color	Gray
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Connector shielding	Yes
Connector shield material	Aluminum
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor type	Stranded
Conductor material	Copper
Cabling technology	10GBase-T
Ethernet interface type	10 Gigabit Ethernet
Networking standards	IEEE 802.3an, IEEE 802.3bt
AWG wire size	32
Data transfer rate	10000 Mbit/s
Frequency	500 MHz
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Compliance certificates	CE, REACH, RoHS, UL
Width	0.472" (12 mm)
Depth	39.4" (1000 mm)
Height	0.591" (15 mm)
Outer diameter	0.157" (4 mm)
Weight	1.02 oz (29 g)
Quantity per pack	1 pc(s)
Package weight	1.09 oz (31 g)
Package type	Bag
