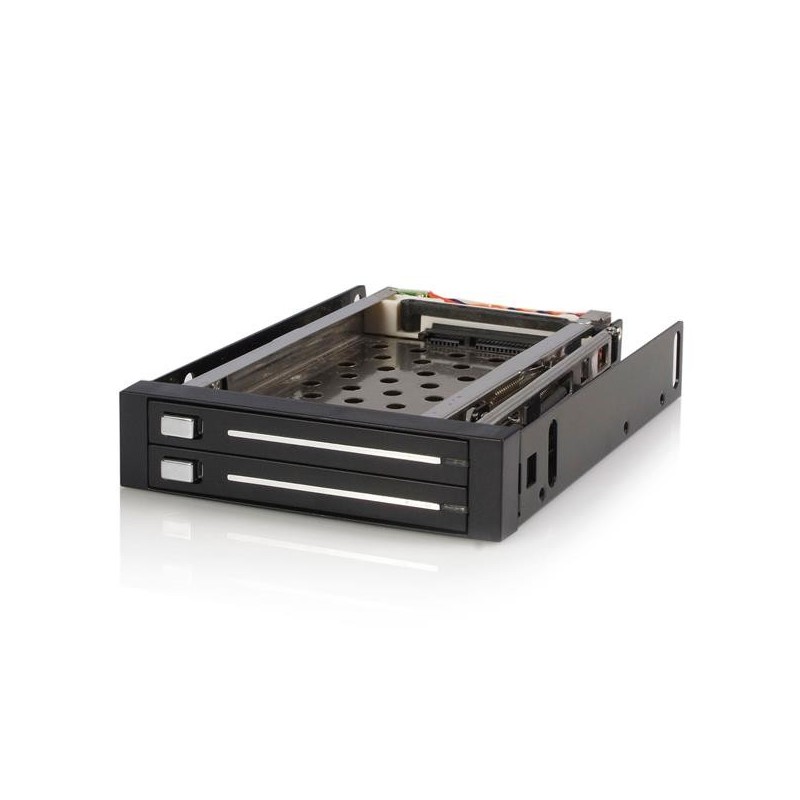

HSB220SAT25B - HSB220SAT25B

Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay

This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.

Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

The StarTech.com Advantage


StarTech.com HSB220SAT25B. Size (imperial): 3.5", Type: Bezel panel, Product color: Black. Width: 4.02" (102 mm), Depth: 5.28" (134 mm), Height: 0.945" (24 mm). Package width: 4.96" (126 mm), Package depth: 6.73" (171 mm), Package height: 2.13" (54 mm). Cables included: SATA

Size (imperial)	3.5"
Type	Bezel panel
Product color	Black
Number of HDDs supported	2
HDD size	2.5"
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Material	Aluminum
Supported storage drive heights	9.5 mm
LED indicators	Activity, Power
Certification	CE, FCC, REACH
Width	4.02" (102 mm)
Depth	5.28" (134 mm)
Height	0.945" (24 mm)
Weight	10.1 oz (286 g)
Package width	4.96" (126 mm)
Package depth	6.73" (171 mm)
Package height	2.13" (54 mm)
Package weight	17 oz (481 g)
Cables included	SATA
Screws included	Yes
Manual	Yes
Compliance certificates	RoHS
Harmonized System (HS) code	84733080
