ACFAN00223A - W128255187

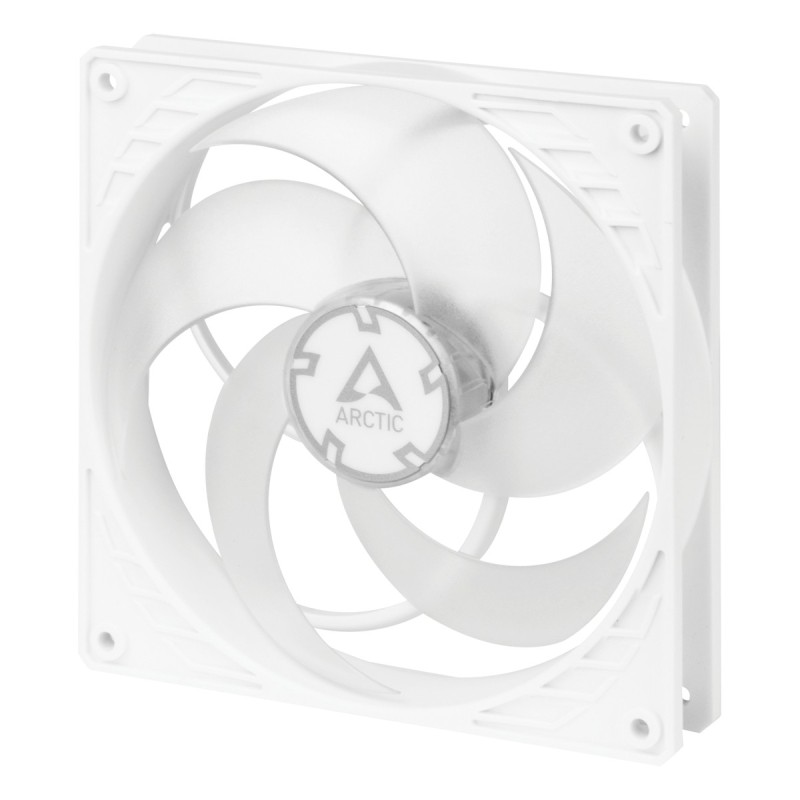

ARCTIC P14 PWM, Fan, 5.51" (14 cm), 200 RPM, 1700 RPM, 0.3 sone, 123.76 m³/h
Description
The P14 PWM features completely redesigned fan blades and is optimised for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.The wide RPM range from 200 to 1700 RPM can be regulated steplessly via PWM.The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
ARCTIC P14 PWM. Type: Fan, Fan diameter: 5.51" (14 cm), Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.76 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 5.51" (140 mm), Depth: 5.51" (140 mm), Height: 1.06" (27 mm). Product color: Transparent, White
ARCTIC P14 PWM. Type: Fan, Fan diameter: 5.51" (14 cm), Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.76 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 5.51" (140 mm), Depth: 5.51" (140 mm), Height: 1.06" (27 mm). Product color: Transparent, White
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 5.51" (14 cm) |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 1700 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 72.8 cfm |
| Airflow | 123.76 m³/h |
| Maximum air pressure | 2.4 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Product color | Transparent, White |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Fan connector | 4-pin |
| Power consumption (typical) | 1.44 W |
| Voltage | 12 V |
| Starting voltage | 3.9 V |
| Rated current | 0.12 A |
| Width | 5.51" (140 mm) |
| Depth | 5.51" (140 mm) |
| Height | 1.06" (27 mm) |
| Weight | 6.84 oz (194 g) |
| Cable length | 15.7" (0.4 m) |
| Package width | 5.63" (143 mm) |
| Package depth | 5.63" (143 mm) |
| Package height | 1.14" (29 mm) |
| Package weight | 8.25 oz (234 g) |
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
| Harmonized System (HS) code | 84733080 |
Product Details
W128255187
4 Items
New
Data sheet
- Type
- Fan
- Product color
- Transparent, White
- Quantity per pack
- 1 pc(s)
- Package type
- Box
- Cable length
- 15.7" (0.4 m)
- Weight
- 6.84 oz (194 g)
- Harmonized System (HS) code
- 84733080
- Compatible processor series
- Not supported
- Suitable location
- Computer case
- Fan diameter
- 5.51" (14 cm)
- Width
- 5.51" (140 mm)
- Height
- 1.06" (27 mm)
- Depth
- 5.51" (140 mm)
- Package weight
- 8.25 oz (234 g)
- Package width
- 5.63" (143 mm)
- Package depth
- 5.63" (143 mm)
- Package height
- 1.14" (29 mm)
- Number of fans
- 1 fan(s)
- Power consumption (typical)
- 1.44 W
- Supported processor sockets
- Not supported
- Screws included
- Yes
- Number of screws
- 4
- Pulse-width modulation (PWM) support
- Yes
- Maximum airflow
- 72.8 cfm
- Rotational speed (max)
- 1700 RPM
- Number of fan blades
- 5
- Fan connector
- 4-pin
- Voltage
- 12 V
- Airflow
- 123.76 m³/h
- Maximum air pressure
- 2.4 mmH2O
- Rotational speed (min)
- 200 RPM
- Starting voltage
- 3.9 V
- Bearing type
- Rated current
- 0.12 A
- Noise level
- 0.3 sone
Specific References
- EAN13
- 4895213703109
- MPN
- ACFAN00223A
