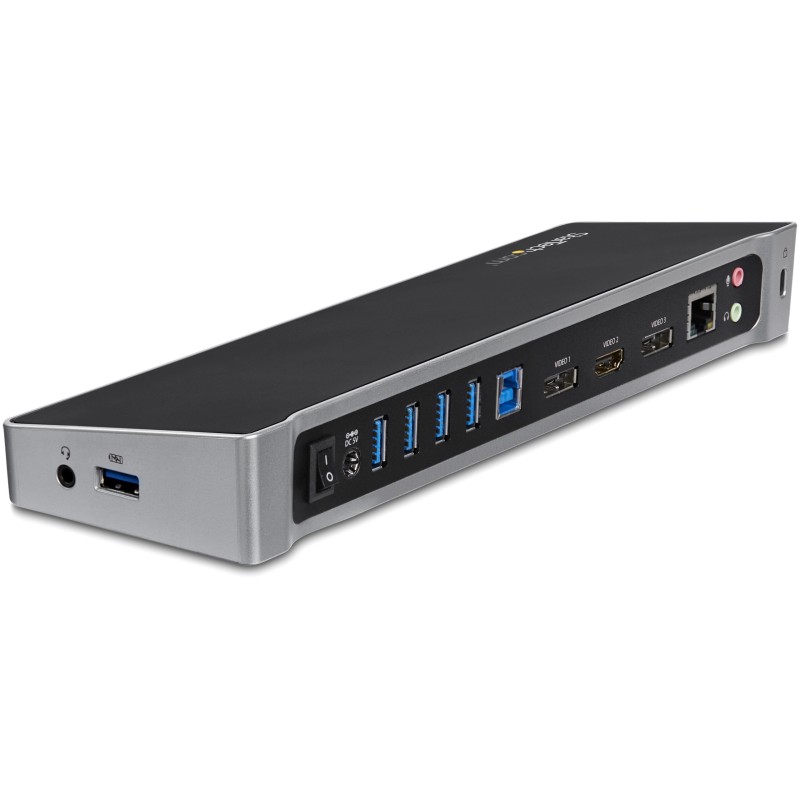

StarTech.com USB3DOCKH2DP, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 3.5 mm, USB Type-A, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Product color | Black, Silver |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| LED indicators | Activity, Link |
| UASP support | Yes |
| Housing material | Plastic |
| Brand compatibility | Any brand |
| Certification | CE, FCC, DisplayLink, TAA, REACH |
| AC input voltage | 100-240 V |
| Input current | 1.5 A |
| Output voltage | 5 V |
| Output current | 6.5 A |
| Power consumption (typical) | 32.5 W |
| Power plug type | Type N |
| Compatible power plug types | AU, EU, UK, US |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Width | 3.23" (82 mm) |
| Depth | 10.6" (270 mm) |
| Height | 1.34" (34 mm) |
| Weight | 13.3 oz (376 g) |
| Package width | 11.7" (296 mm) |
| Package depth | 6.46" (164 mm) |
| Package height | 2.8" (71 mm) |
| Package weight | 2.27 lbs (1.03 kg) |
| Cables included | USB |
| AC adapter included | Yes |
| Manual | Yes |
| Compliance certificates | RoHS |
| Quantity per master (outer) case | 10 pc(s) |
| Master (outer) case width | 14.3" (363 mm) |
| Master (outer) case length | 14.7" (373 mm) |
| Master (outer) case height | 15.6" (395 mm) |
| Harmonized System (HS) code | 84733020 |
| Chipset | DisplayLink - DL-5910, VLI - VL812 |
| Number of microphone inputs | 1 |
| USB data transfer rates | 5000 Mbit/s |
