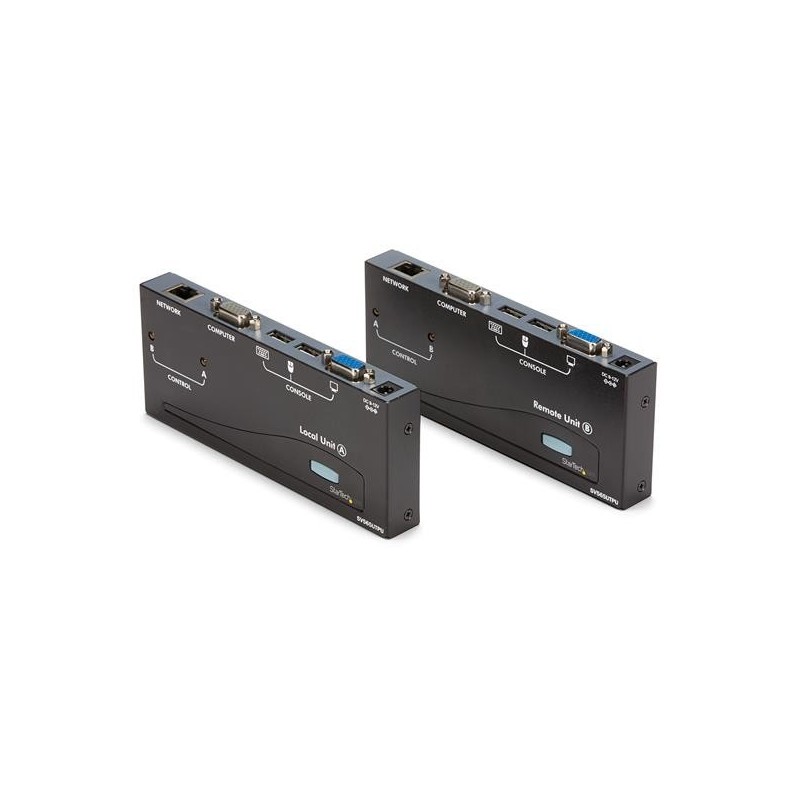

SV565UTPUEU - SV565UTPUEU
StarTech.com SV565UTPUEU, Transmitter & receiver, Wired, 5905.5" (150 m), Black, CE, FCC, REACH, TAA, UL, VGA
Description
Operate a USB & VGA KVM or PC over 500ft as if it were right in front of you
The SV565UTPUEU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing standard KVM units into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
StarTech.com SV565UTPUEU. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 5905.5" (150 m). Transmitter video port type: VGA, Transmitter local video port type: VGA. USB port type: USB Type-A. Power plug type: Type M, AC input voltage: 100 - 240 V, Input current: 0.2 A. Transmitter width: 6.1" (15.5 cm), Transmitter depth: 2.95" (7.5 cm), Transmitter height: 0.787" (2 cm)
The SV565UTPUEU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing standard KVM units into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
StarTech.com SV565UTPUEU. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 5905.5" (150 m). Transmitter video port type: VGA, Transmitter local video port type: VGA. USB port type: USB Type-A. Power plug type: Type M, AC input voltage: 100 - 240 V, Input current: 0.2 A. Transmitter width: 6.1" (15.5 cm), Transmitter depth: 2.95" (7.5 cm), Transmitter height: 0.787" (2 cm)
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 5905.5" (150 m) |
| Rack mounting | No |
| Product color | Black |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH, TAA, UL |
| Transmitter video port type | VGA |
| Transmitter local video port | Yes |
| Transmitter local video port type | VGA |
| USB port type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| RJ-45 ports quantity | 2 |
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Input current | 0.2 A |
| AC adapter output voltage | 9 V |
| AC adapter output current | 0.6 A |
| Power consumption (transmitter) (max) | 5.4 W |
| Power consumption (receiver) (max) | 5.4 W |
| Transmitter width | 6.1" (15.5 cm) |
| Transmitter depth | 2.95" (7.5 cm) |
| Transmitter height | 0.787" (2 cm) |
| Transmitter weight | 10.5 oz (299 g) |
| Receiver width | 6.1" (15.5 cm) |
| Receiver depth | 2.95" (7.5 cm) |
| Receiver height | 0.787" (2 cm) |
| Receiver weight | 10.5 oz (299 g) |
| Package width | 3.35" (85 mm) |
| Package depth | 11.6" (294 mm) |
| Package height | 9.57" (243 mm) |
| Package weight | 3.75 lbs (1.7 kg) |
| AC adapter included | Yes |
| Cables included | KVM |
| Manual | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution | 1280 x 1024 pixels |
| Weight | 10.5 oz (299 g) |
| Harmonized System (HS) code | 84733080 |
Product Details
SV565UTPUEU
12 Items
New
Data sheet
- Type
- Transmitter & receiver
- Product color
- Black
- Connectivity technology
- Wired
- USB 2.0 ports quantity
- 4
- Weight
- 10.5 oz (299 g)
- Harmonized System (HS) code
- 84733080
- Maximum resolution
- 1280 x 1024 pixels
- Plug and Play
- Yes
- AC input voltage
- 100 - 240 V
- Certification
- CE, FCC, REACH, TAA, UL
- Package weight
- 3.75 lbs (1.7 kg)
- Package width
- 3.35" (85 mm)
- Package depth
- 11.6" (294 mm)
- Package height
- 9.57" (243 mm)
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Cables included
- KVM
- Input current
- 0.2 A
- Manual
- Yes
- Power plug type
- Type M
- Receiver weight
- 10.5 oz (299 g)
- AC adapter output current
- 0.6 A
- Maximum transfer distance
- 5905.5" (150 m)
- RJ-45 ports quantity
- 2
- Rack mounting
- No
- Transmitter video port type
- VGA
- Transmitter local video port type
- VGA
- Transmitter width
- 6.1" (15.5 cm)
- Transmitter depth
- 2.95" (7.5 cm)
- Transmitter height
- 0.787" (2 cm)
- Transmitter weight
- 10.5 oz (299 g)
- USB port type
- USB Type-A
- AC adapter output voltage
- 9 V
- Power consumption (transmitter) (max)
- 5.4 W
- Receiver width
- 6.1" (15.5 cm)
- Receiver depth
- 2.95" (7.5 cm)
- Receiver height
- 0.787" (2 cm)
- Power consumption (receiver) (max)
- 5.4 W
- Transmitter local video port
- Yes
Specific References
- UPC
- 065030834506
- EAN13
- 0065030834506
- MPN
- SV565UTPUEU
