SV431DDVDUA - SV431DDVDUA

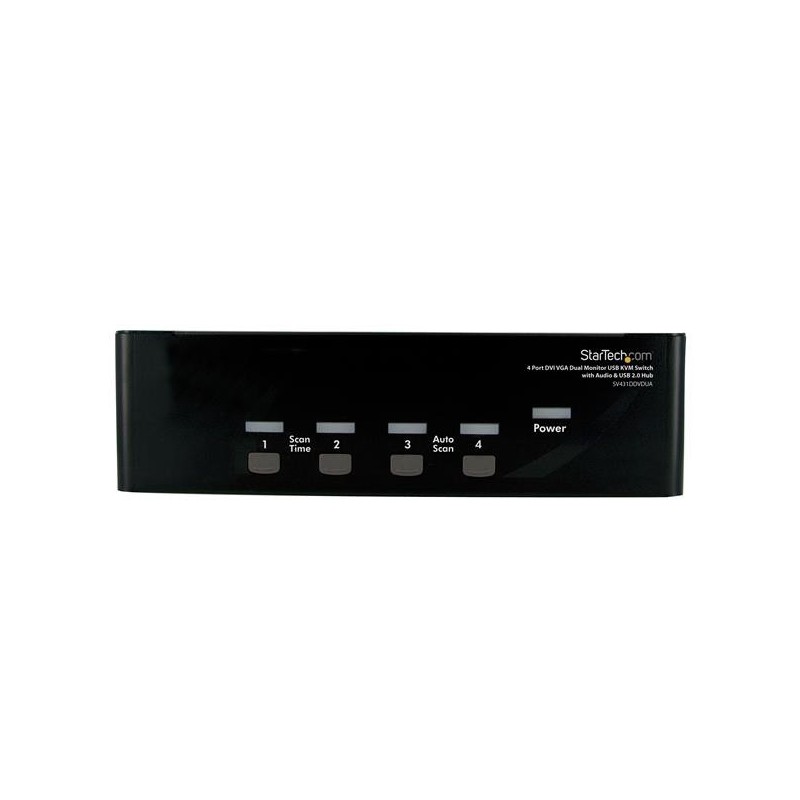

StarTech.com SV431DDVDUA, 1920 x 1200 pixels, 18 W, Black
Description
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution
StarTech.com SV431DDVDUA. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA/DVI-I. Maximum resolution: 1920 x 1200 pixels, Number of users: 1 user(s). Product color: Black, Housing material: Steel, Mean time between failures (MTBF): 140000 h. Input voltage: 100 - 240 V, Input current: 0.8 A, Output voltage: 12 V. Compliance certificates: RoHS
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution
StarTech.com SV431DDVDUA. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA/DVI-I. Maximum resolution: 1920 x 1200 pixels, Number of users: 1 user(s). Product color: Black, Housing material: Steel, Mean time between failures (MTBF): 140000 h. Input voltage: 100 - 240 V, Input current: 0.8 A, Output voltage: 12 V. Compliance certificates: RoHS
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA/DVI-I |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) |
| DVI-I ports quantity | 5 |
| VGA (D-Sub) ports quantity | 5 |
| Console USB ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Product color | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 140000 h |
| Certification | CE, FCC, UL, REACH |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 8.66" (220 mm) |
| Depth | 6.42" (163 mm) |
| Height | 2.36" (60 mm) |
| Weight | 2.87 lbs (1.3 kg) |
| Package width | 11.6" (295 mm) |
| Package depth | 9.8" (249 mm) |
| Package height | 3.39" (86 mm) |
| Package weight | 3.97 lbs (1.8 kg) |
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Harmonized System (HS) code | 85176200 |
| IP control | No |
Product Details
SV431DDVDUA
4 Items
New
Data sheet
- Product color
- Black
- Headphone outputs
- 1
- VGA (D-Sub) ports quantity
- 5
- Weight
- 2.87 lbs (1.3 kg)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 100 - 240 V
- Output voltage
- 12 V
- Maximum resolution
- 1920 x 1200 pixels
- Width
- 8.66" (220 mm)
- Height
- 2.36" (60 mm)
- Certification
- CE, FCC, UL, REACH
- Depth
- 6.42" (163 mm)
- Output current
- 1.5 A
- Package weight
- 3.97 lbs (1.8 kg)
- Package width
- 11.6" (295 mm)
- Package depth
- 9.8" (249 mm)
- Package height
- 3.39" (86 mm)
- Hot keys
- Yes
- Built-in display
- No
- LED indicators
- Yes
- USB connector type
- USB Type-A
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Input current
- 0.8 A
- Number of users
- 1 user(s)
- Compatible power plug types
- AU, EU, UK, US
- Manual
- Yes
- Housing material
- Steel
- Power plug type
- Type M
- Power consumption (typical)
- 18 W
- Compliance certificates
- RoHS
- DVI-I ports quantity
- 5
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA/DVI-I
- Mean time between failures (MTBF)
- 140000 h
- On Screen Display (OSD)
- No
- Number of microphone inputs
- 1
- External power adapter
- Yes
- Number of computers controlled
- 4
- Audio connections
- Yes
- Console ports
- 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
- Console USB ports quantity
- 4
- Daisy chain
- No
- Rubber feet
- Yes
- IP control
- No
Specific References
- UPC
- 065030835701
- EAN13
- 0065030835701
- MPN
- SV431DDVDUA
