SV231DPDDUA - SV231DPDDUA

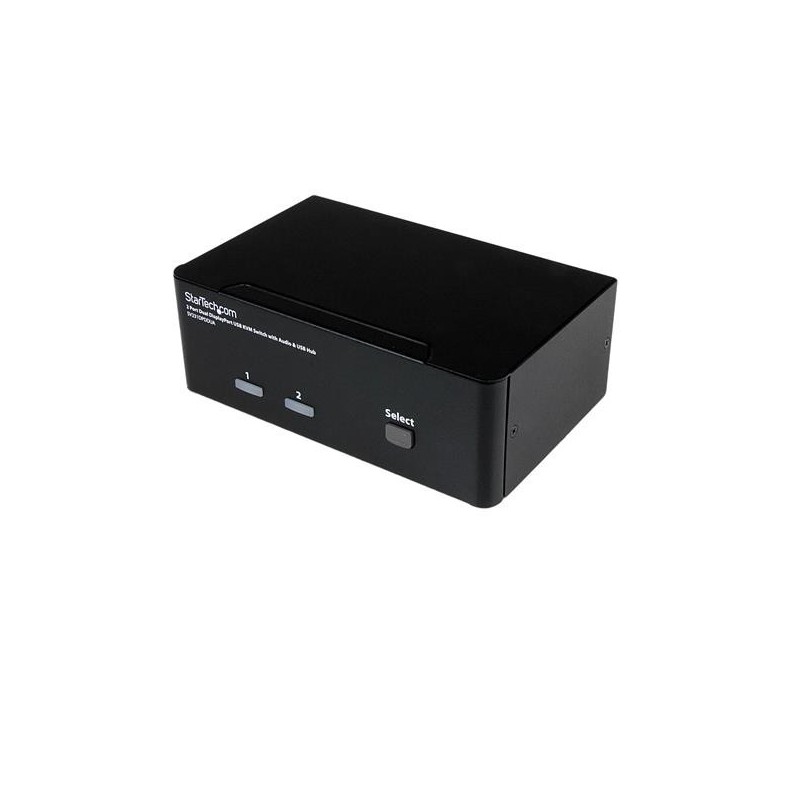

StarTech.com SV231DPDDUA, 3840 x 2400 pixels, 4K Ultra HD, 18 W, Black
Description
Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
StarTech.com SV231DPDDUA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2400 pixels, Number of users: 1 user(s). Product color: Black, Housing material: Steel, Certification: CE, FCC, REACH, TAA. Input voltage: 110 - 240 V, Input current: 0.8 A, Output voltage: 12 V. Compliance certificates: RoHS
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
StarTech.com SV231DPDDUA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2400 pixels, Number of users: 1 user(s). Product color: Black, Housing material: Steel, Certification: CE, FCC, REACH, TAA. Input voltage: 110 - 240 V, Input current: 0.8 A, Output voltage: 12 V. Compliance certificates: RoHS
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| DisplayPorts quantity | 6 |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
| Ethernet LAN | No |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2400 pixels |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Audio channels | 7.1 |
| Rack mounting | No |
| Product color | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, REACH, TAA |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Input voltage | 110 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 6.34" (161 mm) |
| Depth | 3.94" (100 mm) |
| Height | 2.26" (57.5 mm) |
| Weight | 25.9 oz (734 g) |
| Package width | 9.8" (249 mm) |
| Package depth | 7.36" (187 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 2.62 lbs (1.19 kg) |
| Manual | Yes |
| Harmonized System (HS) code | 85176200 |
| Audio support | Yes |
| IP control | No |
Product Details
SV231DPDDUA
4 Items
New
Data sheet
- Product color
- Black
- Headphone outputs
- 3
- DisplayPorts quantity
- 6
- Ethernet LAN
- No
- Weight
- 25.9 oz (734 g)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 110 - 240 V
- Output voltage
- 12 V
- HD type
- 4K Ultra HD
- Hot-Plug support
- Yes
- Maximum resolution
- 3840 x 2400 pixels
- Width
- 6.34" (161 mm)
- Height
- 2.26" (57.5 mm)
- USB hub
- Yes
- Certification
- CE, FCC, REACH, TAA
- Depth
- 3.94" (100 mm)
- Output current
- 1.5 A
- Package weight
- 2.62 lbs (1.19 kg)
- Package width
- 9.8" (249 mm)
- Package depth
- 7.36" (187 mm)
- Package height
- 3.94" (100 mm)
- Hot keys
- Yes
- Built-in display
- No
- LED indicators
- Yes
- USB connector type
- USB Type-A
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- 20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Input current
- 0.8 A
- Number of users
- 1 user(s)
- Compatible power plug types
- AU, EU, UK, US
- Manual
- Yes
- Housing material
- Steel
- Power plug type
- Type M
- Power consumption (typical)
- 18 W
- Compliance certificates
- RoHS
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- On Screen Display (OSD)
- No
- Number of microphone inputs
- 3
- External power adapter
- Yes
- Rack mounting
- No
- Number of computers controlled
- 2
- Audio connections
- Yes
- Audio support
- Yes
- Console ports
- Console USB ports quantity
- 2
- DDC2B support
- Yes
- Push button
- Yes
- Daisy chain
- No
- Audio channels
- 7.1
- IP control
- No
Specific References
- UPC
- 065030839266
- EAN13
- 0065030839266
- MPN
- SV231DPDDUA
