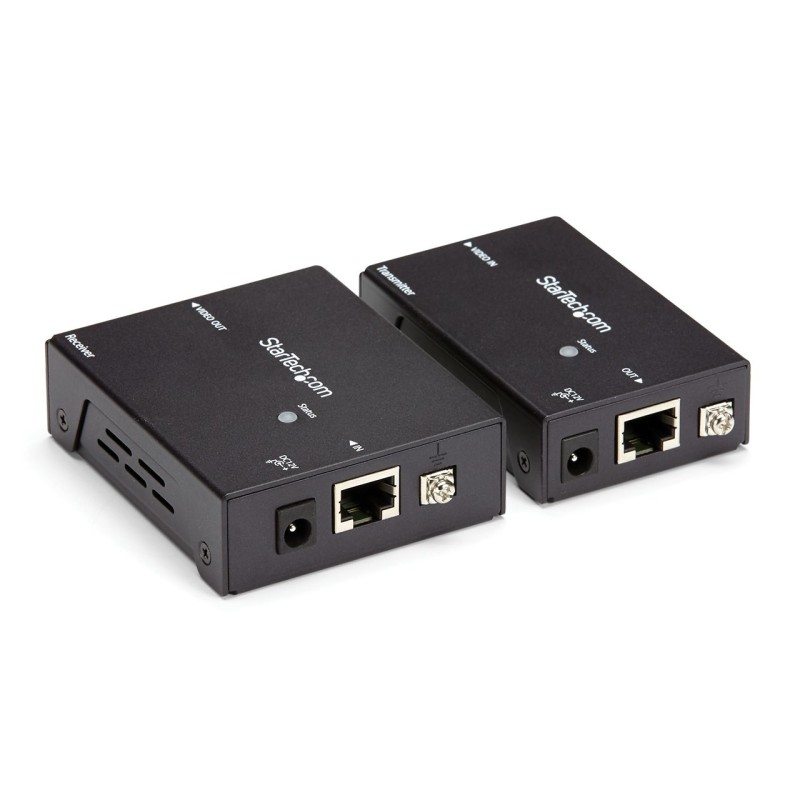

ST121HDBTE - ST121HDBTE

Extend HDMI® up to 230ft (70m) over a single CAT5e/6 cable with Power over Cable to Receiver

The StarTech.com HDBaseT extender kit, extends HDMI up to 230 feet (70 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.

What is HDBaseT?

HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.

Extend more with HDBaseT

The extender offers HDBaseT technology with HDMI and Power in a single extender kit, for complete end-to-end solution. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending video to areas where power outlets may be limited, such as industrial sites.

Astonishing 4K picture quality from an impressive distance

With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.

With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great.

Simplify your setup

This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple Ethernet cables while, reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.

The ST121HDBTE is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

StarTech.com ST121HDBTE. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. AC input voltage: 110 - 240 V, Operating voltage: 12 V, Input current: 0.5 A. Width: 2.64" (67 mm), Depth: 3.15" (80 mm), Height: 0.984" (25 mm). Package width: 9.25" (235 mm), Package depth: 6.14" (156 mm), Package height: 2.56" (65 mm)

Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	2755.9" (70 m)
Maximum refresh rate	60 Hz
Audio system	Multichannel
Audio output channels	7.1 channels
LED indicators	Status
Supported video modes	720p, 1080p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
Cable length	3.94" (0.1 m)
Material	Aluminum
Daisy chain	No
Mean time between failures (MTBF)	52000 h
Product color	Black
Certification	CE, FCC, HDBT, TAA
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
DC-in jack	Yes
AC input voltage	110 - 240 V
Operating voltage	12 V
Input current	0.5 A
Output current	1.5 A
Power consumption (typical)	3 W
Power plug type	Type M
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	2.64" (67 mm)
Depth	3.15" (80 mm)
Height	0.984" (25 mm)
Weight	15.1 oz (428 g)
Package width	9.25" (235 mm)
Package depth	6.14" (156 mm)
Package height	2.56" (65 mm)
Package weight	2.43 lbs (1.1 kg)
AC adapter included	Yes
Cables included	LAN (RJ-45)
Included power plug types	AU, EU, NA, UK
Manual	Yes
Mounting brackets included	Yes
Grounding wire	Yes
Compliance certificates	RoHS
Master (outer) case width	12.8" (325 mm)
Master (outer) case length	16.2" (411 mm)
Master (outer) case height	10.1" (257 mm)
Quantity per master (outer) case	12 pc(s)
Audio support	Yes
