PEXESAT322I - PEXESAT322I
StarTech.com PEXESAT322I, PCIe, SATA, CE, FCC, REACH, ASMedia - ASM1061, 48 bit, 0 - 50 °C
Description
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot

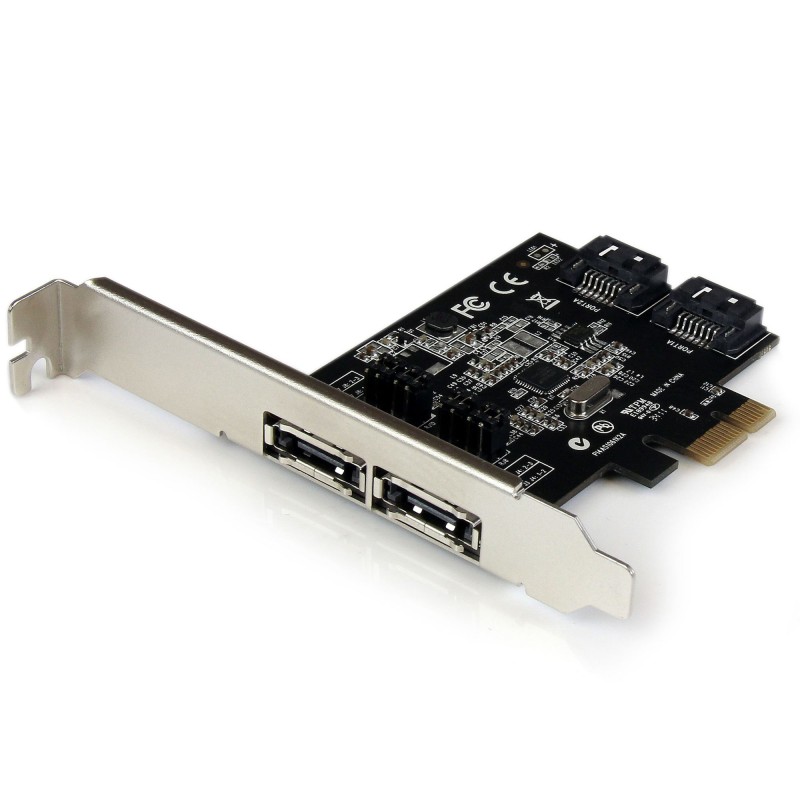

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com PEXESAT322I. Host interface: PCIe, Output interface: SATA. Certification: CE, FCC, REACH. Chipset: ASMedia - ASM1061, Logical block addressing (LBA) support: 48 bit. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 3.62" (92 mm), Depth: 4.76" (121 mm), Height: 0.787" (20 mm)
The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com PEXESAT322I. Host interface: PCIe, Output interface: SATA. Certification: CE, FCC, REACH. Chipset: ASMedia - ASM1061, Logical block addressing (LBA) support: 48 bit. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 3.62" (92 mm), Depth: 4.76" (121 mm), Height: 0.787" (20 mm)
| Host interface | PCIe |
| Output interface | SATA |
| SATA revision | 3.0 |
| eSATA ports quantity | 2 |
| Internal SATA ports quantity | 2 |
| Port multiplier | Yes |
| Internal | Yes |
| Certification | CE, FCC, REACH |
| Chipset | ASMedia - ASM1061 |
| Logical block addressing (LBA) support | 48 bit |
| Native Command Queuing (NCQ) | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Compliance certificates | RoHS |
| Width | 3.62" (92 mm) |
| Depth | 4.76" (121 mm) |
| Height | 0.787" (20 mm) |
| Weight | 1.69 oz (48 g) |
| Quantity | 1 |
| Cables included | SATA |
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 6.81" (173 mm) |
| Package depth | 5.67" (144 mm) |
| Package height | 1.18" (30 mm) |
| Package weight | 5.36 oz (152 g) |
| Harmonized System (HS) code | 84733020 |
| Quantity per master (outer) case | 80 pc(s) |
| Master (outer) case width | 12.1" (307 mm) |
| Master (outer) case length | 23.1" (586 mm) |
| Master (outer) case height | 14.2" (360 mm) |
Product Details
PEXESAT322I
22 Items
New
Data sheet
- Quantity per pack
- 1
- Host interface
- PCIe
- Weight
- 1.69 oz (48 g)
- Harmonized System (HS) code
- 84733020
- Internal
- Yes
- eSATA ports quantity
- 2
- Width
- 3.62" (92 mm)
- Height
- 0.787" (20 mm)
- Certification
- CE, FCC, REACH
- Depth
- 4.76" (121 mm)
- Package weight
- 5.36 oz (152 g)
- Master (outer) case width
- 12.1" (307 mm)
- Master (outer) case length
- 23.1" (586 mm)
- Master (outer) case height
- 14.2" (360 mm)
- Quantity per master (outer) case
- 80 pc(s)
- Package width
- 6.81" (173 mm)
- Package depth
- 5.67" (144 mm)
- Package height
- 1.18" (30 mm)
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 5 - 85%
- Cables included
- SATA
- Output interface
- SATA
- Manual
- Yes
- Compliance certificates
- RoHS
- Drivers included
- Yes
- Native Command Queuing (NCQ)
- Yes
- Mounting brackets included
- Yes
- Chipset
- ASMedia - ASM1061
- Server operating systems supported
- SATA revision
- 3.0
- Internal SATA ports quantity
- 2
- Port multiplier
- Yes
- Logical block addressing (LBA) support
- 48 bit
Specific References
- UPC
- 065030848428
- EAN13
- 0065030848428
- MPN
- PEXESAT322I
