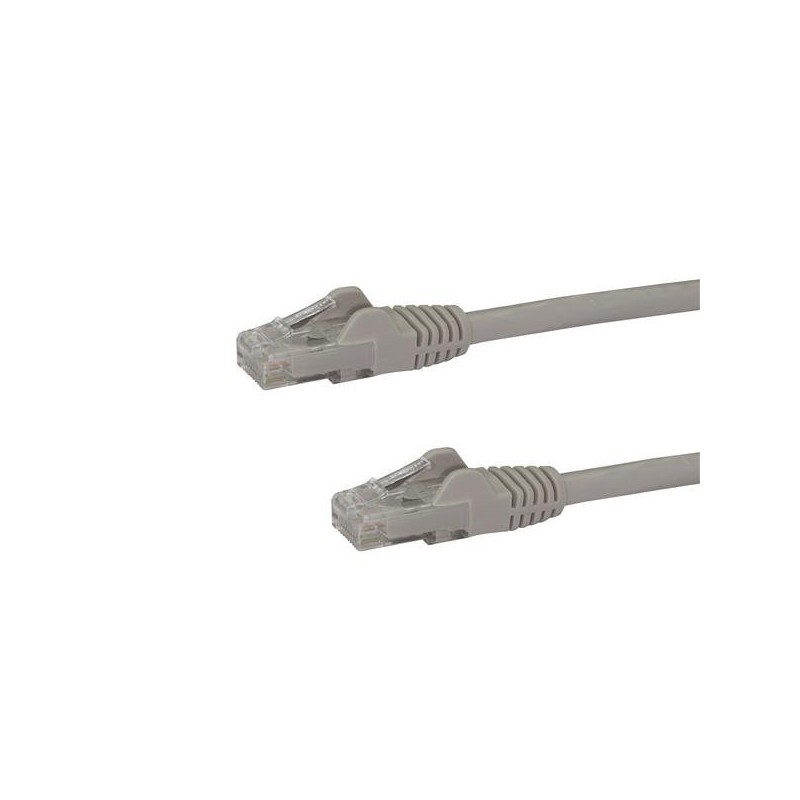

N6PATC3MGR - N6PATC3MGR

Make Power-over-Ethernet-capable Gigabit network connections

The N6PATC3MGR Cat 6 Patch Cable (3m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable gray PVC jacket that enables you to color code your network cable runs as needed.

To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.

Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.

100% copper for outstanding value

Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.

24-gauge wire for high-performance network connection

Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

50-micron gold connectors provide peak conductivity

Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

The StarTech.com Advantage

- 50-micron gold connectors ensure optimum conductivity while eliminating signal loss due to oxidation or corrosion
- RJ45 connector clip protectors help keep the plugs from snagging while routing the cable, for easier Cat 6 cable runs
- Guaranteed reliability

StarTech.com N6PATC3MGR. Cable length: 118.1" (3 m), Cable standard: Cat6, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 1000 Mbit/s, Product color: Gray

Cable length	118.1" (3 m)
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Product color	Gray
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Conductor material	Copper
Cable rating	CMG (CM)
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
AWG wire size	24
Data transfer rate	1000 Mbit/s
Frequency	650 MHz
Power over Ethernet (PoE)	Yes
Snagless cable boot	Yes
Plug and Play	Yes
Compliance certificates	RoHS
Certification	ETL, CE, REACH
Weight	4.44 oz (126 g)
Quantity per pack	1 pc(s)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.669" (17 mm)
Package weight	4.76 oz (135 g)
Harmonized System (HS) code	84733080
Master (outer) case width	14.6" (370 mm)
Master (outer) case length	16.3" (415 mm)
Master (outer) case height	10.8" (275 mm)
Quantity per master (outer) case	80 pc(s)
