CSV-1568 - W128560756

Name: Club3D CSV-1568
Brand: Club3D
SKU: W128560756
Price: 194.8 CHF
Availability: InStock

Reference W128560756

Brand Club3D

CLUB3D CSV-1568, Docking, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 3.5 mm, 1.4/2.2, Metallic

CHF194.8

Tax included

CHF180.2 Tax excluded

Delivery in 4-5 days

Quantity

In stock

In stock: 27 Items

Description
Product Details

Description

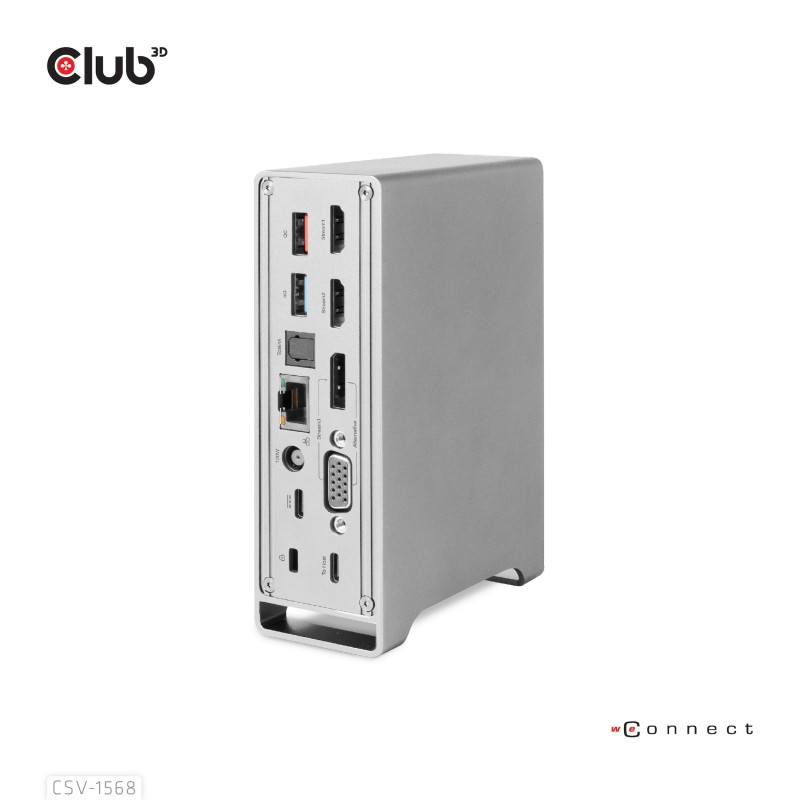

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).

It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

CLUB3D CSV-1568. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product color: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 5.47" (139 mm), Depth: 3.54" (90 mm), Height: 1.73" (44 mm). Quantity per pack: 1 pc(s), Package width: 8.86" (225 mm), Package depth: 6.1" (155 mm)

Connectivity technology	Docking
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.4
Thunderbolt 3 Power Delivery	Yes
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
DC-in jack	Yes
HDCP	Yes
HDCP version	1.4/2.2
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Product color	Metallic
Card reader integrated	Yes
Data transfer rate	16.2 Gbit/s
Maximum refresh rate	60 Hz
High Dynamic Range (HDR) supported	Yes
Plug and Play	Yes
Key lock	Yes
Country of origin	China
Brand compatibility	Apple
Compatibility	Lenovo Dell Acer Asus MSI Toshiba Apple HP Razer
Certification	Meets ROHS, FCC, and CE EMI requirements
Power source type	DC
Power connector	USB Type-C
AC input voltage	100 - 240 V
Power supply	120 W
Power consumption (max)	120 W
Power cable length	39.4" (1 m)
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Width	5.47" (139 mm)
Depth	3.54" (90 mm)
Height	1.73" (44 mm)
Weight	19.9 oz (563 g)
Quantity per pack	1 pc(s)
Package width	8.86" (225 mm)
Package depth	6.1" (155 mm)
Package height	3.82" (97 mm)
Package weight	3 lbs (1.36 kg)
AC adapter included	Yes
Quick start guide	Yes
Stand included	Yes
Harmonized System (HS) code	84733020
Special features	In the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide
Voltage	20.5 V

Product Details

Reference W128560756

In stock 27 Items

Condition New

Data sheet

Brand compatibility: Apple
Compatibility: Lenovo
Dell
Acer
Asus
MSI
Toshiba
Apple
HP
Razer
Product color: Metallic
Windows operating systems supported: Yes
Quantity per pack: 1 pc(s)
Connectivity technology: Docking
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 2
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
Combo headphone/mic port: Yes
Headphone connectivity: 3.5 mm
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Card reader integrated: Yes
Weight: 19.9 oz (563 g)
Harmonized System (HS) code: 84733020
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Plug and Play: Yes
Width: 5.47" (139 mm)
Height: 1.73" (44 mm)
Country of origin: China
Power source type: DC
Data transfer rate: 16.2 Gbit/s
AC input voltage: 100 - 240 V
Certification: Meets ROHS, FCC, and CE EMI requirements
Depth: 3.54" (90 mm)
Package weight: 3 lbs (1.36 kg)
Package width: 8.86" (225 mm)
Package depth: 6.1" (155 mm)
Package height: 3.82" (97 mm)
Mac operating systems supported: Yes
DisplayPort version: 1.4
DC-in jack: Yes
Power supply: 120 W
Power cable length: 39.4" (1 m)
AC adapter included: Yes
Quick start guide: Yes
HDCP: Yes
Power consumption (max): 120 W
USB Power Delivery: Yes
USB Power Delivery up to: 100 W
USB Type-C DisplayPort Alternate Mode: Yes
Maximum refresh rate: 60 Hz
Stand included: Yes
USB Power Delivery revision: 3.0
High Dynamic Range (HDR) supported: Yes
Power connector: USB Type-C
HDCP version: 1.4/2.2
Key lock: Yes
Thunderbolt 3 Power Delivery: Yes
Voltage: 20.5 V
Special features: In the box:
CSV-1568 Docking Station
PowerSupply Input:100-110/240VAC, Output: up to 120W
USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft
Detachable stand
Quick Install Guide
