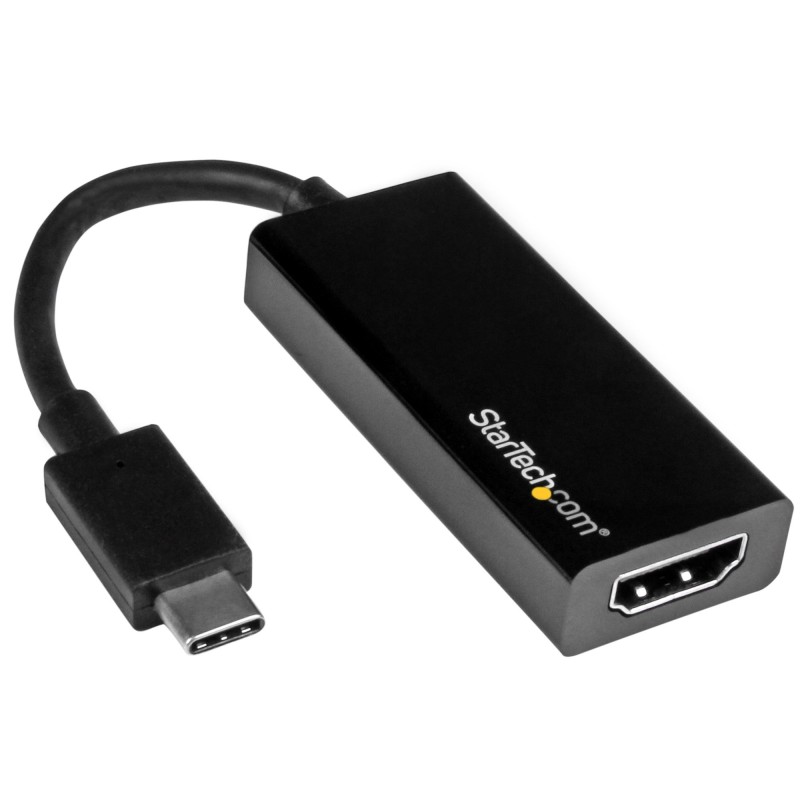

CDP2HD - CDP2HD

USB Type-C™ to HDMI Converter | Thunderbolt™ 3 Compatible | DP Alt Mode

This USB-C to HDMI adapter lets you to output 4K video and audio from the USB Type-C port on your laptop to an HDMI display or projector. The adapter works with USB 3.1 or Thunderbolt 3 Type-C devices that pass a DP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.

This video adapter is also available in white (CDP2HDW).

Enjoy High-Definition Resolution up to 4K at 30Hz

This adapter lets you harness the video capabilities from your computer's USB-C connection, to deliver the astonishing quality of UHD to a 4K 30Hz display.

You can achieve an output resolution of up to 3840 x 2160p at 30Hz, perfect for performing high-resolution tasks. Plus, the USB-C display adapter is backward compatible with 1080p monitors and displays, making it a great accessory for any workspace application.

Hassle-Free Connection to Your USB Type-C Laptop

This HDMI converter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, so you can plug it to your device in any direction. Plus, it’s Thunderbolt 3 compatible, providing a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.

Lightweight Design Makes it the Perfect Travel Companion

This compact, lightweight USB-C video adapter is easy to carry in your laptop bag. It's ideal for BYOD (Bring Your Own Device) applications at the office and is compatible with any device that supports USB-C DP Alt Mode.

CDP2HD is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com CDP2HD. USB version: 3.2 Gen 2 (3.1 Gen 2), USB connector type: USB Type-C, USB connector gender: Male. Product color: Black. Width: 0.906" (23 mm), Depth: 5.79" (147 mm), Height: 0.354" (9 mm). Package width: 7.87" (200 mm), Package depth: 8.66" (220 mm), Package height: 0.394" (10 mm). Quantity per master (outer) case: 120 pc(s), Master (outer) case width: 13.3" (337 mm), Master (outer) case length: 19.7" (500 mm)

USB version	3.2 Gen 2 (3.1 Gen 2)
DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	1
USB connector type	USB Type-C
USB connector gender	Male
USB connector form factor	Straight
HDMI version	1.4
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	30 Hz
Supported graphics resolutions	1024 x 768 (XGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1280 x 720 (HD 720), 2560 x 1600 (WQXGA), 3840 x 2160
Supported video modes	1080p, 720p
Audio output channels	7.1 channels
Chipset	Parade - PS171, STMicroelectronics - STM32F072CBU6
Product color	Black
Integrated USB cable	Yes
Width	0.906" (23 mm)
Depth	5.79" (147 mm)
Height	0.354" (9 mm)
Weight	0.776 oz (22 g)
USB cable length	4.72" (0.12 m)
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.394" (10 mm)
Package weight	1.06 oz (30 g)
Compliance certificates	CE, RoHS
Quantity per master (outer) case	120 pc(s)
Master (outer) case width	13.3" (337 mm)
Master (outer) case length	19.7" (500 mm)
Master (outer) case height	8.66" (220 mm)
Harmonized System (HS) code	84733020
Sustainability compliance	Yes
