9M351M-RS232-CABLE - W128303152

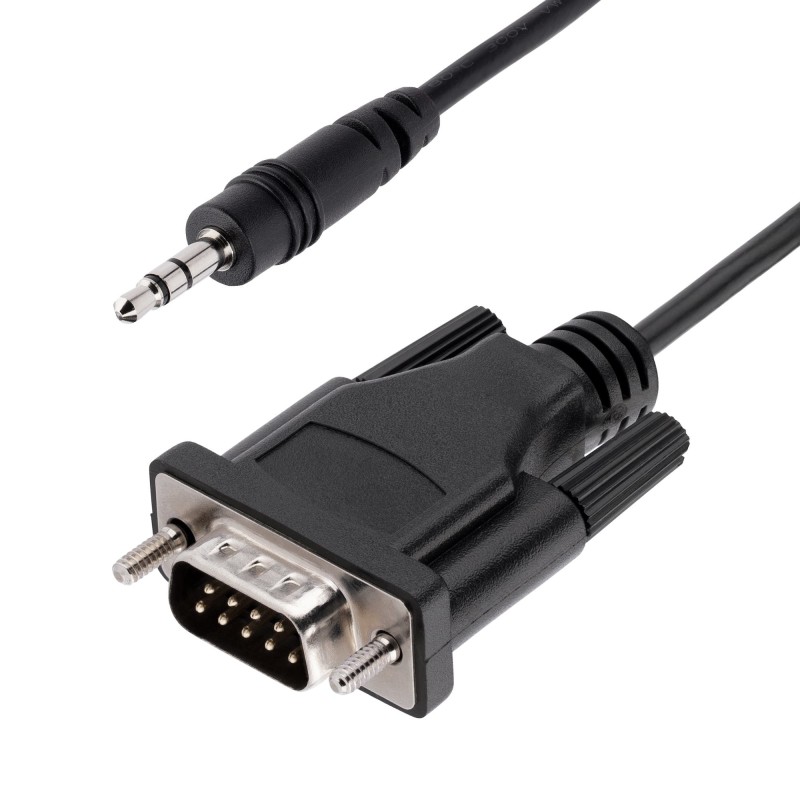

StarTech.com 9M351M-RS232-CABLE, DB-9, 3.5mm, 39.4" (1 m), Black
Description
Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
StarTech.com 9M351M-RS232-CABLE. Connector 1: DB-9, Connector 2: 3.5mm, Cable length: 39.4" (1 m). Product color: Black
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
StarTech.com 9M351M-RS232-CABLE. Connector 1: DB-9, Connector 2: 3.5mm, Cable length: 39.4" (1 m). Product color: Black
| Connector 1 | DB-9 |
| Connector 2 | 3.5mm |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 39.4" (1 m) |
| Product color | Black |
| Cable jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 30 - 75% |
| Compliance certificates | RoHS |
| Package width | 5.04" (128 mm) |
| Package depth | 8.66" (220 mm) |
| Package height | 0.394" (10 mm) |
| Package weight | 0.811 oz (23 g) |
| Cable diameter | 0.138" (3.5 mm) |
| Quantity per master (outer) case | 200 pc(s) |
| Master (outer) case width | 15.3" (388 mm) |
| Master (outer) case length | 13.4" (340 mm) |
| Master (outer) case height | 12.2" (310 mm) |
| Sustainability compliance | Yes |
Product Details
W128303152
85 Items
New
Data sheet
- Product color
- Black
- Cable length
- 39.4" (1 m)
- Connector 1
- DB-9
- Connector 2
- 3.5mm
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Package weight
- 0.811 oz (23 g)
- Master (outer) case width
- 15.3" (388 mm)
- Master (outer) case length
- 13.4" (340 mm)
- Master (outer) case height
- 12.2" (310 mm)
- Quantity per master (outer) case
- 200 pc(s)
- Package width
- 5.04" (128 mm)
- Package depth
- 8.66" (220 mm)
- Package height
- 0.394" (10 mm)
- Operating temperature (T-T)
- -20 - 60 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Sustainability compliance
- Yes
- Compliance certificates
- RoHS
- AWG wire size
- 28
- Cable diameter
- 0.138" (3.5 mm)
- Cable jacket material
- Polyvinyl chloride (PVC)
- Relative humidity
- 30 - 75%
Specific References
- UPC
- 065030893565
- EAN13
- 0065030893565
- MPN
- 9M351M-RS232-CABLE
