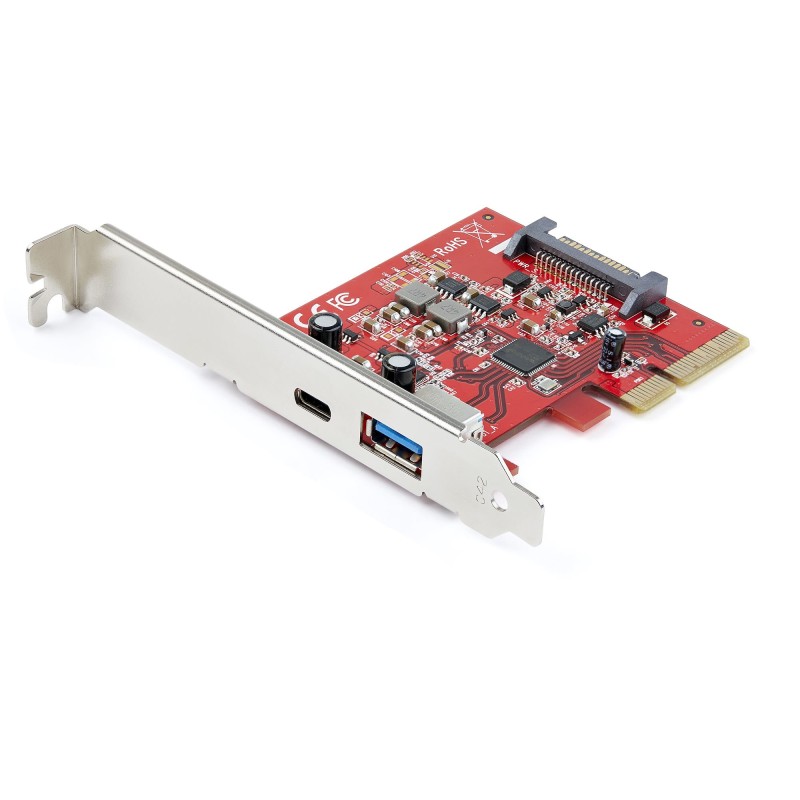

PEXUSB311AC3 - W128261679

PCIe 3.0 | USB Type-C & USB Type-A | 5V 3A/15W via USB-C | 5V 0.9A/4.5W via USB-A | UASP

This USB 3.2 Gen 2 card lets you add one USB-C™ port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.2 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.2 Gen 2 (also known as USB 3.1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected. Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type. USB 3.2 Gen 2 Performance By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.2 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A and USB-C devices. With higher data throughput support, this USB 3.2 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.2 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions. Compatible with Older USB Devices Connecting older peripherals isn't a problem. This versatile dual-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C™ port using a variety of USB-C cables and adapters. Easy Installation The USB 3.2 card is compatible with a broad range of Windows®; macOS and Linux® operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers. Faster Transfer Speeds with UASP The card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows® 8, macOS (10.8 or above), and Linux®. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 2 at peak performance. At the same peak in testing, UASP also shows an 80% reduction in required processor resources. The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com PEXUSB311AC3. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card form factor: Full-height / Low-profile. Product color: Red, Mean time between failures (MTBF): 2684396 h. Chipset: ASMedia - ASM3142, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019. Width: 3.19" (81 mm), Depth: 4.72" (120 mm), Height: 0.748" (19 mm)

Host interface	PCIe
Output interface	USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Internal	Yes
Product color	Red
Mean time between failures (MTBF)	2684396 h
Chipset	ASMedia - ASM3142
Data transfer rate (max)	10 Gbit/s
UASP support	Yes
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	20 - 80%
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Compliance certificates	CE, RoHS
Width	3.19" (81 mm)
Depth	4.72" (120 mm)
Height	0.748" (19 mm)
Weight	1.69 oz (48 g)
Mounting brackets included	Yes
Quick installation guide	Yes
Package width	6.69" (170 mm)
Package depth	5.59" (142 mm)
Package height	1.18" (30 mm)
Package weight	4.34 oz (123 g)
Harmonized System (HS) code	84733020
Quantity per master (outer) case	60 pc(s)
Master (outer) case width	14.6" (370 mm)
Master (outer) case length	14.4" (365 mm)
Master (outer) case height	19.7" (500 mm)
Sustainability compliance	Yes
