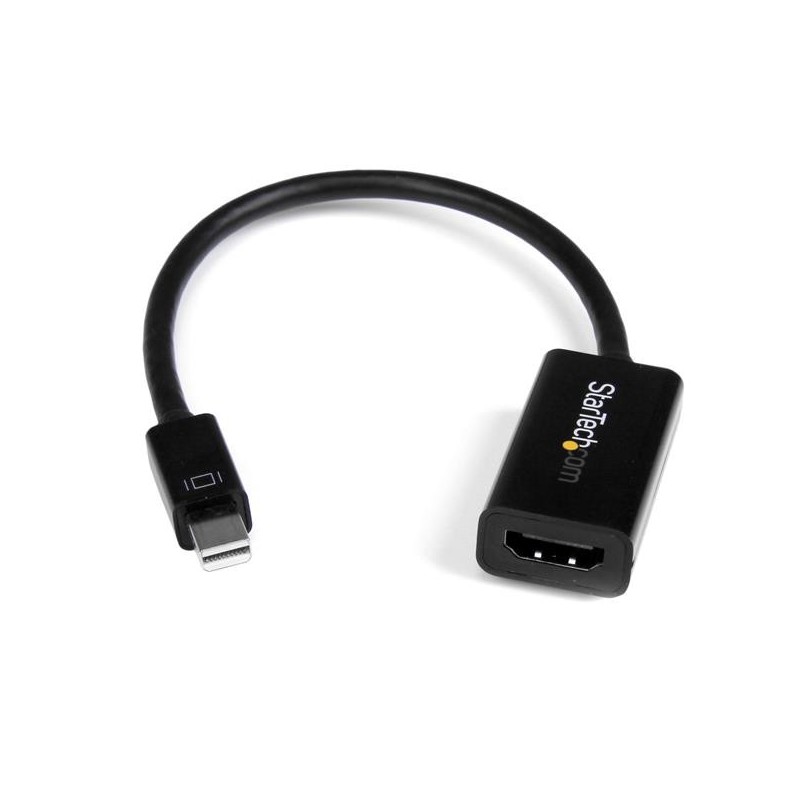

MDP2HD4KS - MDP2HD4KS

Connect an HDMI® Display to a Mini DisplayPort® video source

The MDP2HD4KS Mini DisplayPort to HDMI adapter enables you to connect a mDP-equipped Ultrabook™, tablet or laptop computer, such as the ThinkPadT440 series, to an HDMI display. This adapter is compatible with Mini DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound. The Mini DisplayPort adapter is the perfect accessory for any of your Microsoft® Surface™ Pro devices with mDP.

With support for Ultra HD (4K) the mDP to HDMI adapter ensures you can convert Mini DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.

For a hassle-free setup the Mini DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.

To ensure compatibility with any Mini DisplayPort output the mDP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is also ideal for outputting 1080p resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

The Mini DisplayPort to HDMI converter is compatible with Intel® Thunderbolt™ devices that output a DisplayPort video signal.

The MDP2HD4KS is backed by a 3-year StarTech.com warranty, and lifetime technical support.

The StarTech.com Advantage


StarTech.com MDP2HD4KS. Cable length: 5.91" (0.15 m), Maximum resolution: 3840 x 2160 pixels, Supported video modes: 720p, 1080p, 2160p. Compliance certificates: RoHS, Certification: FCC, CE, REACH. Weight: 0.564 oz (16 g), Height: 0.591" (15 mm). Package width: 4.92" (125 mm), Package depth: 8.86" (225 mm), Package height: 0.551" (14 mm). Master (outer) case width: 13" (330 mm), Master (outer) case length: 19.9" (505 mm), Master (outer) case height: 8.27" (210 mm)

Cable length	5.91" (0.15 m)
HDCP	Yes
Maximum resolution	3840 x 2160 pixels
Supported video modes	720p, 1080p, 2160p
Maximum refresh rate	30 Hz
Product color	Black
Plug and Play	Yes
Converter type	Active video converter
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Compliance certificates	RoHS
Certification	FCC, CE, REACH
Weight	0.564 oz (16 g)
Height	0.591" (15 mm)
Package width	4.92" (125 mm)
Package depth	8.86" (225 mm)
Package height	0.551" (14 mm)
Package weight	0.776 oz (22 g)
Harmonized System (HS) code	84733080
Master (outer) case width	13" (330 mm)
Master (outer) case length	19.9" (505 mm)
Master (outer) case height	8.27" (210 mm)
Quantity per master (outer) case	320 pc(s)
