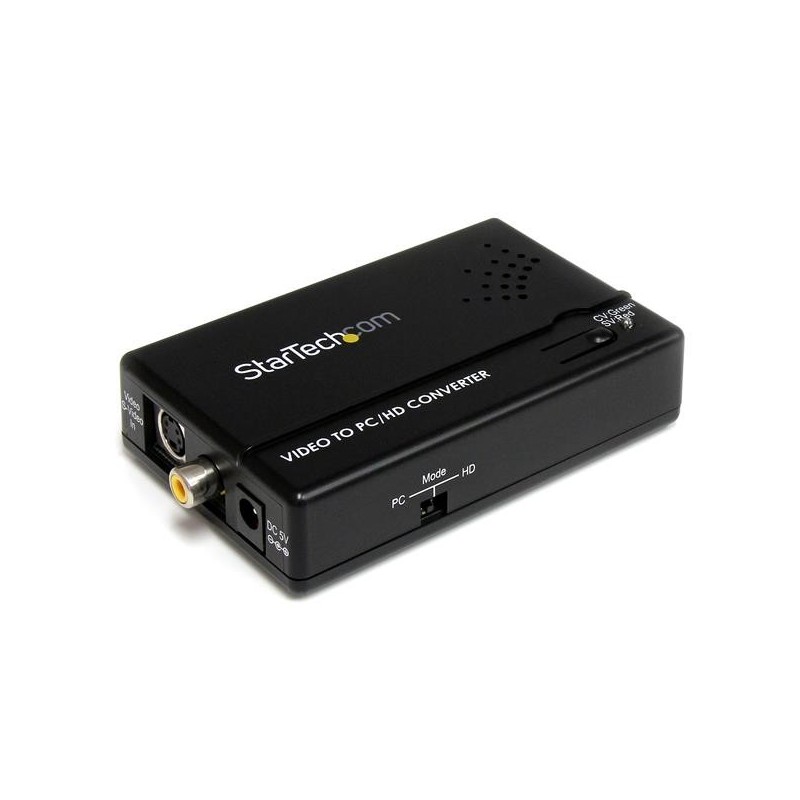

VID2VGATV2 - VID2VGATV2

Convert and Scale a Composite or S-Video Signal to Work with a VGA Display

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
- Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
- Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution

StarTech.com VID2VGATV2. Converter type: Active video converter, Product color: Black, Housing material: Plastic. Maximum video resolution: 1600 x 1200 pixels, Video resolutions: 1024 x 768,1280 x 1024,1600 x 1200, Analog signal format system: NTSC, PAL. Host interface: Composite, S-Video, Output interface: VGA. Operating voltage: 5 V, Operating current: 1 A, Power consumption (typical): 2.5 W. Width: 2.52" (64 mm), Depth: 4.41" (112 mm), Height: 1.02" (26 mm)

Converter type	Active video converter
On Screen Display (OSD)	Yes
Plug and Play	Yes
Product color	Black
Housing material	Plastic
Certification	CE, FCC, TAA, REACH
Maximum video resolution	1600 x 1200 pixels
Video resolutions	1024 x 768,1280 x 1024,1600 x 1200
Analog signal format system	NTSC, PAL
Maximum refresh rate	60 Hz
Host interface	Composite, S-Video
Output interface	VGA
External power adapter	Yes
Operating voltage	5 V
Operating current	1 A
Power consumption (typical)	2.5 W
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	0 - 60%
Width	2.52" (64 mm)
Depth	4.41" (112 mm)
Height	1.02" (26 mm)
Weight	3.03 oz (86 g)
Package width	8.23" (209 mm)
Package depth	4.65" (118 mm)
Package height	2.4" (61 mm)
Package weight	16.2 oz (459 g)
Harmonized System (HS) code	85176990
