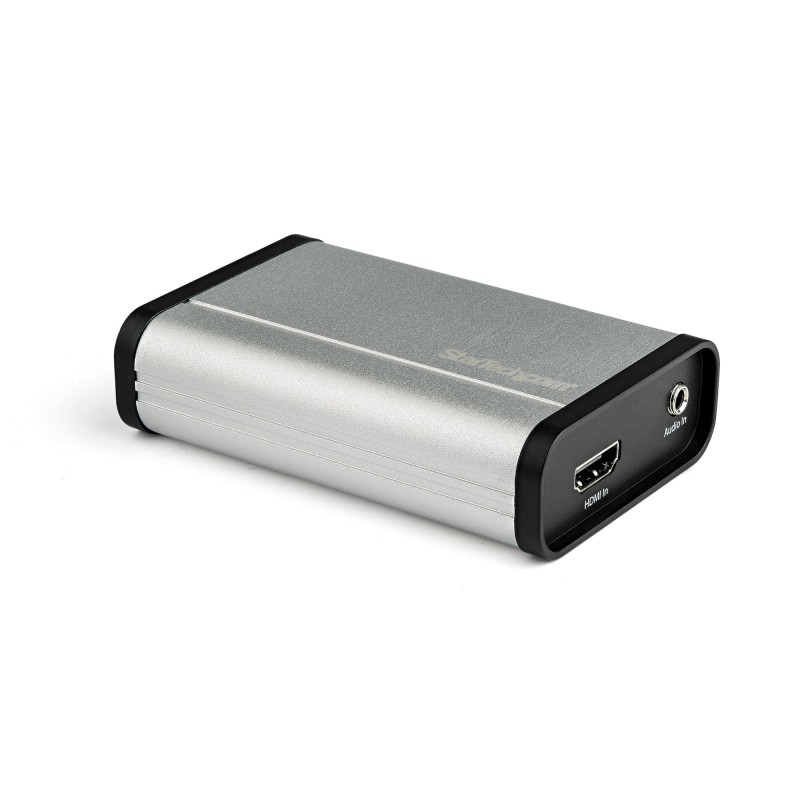

UVCHDCAP - UVCHDCAP

HDMI® Recorder| USB 3.0 | USB Video Class | USB-A Cable Included

This HDMI® to USB-C™ video capture device lets you record HDMI video to your USB-C, USB-A or Thunderbolt™ 3 computer.

Easy Setup, Easy Capture

For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that's natively supported by Mac, Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this recorder you're not limited to the included software; you can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.

Capture HD Video

Record 1080p video at 60fps (frames per second) from your Windows PC, gaming console, camera (and more) so you can save, share or edit your content. Capture meetings, presentations, conference calls and security footage directly to your computer.

Stream Your 1080p Content

Stream video over the web using Twitch™ or other third-party streaming platforms. With the included software or third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using third-party video streaming platforms.

Note: This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.

The StarTech.com Advantage


StarTech.com UVCHDCAP. Product color: Black, Silver, Host interface: USB 3.2 Gen 1 (3.1 Gen 1), Video capture resolution (max): 1920 x 1080 pixels. Supported resolutions: 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600, Maximum frame rate: 60 fps, Supported video modes: 1080p. USB connector type: USB Type-B, USB version: 3.2 Gen 1 (3.1 Gen 1). Power supply type: USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14...

Product color	Black, Silver
Internal	No
Host interface	USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)	1920 x 1080 pixels
Chipset	Mstar MST3363CNK-170
Supported resolutions	1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600
Maximum frame rate	60 fps
Supported video modes	1080p
Supported audio channels	2
USB port	Yes
USB connector type	USB Type-B
USB version	3.2 Gen 1 (3.1 Gen 1)
HDMI in	1
Number of HDMI outputs	1
Audio (L/R) in	1
Headphone outputs	0
S-Video inputs quantity	0
Composite video in	0
Component video (YPbPr/YCbCr) in	0
Firewire (IEEE 1394) ports	0
Power supply type	USB
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Compliance certificates	CE, RoHS
Width	2.36" (60 mm)
Depth	3.62" (92 mm)
Height	0.906" (23 mm)
Weight	3.03 oz (86 g)
Master (outer) case width	18.5" (470 mm)
Master (outer) case height	18.5" (470 mm)
Package weight	16.6 oz (470 g)
Package height	8.46" (215 mm)
Package width	18.5" (470 mm)
Package depth	8.46" (215 mm)
Cables included	HDMI, USB
User guide	Yes
Quantity per master (outer) case	48 pc(s)
Master (outer) case length	18.5" (470 mm)
Harmonized System (HS) code	85176990
Audio support	Yes
