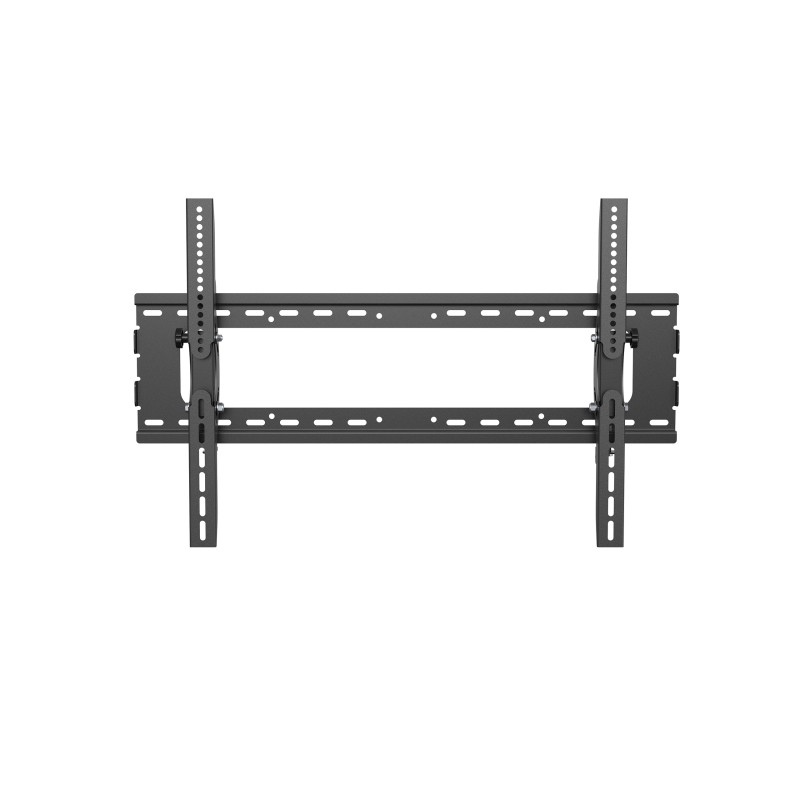

StarTech.com FLATPNLWALL, 32", 75", 2.95 x 2.95" (75 x 75 mm), 23.6 x 15.7" (600 x 400 mm), -15 - 15°, Black
| Number of displays supported | 1 |
| Maximum screen size | 75" |
| Mounting type | Wall |
| Maximum weight capacity | 165.3 lbs (75 kg) |
| Minimum VESA mount | 2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount | 23.6 x 15.7" (600 x 400 mm) |
| Minimum screen size | 32" |
| Panel mounting interface | 75 x 75,100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400 |
| Tilt angle range | -15 - 15° |
| Cable management | Yes |
| Distance to the wall (min) | 3.27" (8.3 cm) |
| Product color | Black |
| Compliance certificates | RoHS |
| Adapter bracket included | Yes |
| Number of adapter brackets included | 2 |
| Anchors included | Yes |
| Number of anchors included | 6 |
| Wrench included | Yes |
| Washers included | Yes |
| Wrench type | Hexagonal wrench |
| Number of washers included | 10 |
| Spacer included | Yes |
| Number of spacers included | 16 |
| Screws included | Yes |
| Number of screws | 26 |
| Manual | Yes |
| Mounting kit | Yes |
| Width | 3.27" (83 mm) |
| Depth | 31.9" (810 mm) |
| Depth (max) | 31.9" (81 cm) |
| Height | 19.7" (500 mm) |
| Weight | 8.38 lbs (3.8 kg) |
| Package width | 9.37" (238 mm) |
| Package depth | 32.9" (835 mm) |
| Package height | 3.5" (89 mm) |
| Package weight | 10.8 lbs (4.9 kg) |
| Master (outer) case width | 11" (280 mm) |
| Master (outer) case length | 33.6" (853 mm) |
| Master (outer) case height | 10" (254 mm) |
| Quantity per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 85299097 |
