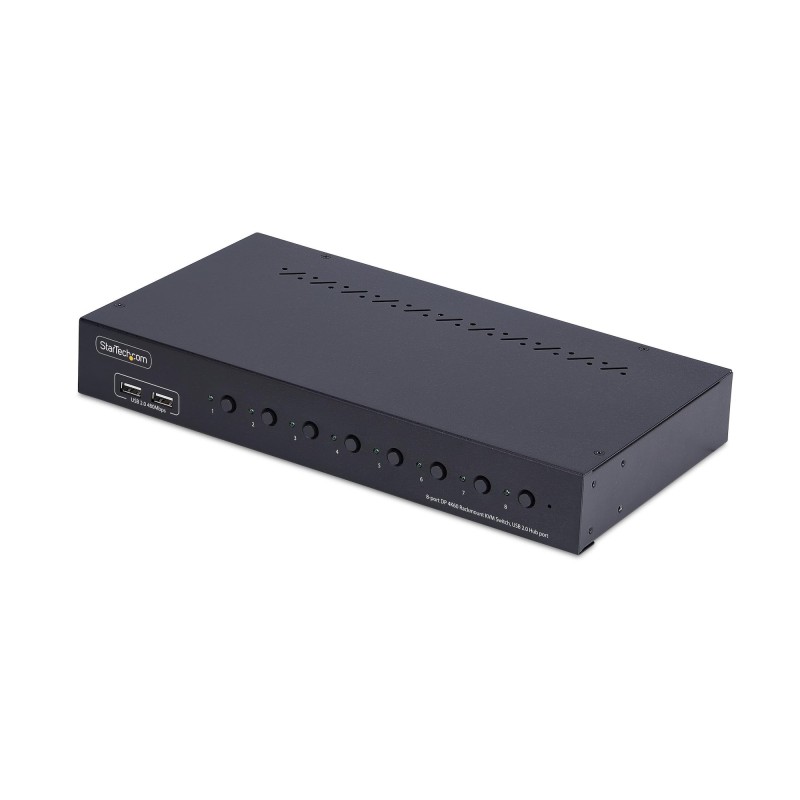

R8AD122-KVM-SWITCH - W129177419

Control up to eight USB and DisplayPort-enabled computers from a single keyboard, mouse, and 4K 60Hz DisplayPort monitor

The 4K 60Hz rackmount KVM switch allows switching between eight DisplayPort-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz DisplayPort 1.2 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.

No Drivers or Software

The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.

Multiple Switching Options

Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.

Rack Mount Kit Included

The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.

To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of DisplayPort, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage


StarTech.com R8AD122-KVM-SWITCH. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 0.48 Gbit/s. Product color: Black, Rack capacity: 1U, Housing material: Zinc. Power source: DC, Input voltage: 100 - 240 V, Input current: 1 A. Compliance certificates: Federal Communications Commission (FCC), Trade Agreements Act (TAA)

Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	3.5mm headphone, DisplayPort, USB A
DisplayPorts quantity	8
DisplayPort version	1.2
USB 2.0 Type-B ports quantity	8
Console USB ports quantity	4
Audio connections	Yes
Headphone outputs	1
Number of microphone inputs	8
DC-in jack	Yes
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Data transfer rate (max)	0.48 Gbit/s
Scan interval	10,20,30,40,50,60,70,80,90,100 s
Daisy chain	No
Audio channels	2.0
Rack mounting	Yes
Product color	Black
Rack capacity	1U
Housing material	Zinc
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Mean time between failures (MTBF)	73003 h
Built-in display	No
On Screen Display (OSD)	No
Power source	DC
Input voltage	100 - 240 V
Input current	1 A
Output voltage	12 V
Output current	3 A
Power consumption (typical)	36 W
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US
Compliance certificates	Federal Communications Commission (FCC), Trade Agreements Act (TAA)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Width	6.46" (164 mm)
Depth	11.8" (300 mm)
Height	1.73" (44 mm)
Weight	3.31 lbs (1.5 kg)
Package width	17.1" (435 mm)
Package depth	11.3" (288 mm)
Package height	2.76" (70 mm)
Package weight	5.07 lbs (2.3 kg)
Quick installation guide	Yes
Rack mount kit	Yes
Master (outer) case width	18.3" (466 mm)
Master (outer) case length	15.4" (390 mm)
Master (outer) case height	12.4" (316 mm)
Quantity per master (outer) case	5 pc(s)
Audio support	Yes
IP control	No
