4K HDMI Extender - Easily extend an Ultra-High-Definition (UHD) signal via a single Ethernet cable to achieve long-distance transmissions

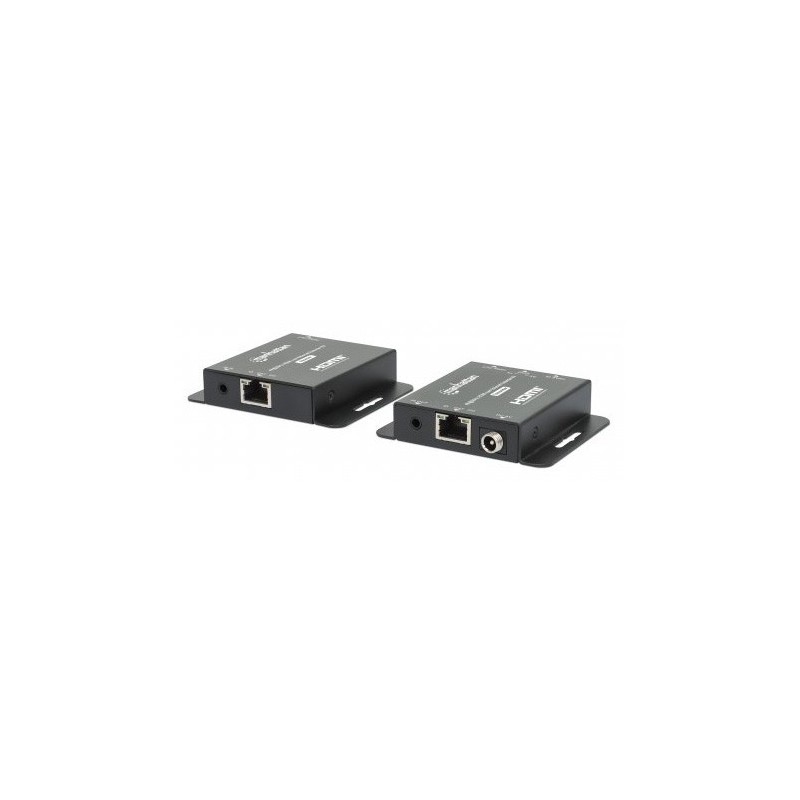

The Manhattan 4K HDMI over Ethernet Extender Kit lets you transmit an audio/video signal in 4K@30Hz (3840 × 2160) up to 40 m (164 ft.) or 1080p@60Hz up to 70 m (230 ft.) via a single RJ45 Cat6 Ethernet cable. The Kit provides reliable video and multichannel audio transmission from your streaming device, gaming console (PS4, PS4 Pro, PS5, Xbox Series X/S, Switch etc.), Blu-ray player, satellite receiver, PC, laptop, MacBook® or other HDMI device over longer distances than standard HDMI cables alone can achieve. The transmitter and receiver have additional 3.5 mm jacks for Infrared (IR) inputs that let you control the source or display at either end of the setup.

Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, home theater, conference rooms, business office and retail applications, the Manhattan 4K@30Hz HDMI over Ethernet Extender Kit is a cost-effective solution that boosts and extends an HDMI signal to where it's needed. Ethernet cabling - shielded or unshielded - has a higher range than HDMI cabling with in-line signal repeaters. When used with our Extender Kit, network cable delivers the clear, sharp and vivid picture that you've come to expect from HDMI cable.

Quality Construction and Easy Installation
HDCP 1.4 compliant with HDMI, the Manhattan 4K HDMI over Ethernet Extender Kit is tested to guarantee performance and reliability. It installs quickly without having to run software or install additional hardware. Built into the modules are mounting brackets that let you tidily install their metal housings on the wall or ceiling.

Only one power adapter needed thanks to Power over Cable (PoC)
Extend your HDMI signals to locations that lack power outlets. The included power adapter connects to the transmitter and powers the receiver through the connected Ethernet cable.

Manhattan 168397. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 2.72" (69 mm), Depth: 3.15" (80 mm), Height: 0.669" (17 mm). Package width: 2.72" (69 mm), Package depth: 3.15" (80 mm), Package height: 0.669" (17 mm)

Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	2755.9" (70 m)
EDID management	Yes
Supported video modes	480p, 720p, 1080i, 1080p
Bandwidth	10.2 Gbit/s
Bandwidth	340 MHz
HDCP	Yes
Material	Metal
HDCP version	1.4
Certification	CE FCC RoHS UKCA
Connectivity technology	Wired
RJ-45 output ports	2
Number of HDMI outputs	3
HDMI version	1.4
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output current	1 A
Power consumption (max)	1.86 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Width	2.72" (69 mm)
Depth	3.15" (80 mm)
Height	0.669" (17 mm)
Weight	9.24 oz (262 g)
Package width	2.72" (69 mm)
Package depth	3.15" (80 mm)
Package height	0.669" (17 mm)
Package weight	13.8 oz (390 g)
Package type	Box
Cables included	AC, IR
Manual	Yes
