MASFP1GBSXST - MASFP1GBSXST

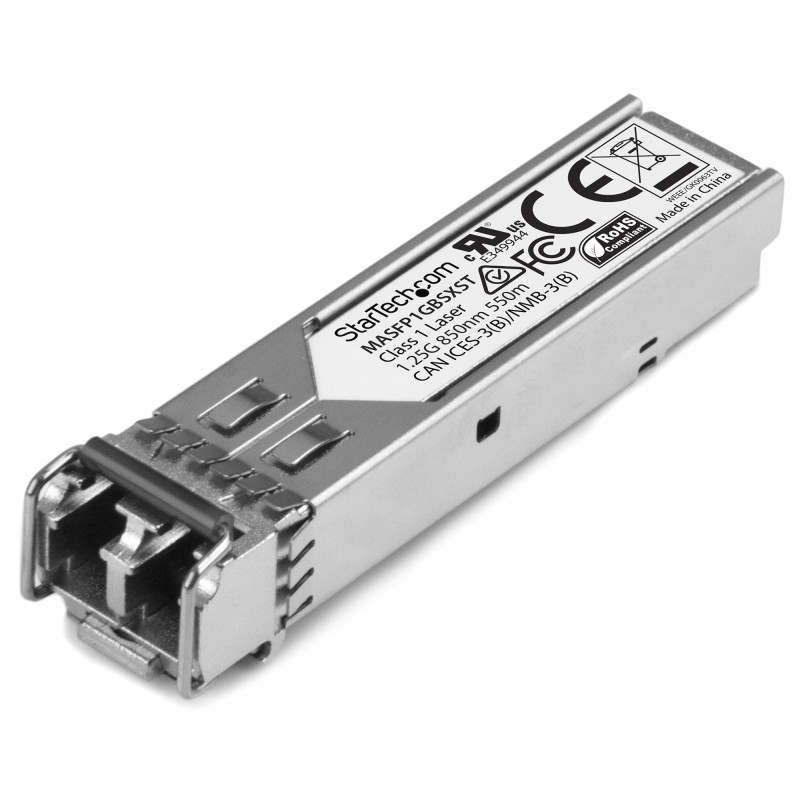

StarTech.com MASFP1GBSXST, Fiber optic, 1250 Mbit/s, SFP, LC, SX, 21653.5" (550 m)
Description
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550m (1804 ft)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
StarTech.com MASFP1GBSXST. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product color: Silver, Housing material: Aluminum, Mean time between failures (MTBF): 3381761 h. Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: CE, FCC, UR. Width: 0.539" (13.7 mm), Depth: 2.23" (56.6 mm), Height: 0.492" (12.5 mm)
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550m (1804 ft)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
StarTech.com MASFP1GBSXST. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product color: Silver, Housing material: Aluminum, Mean time between failures (MTBF): 3381761 h. Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: CE, FCC, UR. Width: 0.539" (13.7 mm), Depth: 2.23" (56.6 mm), Height: 0.492" (12.5 mm)
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 21653.5" (550 m) |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product color | Silver |
| Housing material | Aluminum |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3381761 h |
| Power consumption (typical) | 1 W |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 0.539" (13.7 mm) |
| Depth | 2.23" (56.6 mm) |
| Height | 0.492" (12.5 mm) |
| Weight | 0.494 oz (14 g) |
| Quantity per pack | 1 pc(s) |
| Package width | 4.69" (119 mm) |
| Package depth | 3.7" (94 mm) |
| Package height | 1.3" (33 mm) |
| Package weight | 1.48 oz (42 g) |
| Master (outer) case width | 10.1" (257 mm) |
| Master (outer) case length | 12" (305 mm) |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 7.87" (200 mm) |
| Quantity per master (outer) case | 100 pc(s) |
| Country of origin | China |
